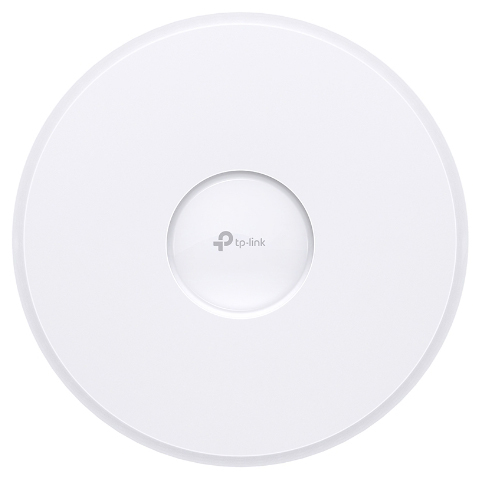

TP-LINK Omada EAP770
BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

TP-LINK Omada EAP770

TP-Link Products
TP-LINK Wireless Access Points
TP-LINK Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Get a Quote!



Stunning Performance, More Than Speed

Based on BE11000 tri-band Wi-Fi 7, Omada EAP770 shows high performance with 1× 10G Port and rich advanced functions.

  • BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
  • Low Latency and Interference: Preamble Puncturing, Multi-Link Operation, and Multi-RU ensure high performance of your network.
  • Advanced Functions: Supportscentralized management, mesh, and seamless roaming.

Tri-Band Wi-Fi 7 Speeds up to 11 Gbps

10G PoE++ Port

Omada Mesh and Seamless Roaming

Centralized Management



Easy-Mount Design

The Ceiling Mount EAP's elegant appearance and easy-mount design promote fast installation on any wall or ceiling surface, and allow it to blend in seamlessly with most interior decorating styles. The slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall junction box.

PoE Power Supply1

With IEEE 802.3af/at/bt PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.

Business-Class Hardware Design

Enterprise-class chipsets offer outstanding performance and support longer running time, higher client capacity and greater range. Dedicated high-power amplifiers, specialized antennas and professionally designed RF shields ensure excellent wireless performance.

Seamless Roaming2

802.11k and 802.11v seamless roaming provide seamless switching to the access point with optimal signal when moving between APs.


Omada Mesh technology enables wireless connectivity between access points for extended range, making wireless deployments more flexible and convenient.

Increased Efficiency with OFDMA4

The Wi-Fi 6 and above standards use OFDMA for more efficient channel use and reduced latency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

Advanced RF Management

MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications.

Easy Centralized Management

Configure and monitor hundreds of Omada EAPs with ease using the Omada controller.

1 PoE support varies by model. For detailed information, refer to the specifications.
2 Only certain devices support Seamless Roaming. For detailed information, refer to the specifications.
3 Only certain devices support Mesh. For detailed information, refer to the specifications.
4 Only 802.11ax and 802.11be devices support OFDMA.

Omada Solution:

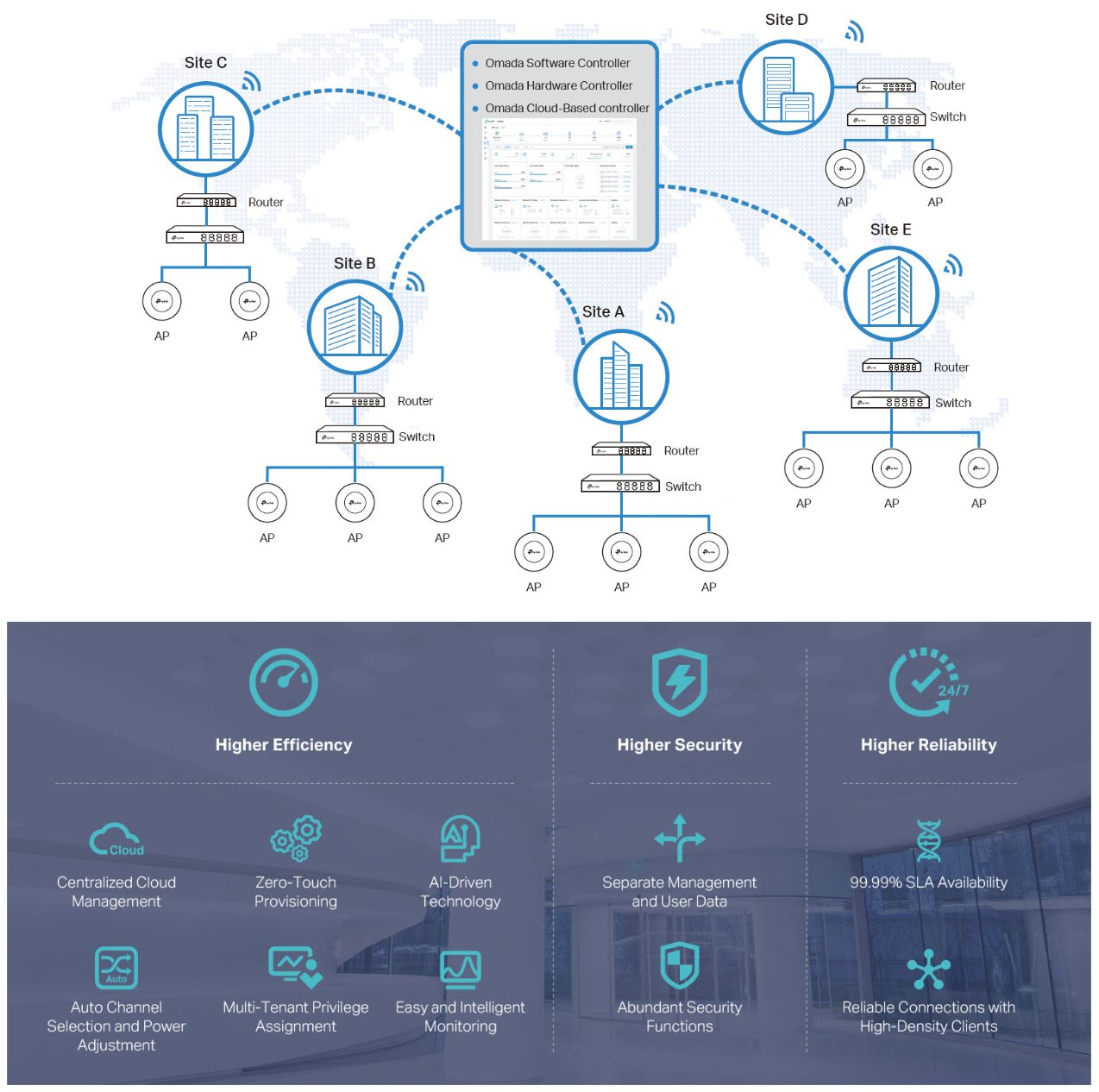

Software Defined Networking (SDN) with Cloud Access

Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

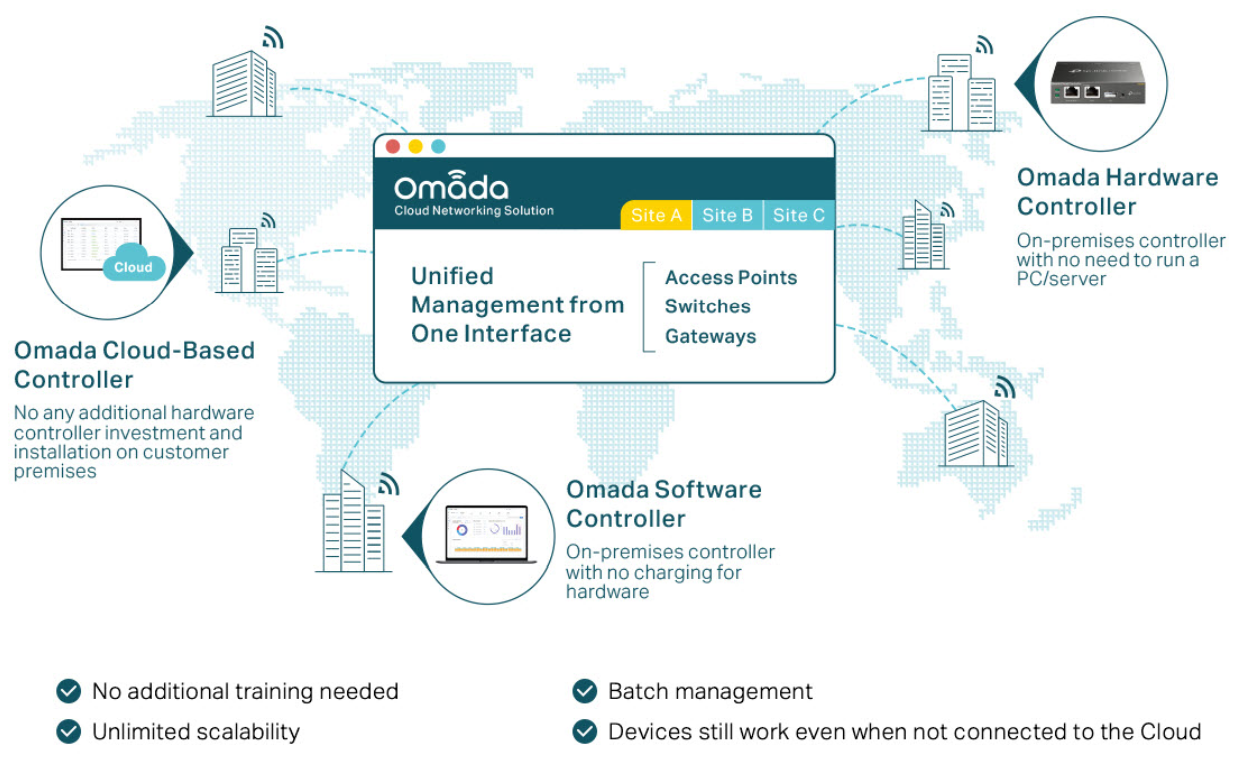

Hassle-Free Centralized Cloud Management

100% centralized cloud management of the whole network from different sites——all controlled from a single interface anywhere, anytime.

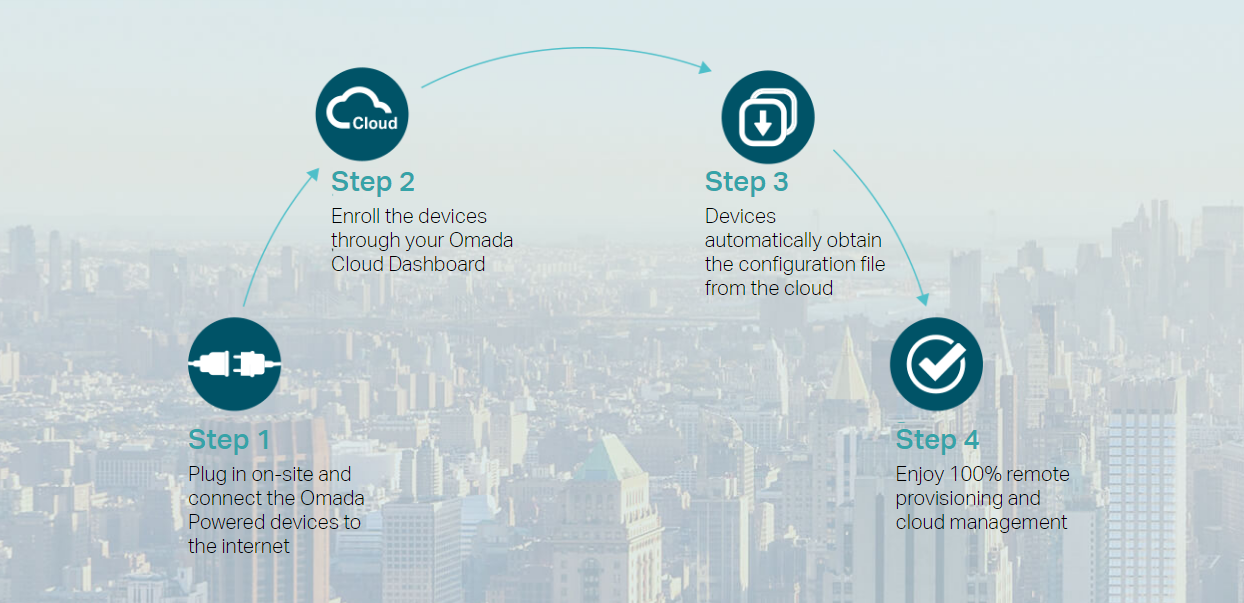

Zero-Touch Provisioning for Efficient Deployment

Omada zero-touch provisioning allows remotely deployment and configuration of multi-site networks, so there's no need to send out an engineer for on-site configuration. The Omada Cloud ensures efficient deployment with lower costs.

AI-Driven Technology for Stronger Performance and Easy Network Maintenance

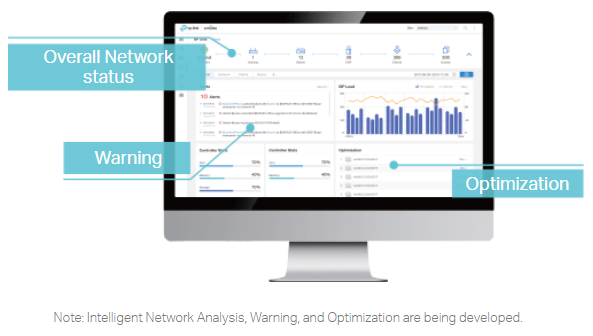

Intelligent Network Analysis, Warning, and Optimization

  • Analyzes potential network problems and sends optimization suggestions for higher network efficiency
  • Locates network faults, warns and notifies users, and generates solutions to reduce network risk

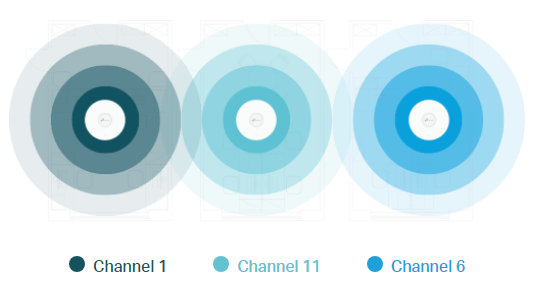

Auto Channel Selection and Power Adjustment

Provides powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

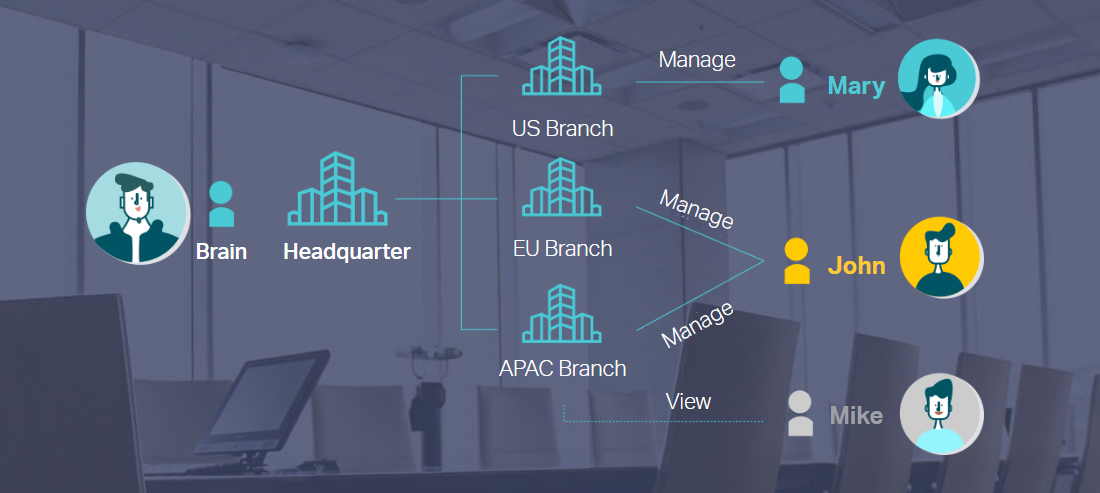

Assign Different Management Roles

Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.

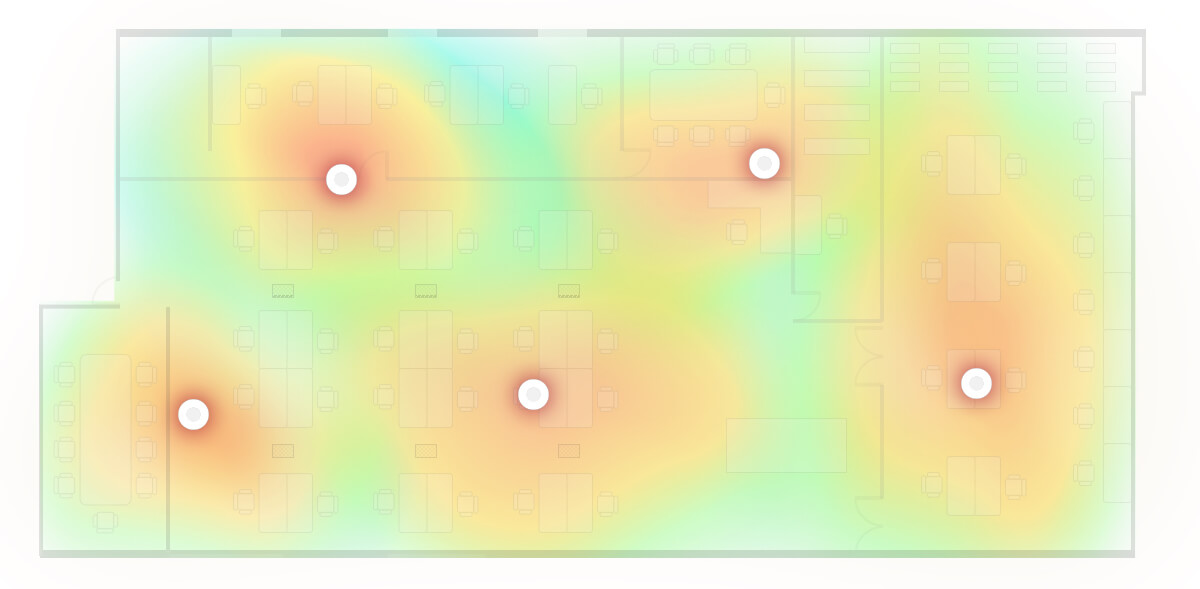

WiFi Heatmap Simulator

Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.

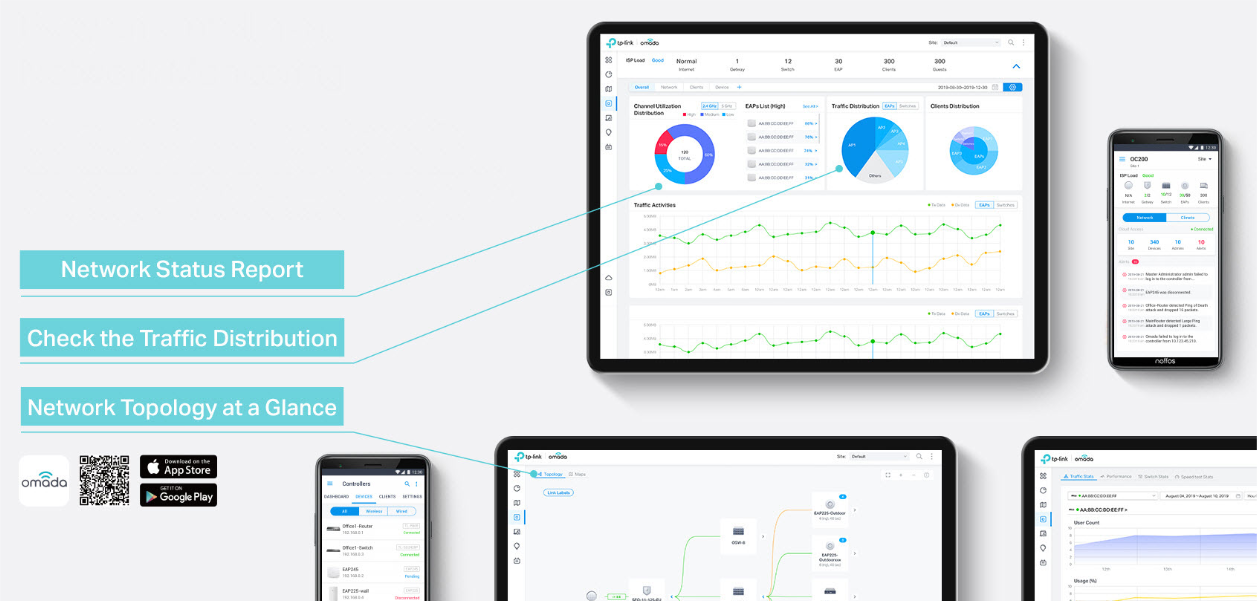

Easy and Intelligent Network Monitoring

The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

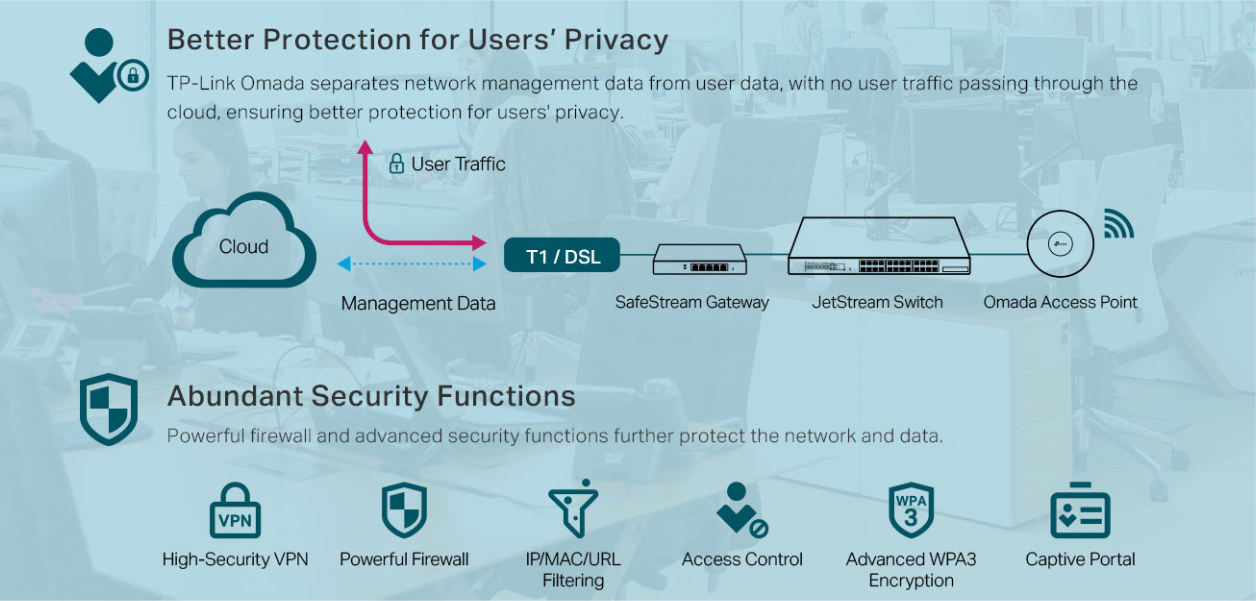

Comprehensive Protection for the Whole Network

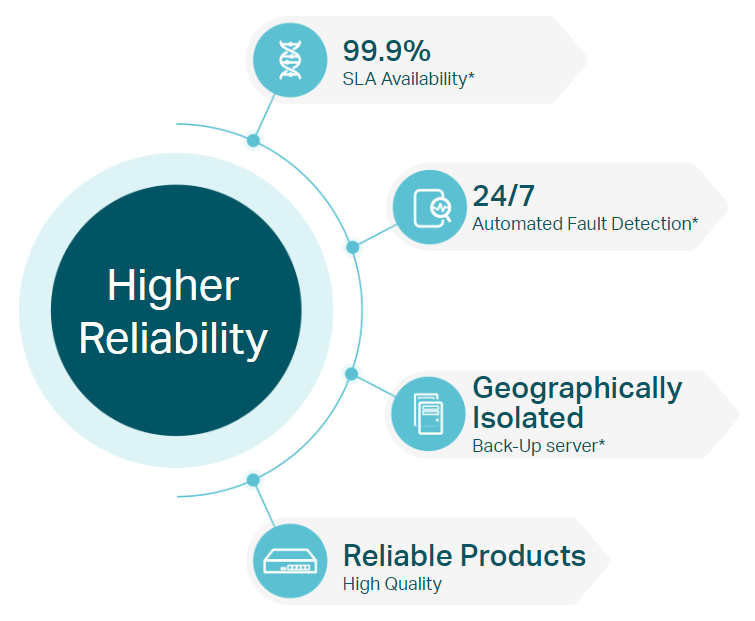

Multiple Factors Guarantee Higher Reliability

Higher reliability of cloud service is guaranteed with 99.9% SLA availability, 24/7 automated fault detection, geographically isolated back-up servers, and reliable product quality. Your network functions even if management traffic is interrupted.

Reliable Connections Even with High-Density Clients

Equipped with enterprise chipsets, dedicated antennas, advanced RF functions, auto channel selection, and power adjustment, Omada APs have high concurrency capacities for remarkable performance in high-density environments.


Omada EAP770 Specifications
Hardware Features
Speed 2.4 GHz: 574 Mbps, 5 GHz: 4320 Mbps, 6 GHz: 5760 Mbps
Interface 1× 10G Ethernet Port
Internal Antennas 2.4 GHz: 2 × 3.0 dBi, 5 GHz: 2 × 3.0 dBi, 6 GHz: 2 × 3.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
Wireless Features
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
  • 6 GHz: Up to 5760 Mbps
  • 5 GHz: Up to 4320 Mbps
  • 2.4 GHz: Up to 574 Mbps
Wireless Functions
  • MLO
  • 4K-QAM
  • Preamble Puncturing
  • HE320
  • Mesh
  • Automatic Channel Selection and Power Adjustment
  • BBS Coloring
  • Load Balance
  • Band Steering
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDS
  • Wireless Schedule
  • Reboot Schedule
Wireless Security
  • PPSK
  • Captive Portal Authentication
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise
Transmission Power
  • CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); < 23dBm (6 GHz, EIRP)
  • FCC:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz)
Software Features
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Captive Portal Authentication
  • Access Control
  • Maximum number of MAC Filter: 4000
  • Wireless Isolation between Clients
  • VLAN
  • Rogue AP Detection
  • Wireless Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller
  • LED ON/OFF Control
  • Management MAC Access Control
  • Web-based Management
  • SNMP: v1, v2c, v3
  • SSH
  • Restore & Backup
  • Firmware update via Web
  • NTP
  • System Log
  • Email Alerts
Physical & Environment
Power Supply 802.3bt PoE or 12V DC(DC Adapter Included)
Maximum Power Consumption Support Smart Power Comsuption Management
  • 25.94 W (802.3bt, full functionality);
  • 22.57 W (12/2.5A, full functionality);
  • 23.4 W (802.3at decrease 6GHz Power);
  • 10.1 W (802.3af, radio off, only main chip and LAN working)
Mounting Ceiling / Wall Mounting (Kits Included)
Dimensions (W x D x H) 220 x 220 x 32.5 mm
Net Weight 736g
Enclosure Material / Rack Material
  • Top cover: PC
  • Bottom shell: aluminum alloy
  • Mounting rack: stainless steel
Lightning Protection 2KV
Certifications CE, FCC, RoHS, IC
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Reception Sensitivity
2.4G 11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm
11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm
5G 11be EHT20MCS0:-94dBm; 11be EHTMCS13:-63dBm
11be EHT40MCS0:-90.5dBm; 11be EHT40MCS13:-60dBm
11be EHT80MCS0:-88dBm; 11be EHT80MCS13:-57.5dBm
11be EHT160MCS0:-85dBm; 11be EHT160MCS13:-55.5dBm
6G 11be EHT20MCS0:-93dBm; 11be EHTMCS13:-63dBm
11be EHT40MCS0:-90dBm; 11be EHT40MCS13:-60dBm
11be EHT80MCS0:-87.5dBm; 11be EHT80MCS13:-57.5dBm
11be EHT160MCS0:-84dBm; 11be EHT160MCS13:-55dBm
11be EHT320MCS0:-81.5dBm; 11be EHT320MCS0:-52.5dBm
Support Data Rates
802.11be 5G Band: 8Mbps to 4324Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/240)
6G Band: 8Mbps to 5765Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/320)
802.11ax 2G Band: 8Mbps to 574Mbps (MCS0—MCS11,NSS=1 to 2 HE20/40)
5G Band: 8Mbps to 2402Mbps (MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
6G Band: 8Mbps to 2402Mbps (MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac 6.5Mbps to 2166.7Mbps (MCS0—MCS11,NSS=1 to 2 VHT20/40/80/16
802.11n 6.5Mbps to 300Mbps (MCS0—MCS15,HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps

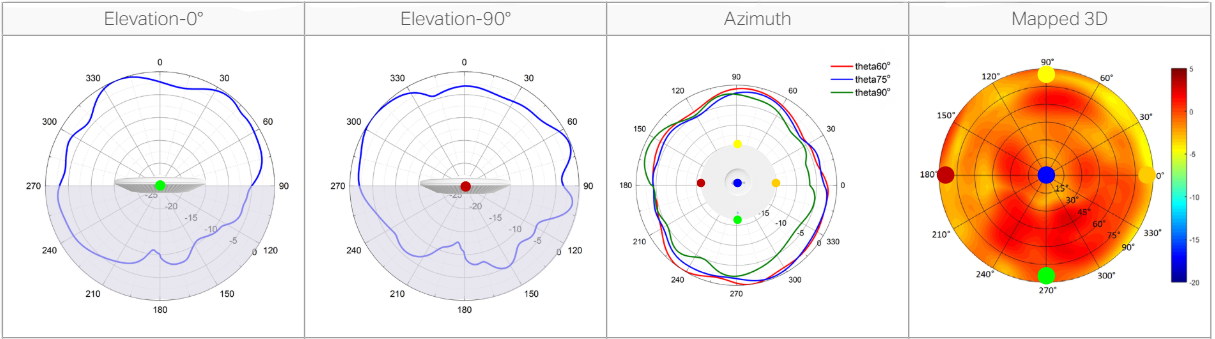

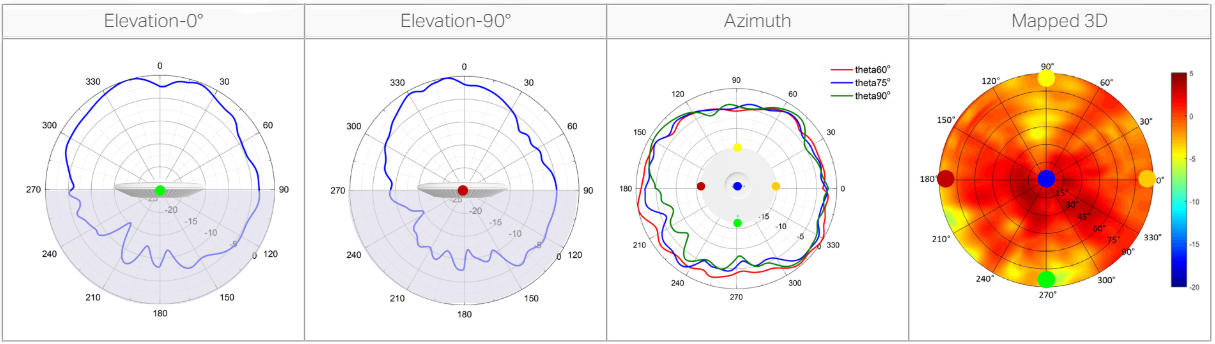

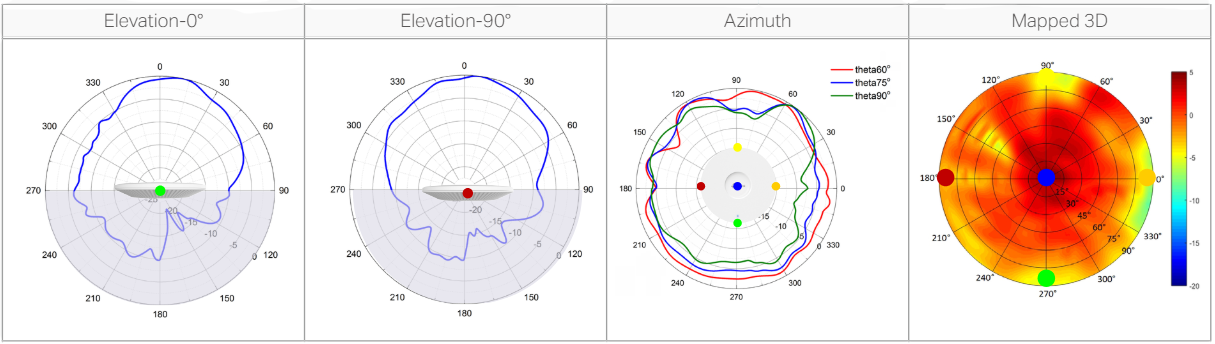

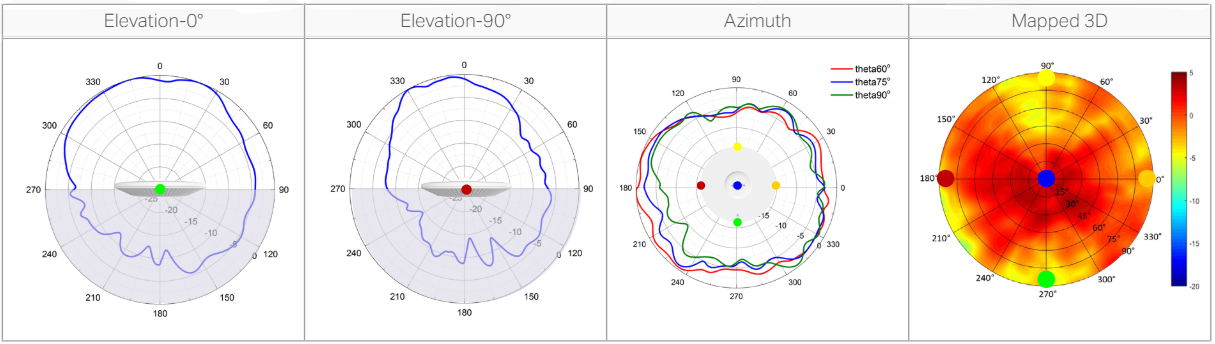

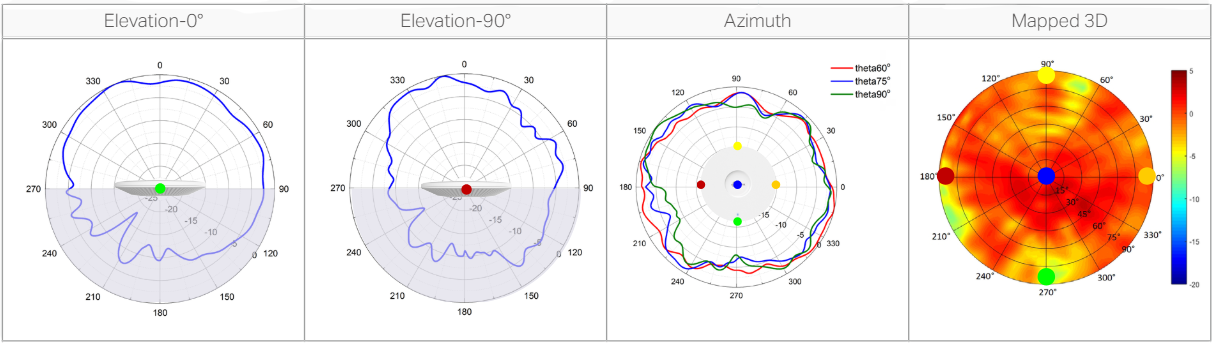

Antenna Radiation Patterns:

2.45 GHz

5.25 GHz

5.5 GHz

5.75 GHz

6.5 GHz


Download the TP-LINK Omada EAP770 Datasheet (PDF).
