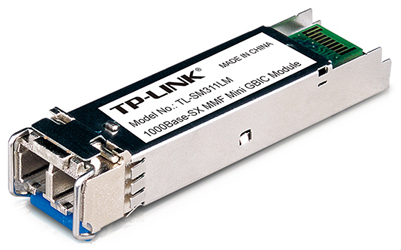

TP-LINK TL-SM311LM
1000base-BX Multi-mode SFP Module
TP-Link Products
TP-LINK Media Converter
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
- Supports full-duplex
- Plug-and-Play
- Supports Pull-or-Plug with power on switches
- Power: internal power from switches
- Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
| TL-SM311LM Specifications | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25 Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
