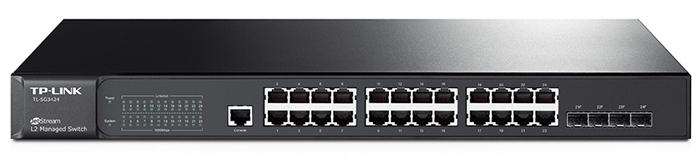

TP-LINK T2600G-28TS (TL-SG3424)
JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots


TP-Link Products
TP-LINK Switches
TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 Combo SFP Slots
Our Price: $169.75



TP-LINK JetStream Gigabit L2 managed switch T2600G-28TS provides 24 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-LINK JetStream 24-Port Gigabit L2 managed Switch T2600G-28TS provides you the ideal network solution.

  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • L2+ feature—Static Routing, helps route internal traffic for more efficient use of network resources
  • IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video application
  • IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
  • Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.

Secure Networking

TP-LINK JetStream L2 managed switch T2600G-28TS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS Features

To integrate voice, data and video service on one traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2 and L2+ features

T2600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL*, DHCPv6 Snooping*, IPv6 Interface*, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

IPv6 Support

TL-SG3424 supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery. TL-SG3424 is certified IPv6 Ready Logo, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.


The T2600G-52TS provide 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improving monitor and troubleshoot Ethernet networks, help facilitate network management.

Enterprise Level Management Features

T2600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

*This feature will be available in the latest firmware.


L2 and L2+ Features

  • Static routing
  • L2PT*
  • Link Aggregation Control Protocol (LACP)
  • IGMP Snooping
  • Loopback Detection

Quality of Service

  • Support IEEE 802.1P
  • 8 priority queues
  • DSCP QoS
  • Rate limit feature

Security Strategies

  • IP-MAC-Port Binding
  • Access Control List (L2~L4 ACL)
  • AAA*
  • 802.1x and RADIUS Authentication
  • Support DoS defend
  • Port Security
  • SSL and SSH encryptions

IPv6 Support

  • Dual IPv4/IPv6 Stack
  • MLD Snooping
  • PMTU Discovery
  • IPv6 Neighbor Discovery
  • IPv6 ACL*
  • DHCPv6 Snooping*
  • IPv6 Interface*


  • 802.3ah Ethernet Link OAM
  • Device Link Detect Protocol (DLDP)


  • Web-based GUI
  • Command Line Interface
  • Telnet
  • SNMP v1/v2c/v3
  • RMON (1,2,3,9 group)
  • Dual Image
  • DHCP Server*
  • DHCP Relay*
  • sFlow*

*This feature will be available in the latest firmware.


T2600G-28TS (TL-SG3424) Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
  • 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 100/1000Mbps SFP Slots
  • 1 RJ45 Console Port
  • 1 Micro-USB Console Port
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 1000BASE-X: MMF, SMF
Fan Quantity Fanless
Dimensions ( W x D x H ) 17.32 x 8.7 x 1.73 in. (440 x 220 x 44 mm)
19-inch Rack mount Steel Case, 1U Height
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 19.15W (220V/50Hz)
Bandwidth/Backplane 56 Gbps
MAC Address Table 16K
Packet Buffer Memory 41.67 Mpps
Jumbo Frame 9216 Bytes
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Quick Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Software Features:

L2 Switching Features

  • Link Aggregation
    • Support static link aggregation
    • Support 802.3ad LACP
    • Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol (STP)
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1s Multiple Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree Protocol
    • STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Loopback Detection
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Flow-Based
    • Tx/Rx/Both

L2 Multicast

  • Supports 1000(IPv4,IPv6) IGMP groups
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • IGMP Fast Leave
    • Multicast VLAN
    • IGMP Snooping Querier
    • IGMP Authentication
    • Limited IP Multicast(256 proles and 16 entries per prole)
    • Static Multicast
  • MLD Snooping
    • MLD v1/v2 Snooping
    • MLD Snooping Querier
    • Fast Leave
    • Limited IP Multicast(256 proles and 16 entries per prole)
    • Static Multicast

L3 Features

  • 16 IP Interfaces
    • supports ipv4 interface
    • supports ipv6 interface
  • Proxy ARP
  • Static Routing
    • 48 static routes


  • VLAN Group
    • Max. 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN - 256 Groups
  • Protocol VLAN
  • Private VLAN
  • GVRP
  • VLAN VPN(QinQ)
    • Port-Based QinQ
    • Selective QinQ
  • Voice VLAN

Quality of Service (QoS)

  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Queue scheduling
    • SP(Strict Priority)
    • WRR(Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control
  • Port/Flow based Rating Limiting
  • Smoother Performance
  • Actions for flows
    • Mirror(to supported interface)
    • Redirect(to supported interface)
    • Rate Limit - QoS Remark


  • Supports up to 300 entries(up to 600 by Access Template)
  • Time-based ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • EtherType
  • Standard IP ACL
    • Source IP
    • Destination IP
  • Extended IP ACL
    • Source IP
    • Destination IP
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP Port
  • Combined ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • EtherType
    • User Priority
    • Source IP
    • Destination IP
  • IPv6 ACL
  • ACL apply to Port/VLAN


  • IP-MAC-Port Binding
  • DoS Defend
  • Dynamic ARP Inspection
  • IP Source Guard
  • Static/Dynamic Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode
  • 802.1X
    • Port based authentication
    • MAC(Host) based authentication
    • Guest VLAN
    • Support Radius authentication and accountability
  • AAA*(including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS1.0
  • Secure Command Line Interface(CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control


  • 802.3ah Ethernet Link OAM
  • Device Link Detect Protocol(DLDP)


  • Web-based GUI
  • Command Line Interface(CLI) through console port, telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • sFlow
  • PPPoE Circuit ID
  • DHCP/BOOTP Client
  • DHCP Snooping
  • DHCP Option82
  • DHCP Relay
  • DHCP Server
  • 802.1ab LLDP/LLDP-MED
  • Dual Image
  • CPU Monitoring
  • Cable Diagnostics
  • Access Control
  • Password Recovery
  • SNTP
  • System Log

IPv6 Support

  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery(MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • DHCPv6 Relay
  • DHCPv6 Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
    • DHCPv6 Client
    • Ping6
    • Tracert6
    • Telnet(v6)
    • IPv6 SNMP
    • IPv6 SSH
    • IPv6 SSL
    • Http/Https
    • IPv6 TFTP


  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-LINK private MIBs


Download the TP-LINK T2600G Series Switch Datasheet (PDF).
