2.4GHz 150Mbps Outdoor Wireless Access Point


Sorry, this product is no longer available, Please contact us for a replacement.



TP-LINK High Power Wireless Access Point TL-WA7210N is dedicated to WISP CPE solutions and long distance wireless network solutions. It features up to 500mw wireless transmission power and has a built-in 12dBi dual-polarized antenna which provides an ecient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers.

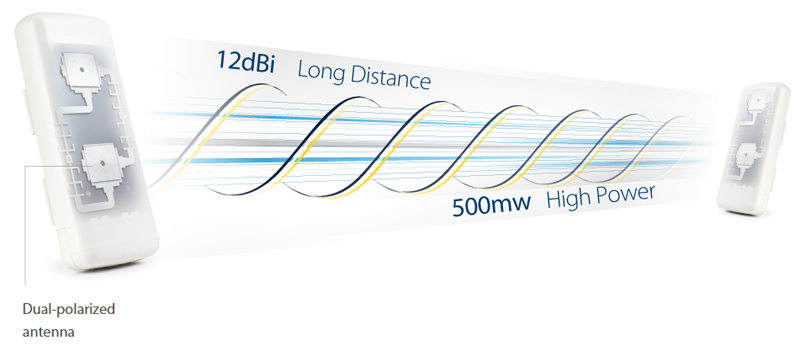

High Transmission Capability

With up to 500mw wireless transmission power and a 12dBi dual-polarized high gain antenna, the TL-WA7210N can produce and pick up a powerful and stable signal for a wireless connection ranging multiple kilometers.

High Transmission Capability

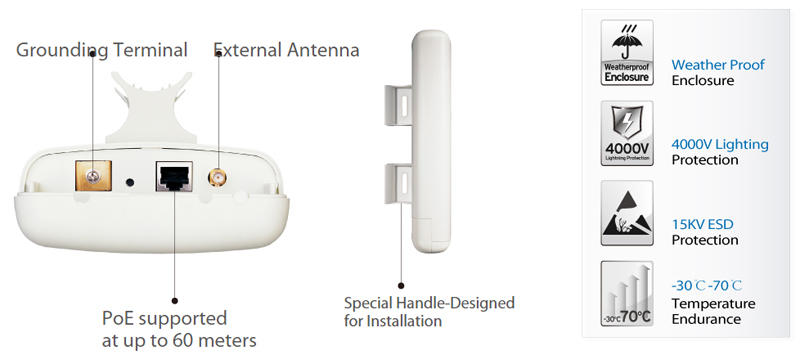

Professional Outdoor Solution

TL-WA7210N features a weatherproof enclosure and special protection against ESD and lightning. It supports passive Power over Ethernet (PoE), making it a versatile outdoor networking solution.

Professional Outdoor Solution

Intelligent Management Tools

  • Tool 1: Antenna Alignment
    Users can use the antenna alignment tool to adjust the direction of their APs using a live signal strength meter to judge which direction is best making setup that much simpler.
  • Tool 2: Distance Setting
    With the AP’s ACK timeout tool able to adjust the distance between two APs, it allows users to set a specific distance in order to establish the most robust wireless connection possible.
  • Tool 3: Ping Watch Dog
    Ping Watch Dog enables users to maintain the ping command to check the quality of the wireless link and can reboot the remote AP if the wireless signal becomes worse or disconnects.


  • 12dBi dual-polarized directional antenna boosts wireless range
  • Dedicated power amplifier and low noise amplifier improve radio performance
  • Up to 500mw power for longer distance transmission
  • Weatherproof enclosure, 4KV lightning protection, grounding terminal integrated and 15KV ESD protection
  • Complies with IEEE 802.11b/g/n, wireless speed up to 150Mbps
  • Supports AP Client Router (WISP Client), AP Router and AP operation mode
  • Up to 60 meters (200 feet) of flexible deployment with included passive Power over Ethernet Injector
  • Provides external RP-SMA connector for higher gain antenna upgrade
  • Supports Antenna Alignment , Distance Setting, Ping Watch Dog and Wireless Speed Test

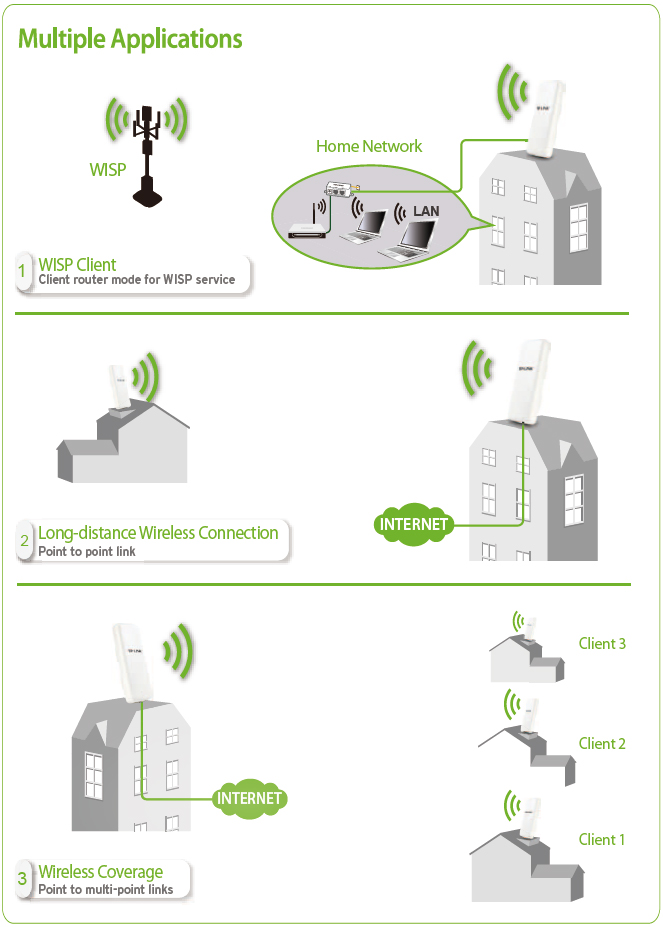

Multiple Applications


TL-WA7210N Specifications
Hardware Features
  • 1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)
  • 1 External Reverse SMA Connector
  • 1 Grounding Terminal
Button Reset Button
Antenna Type 12dBi Dual-Polarized Directional Antenna
External Power Supply 12VDC / 1.0A, Passvie Power over Ethernet (Supported Ethernet Cable Length > 60 meters)
Wireless Standards IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
Dimensions (W x D x H) 10.4 × 4.7 × 3.2 in. (265x120x83mm)
Antenna Beamwidth
  • Horizontal: 60°
  • Vertical: 30°
  • 15KV ESD Protection
  • 4000V Lightning Protection
  • Grounding Terminal Integrated
Wireless Features
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n: Up to 150Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Wireless Modes
  • AP Router Mode
  • AP Client Router Mode (WISP Client)
  • AP / Client / Bridge / Repeater Mode
Wireless Functions WDS Bridge, Wireless Statistics
Wireless Security
  • SSID Enable/Disable
  • MAC Address Filter
  • 64/128/152-bit WEP Encryption
  • WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Advanced Functions Provides 4-level signal LED indicator
Transmission Power
  • <20dBm (EIRP, For countries using CE Standards)
  • <27dBm (Peak Output Power, For countries using FCC Standards)
Certification CE, FCC, RoHS
Package Contents
  • Outdoor Wireless Access Point
  • Power Supply Unit
  • PoE Injector
  • Pole Mounting Kits
  • Resource CD
  • Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: -30°C~70°C (-22°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

RF Performance:

802.11g 802.11n
Data Rates Rx Sensitivity Data Rates Rx Sensitivity
6Mbps -95dBm 13.5Mbps -95dBm
12Mbps -92dBm 27Mbps -92dBm
36Mbps -85dBm 40.5Mbps -91dBm
48Mbps -81dBm 54Mbps -87dBm
54Mbps -79dBm 81Mbps -84dBm
    108Mbps -80dBm
    121.5Mbps -78dBm
    150Mbps -76dBm

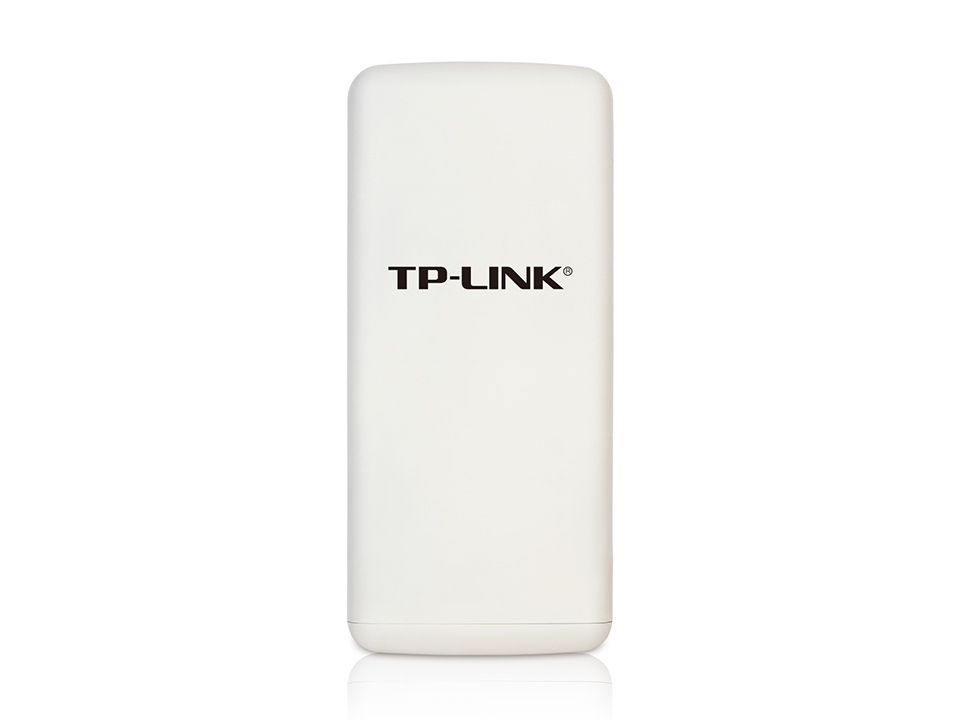

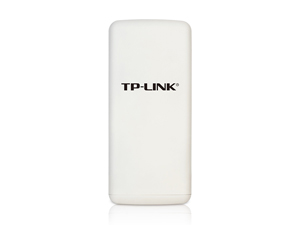

Front View
Front View

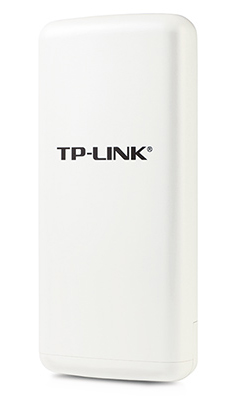

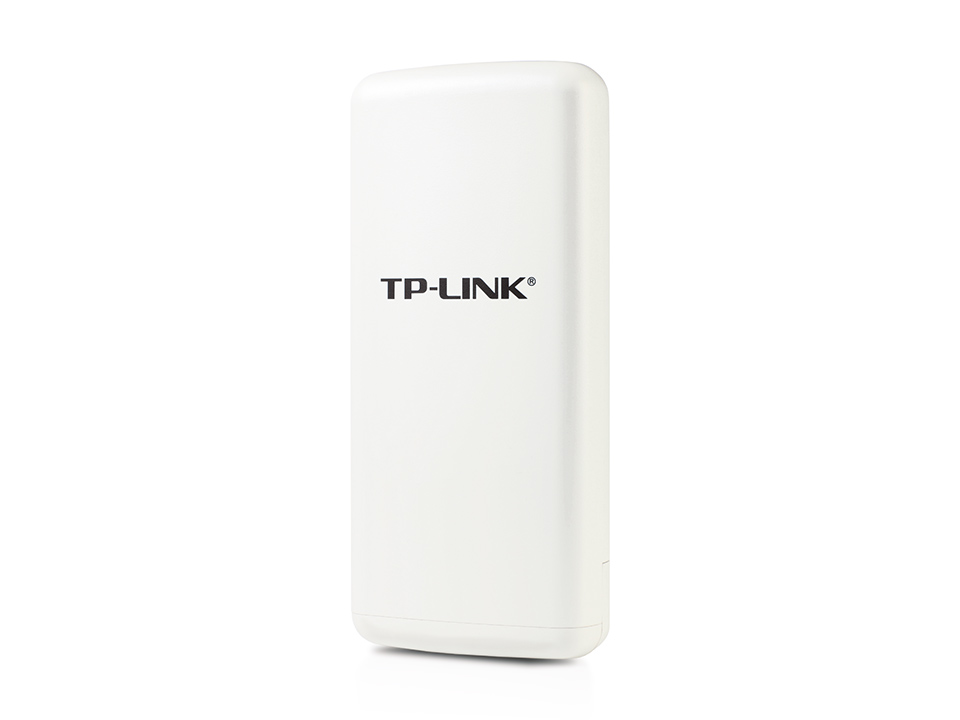

Right Angle View
Right Angle View

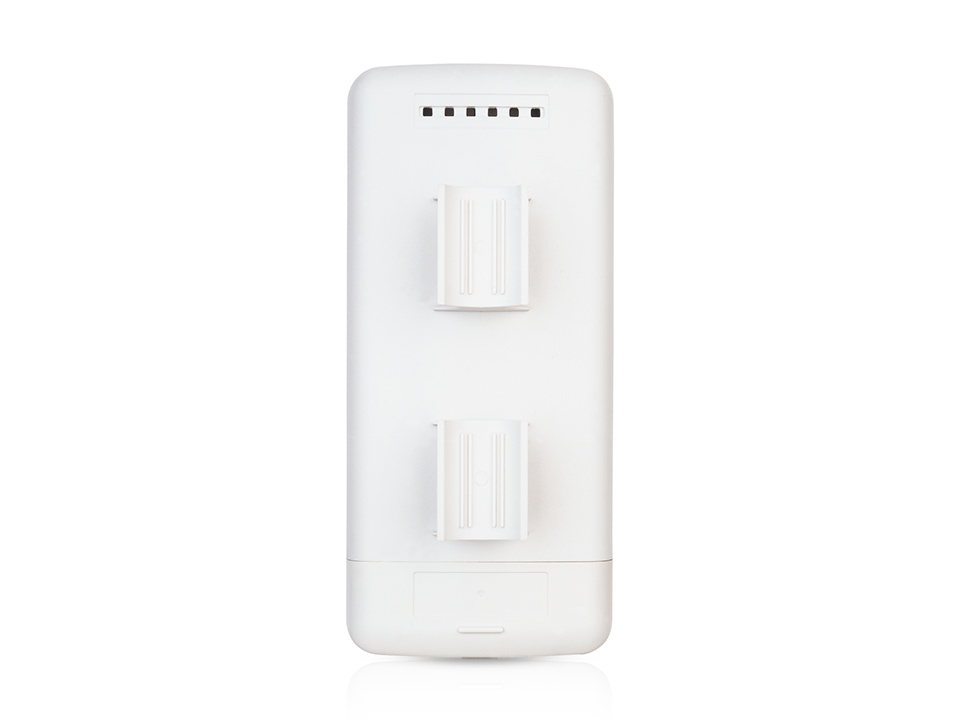

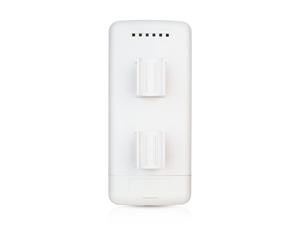

Rear View
Rear View

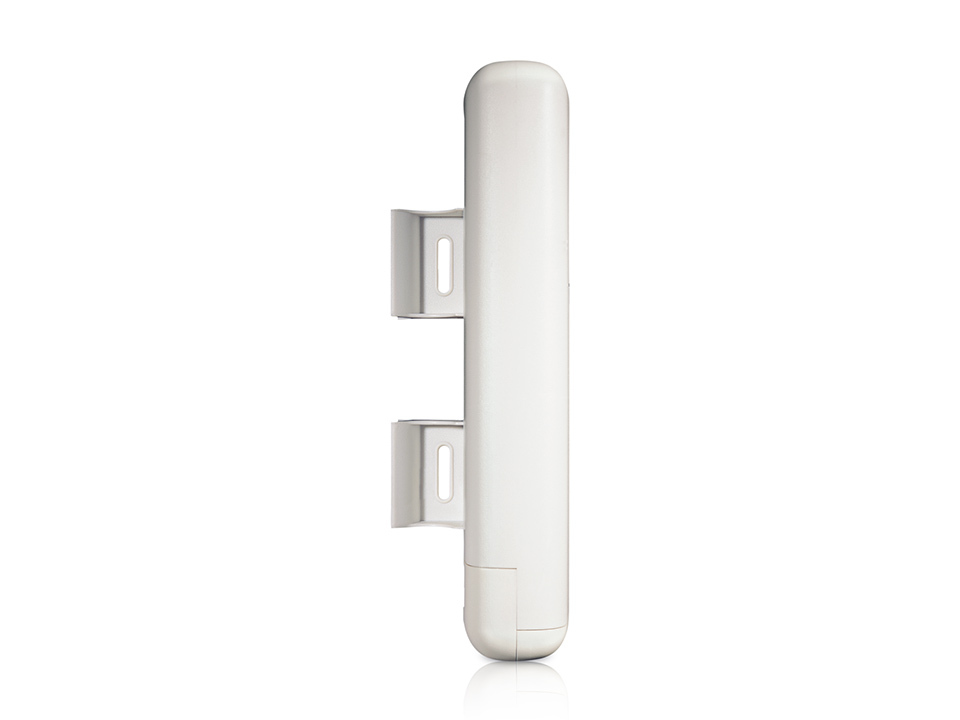

Side View
Side View

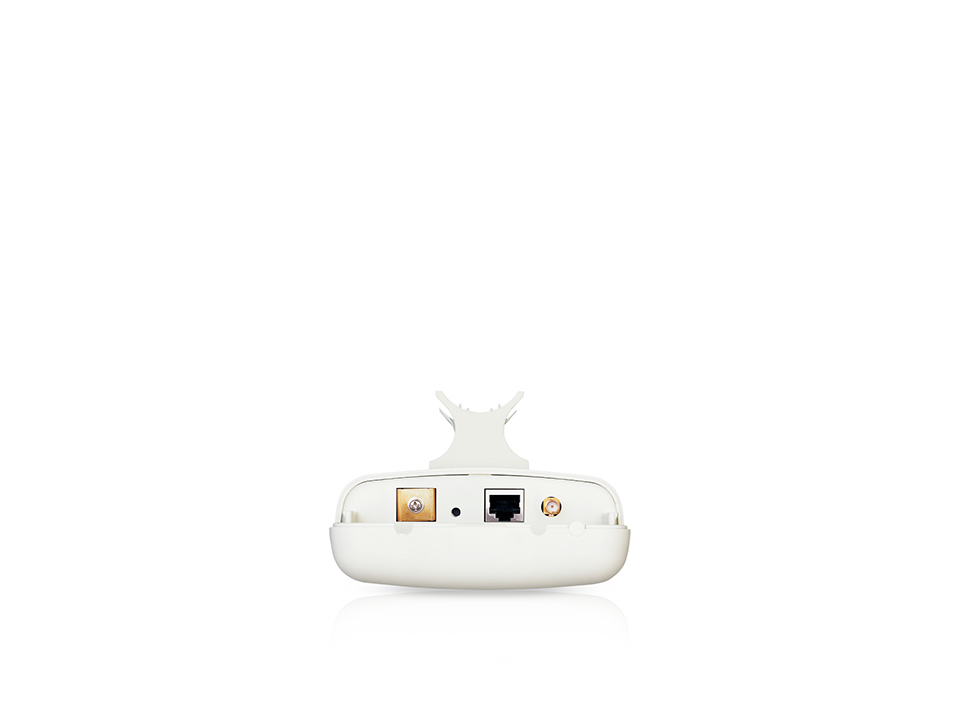

Bottom View
Bottom View


  CPE520 CPE510 CPE220 CPE210 TL-WA7510N TL-WA7210N
Wireless Performance
Wireless Speed 5GHz 300Mbps 5GHz 300Mbps 2.4GHz 300Mbps 2.4GHz 300Mbps 5GHz 150Mbps 2.4GHz 150Mbps
Transmit Power 27dBm 23dBm 30dBm 27dBm 27dBm 27dBm
Antenna 16dBi 13dBi 12dBi 9dBi 15dBi 12dBi
MIMO - -
Coverage Range 20km+ 15km+ 13km+ 5km+ 5km+ 5km+
Compatibility 802.11a/n 802.11a/n 802.11b/g/n 802.11b/g/n 802.11a/n 802.11b/g/n
External Antenna Interface - - - - 1 x RP-SMA 1 x RP-SMA
Weatherproof Enclosure  (IPX5)  (IPX5)  (IPX5)  (IPX5)
Dual Ethernet Ports - -
PoE Passthrough - -
Grounding Terminal
Lightning Protection over Ethernet Cable - -
ESD Protection 15kV 15kV 15kV 15kV 15kV 15kV
Lightning Protection 6kV 6kV 6kV 6kV 4kV 4kV
Power Supply 24V Passive PoE Adapter 24V Passive PoE Adapter 24V Passive PoE Adapter 24V Passive PoE Adapter 12V Power Adapter + Passive PoE Injector 12V Power Adapter + Passive PoE Injector
Operation Modes AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode
Channel Bandwidth 5/10/20/40MHz 5/10/20/40MHz 5/10/20/40MHz 5/10/20/40MHz 20/40MHz 20/40MHz
Transmit Power Control Stepping 1dBm Stepping 1dBm Stepping 1dBm Stepping 1dBm Stepping 3dBm Stepping 3dBm
Antenna Alignment - -
Throughtput Monitors - -
Spectrum Analyzer - -
Iperf Speed Test Tool - -
Pharos Control Supported
(Central Network Management Application)
- -
