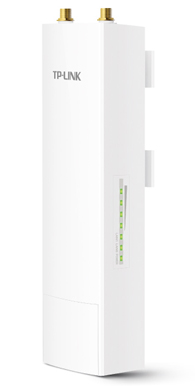

TP-LINK WBS510
5GHz 300Mbps Outdoor Wireless Base Station


TP-LINK WBS510

TP-LINK Wireless Access Points
TP-LINK 5GHz 300Mbps Outdoor Wireless Base Station
#WBS510
Contact us for pricing!

More pricing below, click here!

Overview:

TP-LINK’s 5GHz 300Mbps Outdoor Wireless Base Station is specifically designed to provide an effective solution for outdoor wireless networking applications. With its centralized management platform and high degree of flexibility, it is the ideal choice for providing point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless Base Station pairs professional performance with user-friendly design, making it the perfect solution for both business and home users.

Long-Distance Wireless Data Transmission

Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base Station to integrate seamlessly with TP-LINK's line of sector and dish antennas. Where long- distance wireless data transmission is necessary, the WBS510 can be paired with a TP-LINK dish antenna, allowing it to transfer data over distances of up to 50 km.

Easy Installation, No Tools Needed

Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas to provide efficient PtP and PtMP data transmission. Pharos Base Stations also feature a built-in mount, meaning that no tools are required for installation.

Enterprise Level Hardware Design

To maximize performance and stabilize long distance wireless transmission, the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high gain-antennas, and high-power amplifiers. In addition to excellent internal components, Pharos Series Base Stations also feature specially designed, weatherproof enclosures and PoE capability. This industry-leading hardware ensures that Pharos Series Base Stations can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).

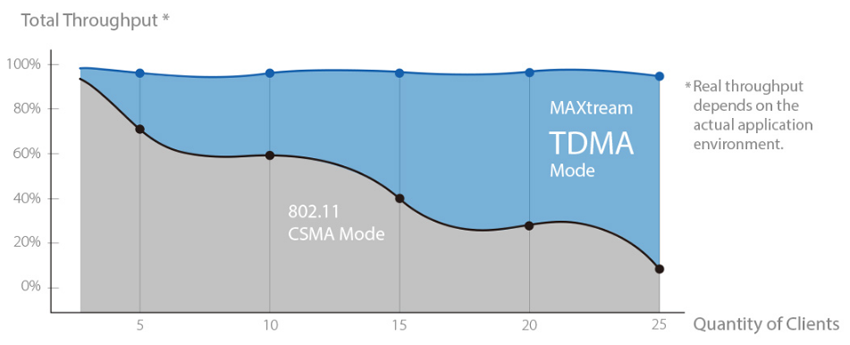

MAXtream TDMA Technology – Guaranteed Throughput

As networks grow in scale, base stations and other devices often compete for access to a single data connection, resulting in diminished throughput and a poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.

MAXtream TDMA Technology – Guaranteed Throughput

Pharos Control - Centralized Management System

Pharos Base Stations are equipped with Pharos Control, a centralized management software that helps users easily manage all network devices from a single PC. Pharos Control provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device firmware, or perform other network maintenance tasks.

Pharos Control - Centralized Management System

PharOS

PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform fine-tune calibration and access more advanced configuration options.

PharOS

TP-LINK Pharos Provides High Performance Solutions

TP-LINK Pharos series products are dedicated to provide high performance solutions for outdoor wireless networking  applications. Nowadays Pharos includes a variety of CPE and Base station devices, carrier class antennas, and a centralized management application.

Features:

  • Broad operating frequency channels ensure less wireless interference
  • Wireless N speed up to 300Mbps
  • Selectable bandwidth of 5/10/20/40MHz
  • Adjustable transmission power from 0 to 27dBm/500mW
  • 2 RP-SMA connectors for external MIMO antenna
  • Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
  • 1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
  • TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
  • Centralized Management System – Pharos Control
  • Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
  • Weatherproof enclosure, 15kV ESD and 6KV lightning protection

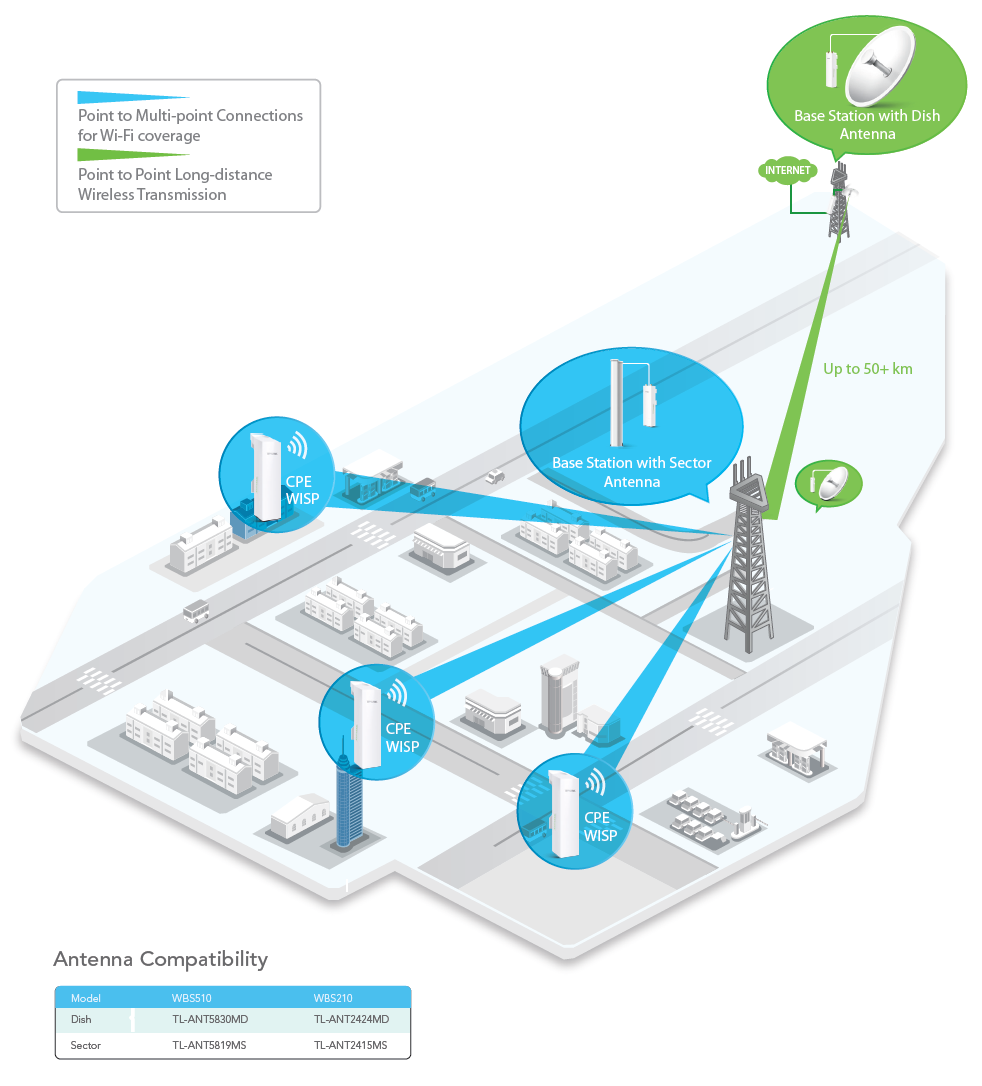

Typical Applications:

TP-LINK’s Outdoor Wireless Base Station is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is exible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.

Typical Applications

Specifications:


WBS510 Specifications
Hardware Features
Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface
  • 1 10/100Mbps Shielded Ethernet Port
  • 1 10/100Mbps Shielded Ethernet Port (LAN1)
  • 2 RP-SMA
  • 1 Grounding Terminal
  • 1 Reset Button
Power Supply
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
Dimensions (W x D x H) 198 x 75 x 40 mm
Protection
  • 15KV ESD Protection
  • 6000V Lightning Protection
Enclosure
  • Outdoor ASA stabilized plastic material
  • IP65 water and dust proof Certification
Wireless Features
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operation frequency may vary depending on the limitaion of the countries or regions in which the device is used.
Transmission Power 27dBm/500mW (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Software Features
Operating Modes
  • AP / Client / Bridge /Repeater
  • AP Router Mode / AP Client Router(WISP Client) Mode
Network Configuration
  • WAN: Static/Dynamic/PPPoE/L2TP/PPTP
  • LAN: Static/Dynamic/Dynamic/DHCP
  • Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
  • Security: SPI Firewall/Ping Forbidden/VPN/DOS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • 802.11a/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • > Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
System-level Optimizations
  • 802.11a/n Tx beamforming technology
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog
Others
Certification CE, FCC, RoHS, IP65
Package Contents
  • Outdoor Wireless Base Station
  • 24V 1A Passive PoE Adapter
  • Pole Mounting Kit
  • AC Power Cord
  • Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -30°C~70°C (-22°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
POE Adapter Features
Dimensions(WxDxH) 110 x 57 x 33.5mm
Input Voltage 100VAC-240VAC@50Hz-60Hz
Input Current 0.8A Max @ 100VAC
Output Voltage 24VDC (+4,5pins; -7,8pins)
Output Current 1.0A Max (Support up to 60m Power over Ethernet)
Efficiency >80%
Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100/1000Mbps Shielded Ethernet Port (Data)
Power LED
  • 0~0.8A: Green
  • 0.8A~1.0A: Red
Certications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar

Views:

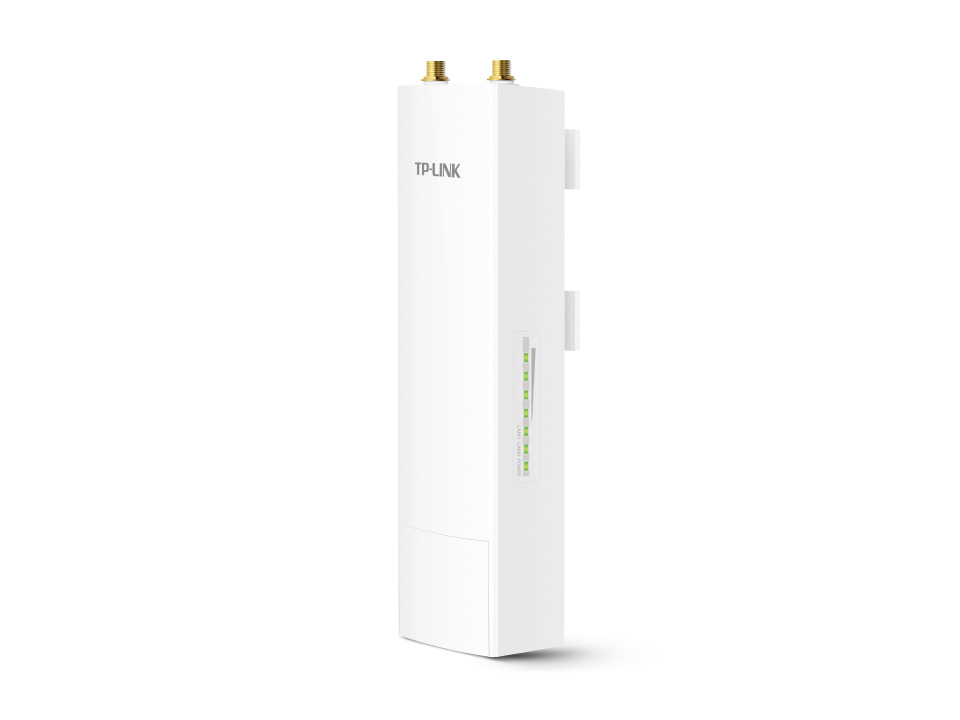

Right Angle View
Right Angle View

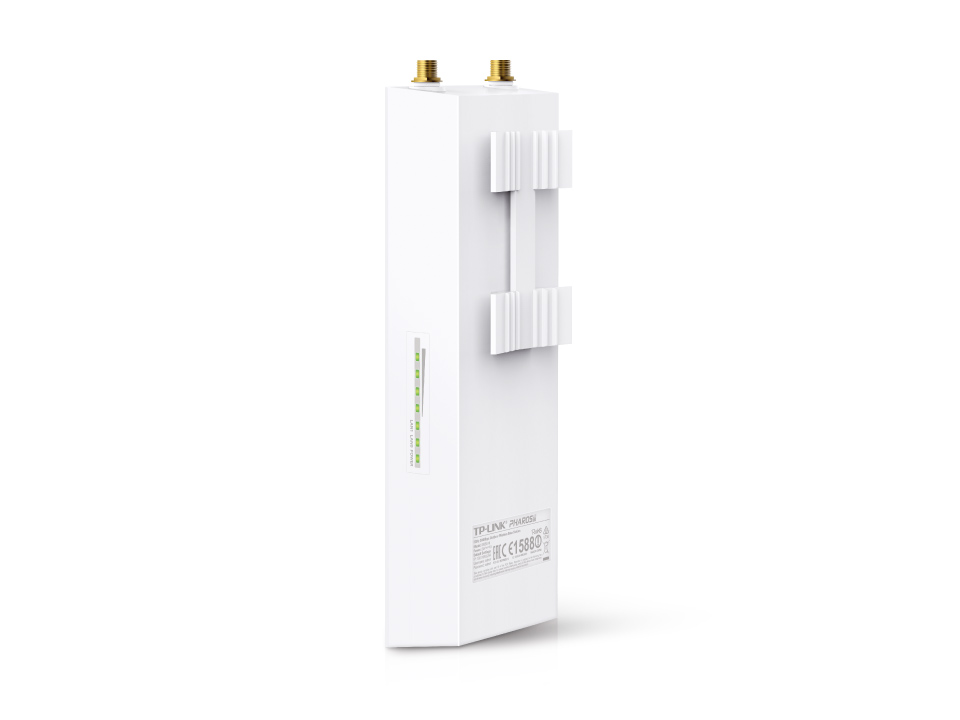

Rear Angle View
Rear Angle View

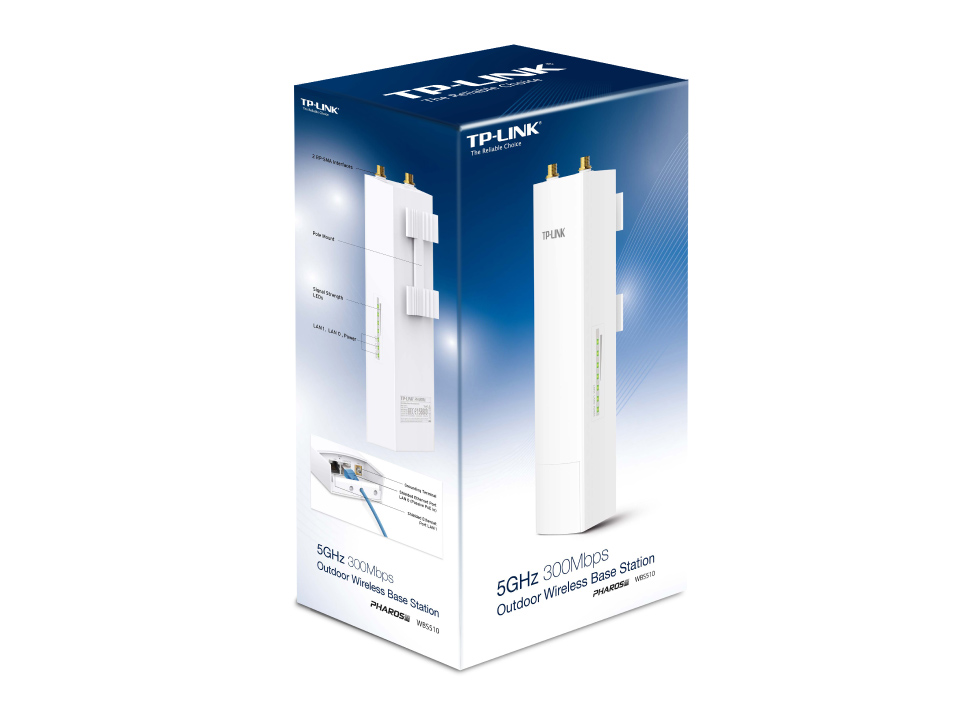

Package View
Package View

Compare:


  WBS510 WBS210
Wireless Performance
Compatibility 802.11 a/n 802.11 b/g/n
Wireless Speed 300Mbps 300Mbps
Transmit Power 27dBm 27dBm
Maximum Transfer distance 50+km 30+km
MIMO
Hardware
External Antenna Interface 2 RP-SMA connectors for MIMO antenna 2 RP-SMA connectors for MIMO antenna
Weatherproof Enclosure (IP65) (IP65)
ESD Protection 15kV 15kV
Lightning Protection 6kV 6kV
Software
Operation Modes AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode
MAXtream TDMA Mode
Channel Bandwidth 5/10/20/40MHz 5/10/20/40MHz
Pharos Control Supported
