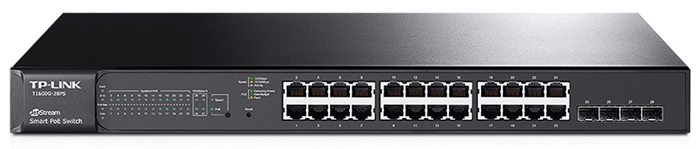

TP-LINK T1600G-28PS (TL-SG2424P)
JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots


TP-LINK T1600G-28PS (TL-SG2424P)

TP-LINK Switches
TP-LINK JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots
#T1600G-28PS
Our Price: $309.99

More pricing below, click here!

JetStreamOverview:

The T1600G-28PS provides 24 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W, powerful and ­flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network fl­exibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.

Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-28PS is an ideal choice for projects or business networks which need PoE function.

  • Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 192W
  • L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
  • IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
  • WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

IEEE 802.3at/af-compliant Power over Ethernet

The T1600G-28PS provides 24 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W to power any 802.3at/af compliant power device. Compact and fl­exible, the T1600G-28PS is ideal to ­flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Abundant L2 and L2+ Features

T1600G-28PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28PS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

Secure Networking

T1600G-28PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies.Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.

Enterprise Level Management Features

T1600G-28PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.

Features:

PoE Features

  • Standard: 802.3at/af compliant with up to 30W per port
  • PoE+ Ports: 24 Ports
  • Power Supply: 192W
  • PoE Schedule (Time-based Settings)

L2 and L2+ Features

  • Static Routing
  • Link Aggregation Control Protocol (LACP)
  • 4k VLANs
  • STP/RSTP/MSTP
  • IGMP Snooping
  • LLDP / LLDP-MED

Quality of Service

  • 8 priority queues
  • 802.1P/DSCP QoS
  • Voice VLAN

Security Strategies

  • Access Control List (L2~L4 ACL)
  • IP-MAC-Port Binding
  • 802.1x and Radius Authentication
  • Port Security
  • Storm Control
  • SSL and SSH encryptions
  • Dos Defend

Management

  • Web-based GUI
  • Command Line Interface (through Telnet)
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 group)
  • IPv6 Management
  • Dual Image

Specifications:


T1600G-28PS (TL-SG2424P) Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
  • 24 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
  • 4 Gigabit SFP Slots
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 1000BASE-X: MMF, SMF
Fan Quantity 2
Dimensions ( W x D x H ) 17.3 x 8.7 x 1.73 in. (440 x 220 x 44 mm)
19-inch Rack mount Steel Case, 1U Height
Power Supply 100-240VAC, 50/60Hz
Power Consumption
  • Maximum (PoE on): 264.8W (220V/50Hz)
  • Maximum (PoE off): 28.2W (220V/50Hz)
PoE+ Ports(RJ45)
  • Standard: 802.3at/af compliant
  • PoE+ Ports: 24 Ports
  • Power Supply: 192W
Performance
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 16K
Jumbo Frame 9KB
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Software Features:

L2+ Switching Features

  • 16 IP Interfaces
    • Supports ipv4 interface
  • Static Routing
    • 32 IPv4 static routes

L2 Switching Features

  • Link Aggregation
    • Support static link aggregation
    • Support 802.3ad LACP
    • Up to 14 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol (STP)
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1W Rapid Spanning Tree Protocol
    • IEEE 802.1S Multiple Spanning Tree Protocol
    • STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Loopback Detection
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Flow-Based
    • Tx/Rx/Both
  • Multicast
    • Support IGMP Snooping v1/v2/v3, up to 256 groups
    • Support multicast VLANs, IGMP Immediate Leave, Unknown IGMP Throttling, IGMP Filtering, Static Multicast IP
    • Support MLD Snooping v1/v2
  • VLAN
    • Support IEEE 802.1Q with 512 VLANs Simultaneously(out of 4K VIDs)
    • Support MAC-based VLAN and Protocol-based VLAN
  • IEEE 802.3x ow control for Full Duplex mode and backpressure for Half Duplex Mode

Quality of Service (QoS)

  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Queue scheduling
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control
    • Port/Flow based Rating Limiting
  • Smoother Performance
  • Actions for flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark
  • Voice VLAN

ACL

  • Supports up to 300 entries
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • EtherType
  • Standard IP ACL
    • Source IP
    • Destination IP
  • Extended IP ACL
    • Source IP
    • Destination IP
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP Port
    • DSCP/IP TOS
  • Combined ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • EtherType
    • User Priority
    • Source IP
    • Destination IP
  • ACL apply to Port/VLAN

Advanced Security Strategies

  • IP-MAC-Port Binding
  • DoS Defend
  • Dynamic ARP Inspection
  • Static/Dynamic Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/ Multicast/ Unicast Storm Control
    • kbps/ratio/pps control mode
  • 802.1X
    • Port based authentication
    • MAC (Host) based authentication
    • Guest VLAN
    • Support Radius authentication and accountability
  • Port Isolation
  • Secure web management through HTTPS and SSLv2/v3/TLSv1
  • Secure command line interface (CLI) management with SSH v1/v2
  • IP/Port/MAC based access control

IPv6 Support

  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
    • DHCPv6 Client / Ping6 / Tracert6 / Telnet(v6) / IPv6 SNMP
    • IPv6 SSH / IPv6 SSL
    • Http/Https
    • IPv6 TFTP

Management

  • Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMP v1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1, 2, 3, 9 groups)
  • DHCP/BOOTP Client
  • DHCP Snooping
  • DHCP Option82
  • 802.1ab LLDP/LLDP-MED
  • Dual Image
  • CPU Monitoring
  • Cable Diagnostics
  • Access Control
  • SNTP
  • System Log

Ethernet Protocols

  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3x Flow control
  • IEEE 802.1p QoS
  • IEEE 802.1q VLANs / VLAN tagging
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1S Multiple Spanning Tree (MSTP)
  • IEEE 802.1W Rapid Spanning Tree (RSTP)
  • IEEE 802.1x Port-based Network Access Control

MIBs

  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-LINK private MIBs

Documentation:

Download the TP-LINK T1600G-28PS (TL-SG2424P) Switch Datasheet (PDF).
