TP-LINK TL-SG108PE
8-Port Gigabit Easy Smart Switch with 4-Port PoE


TP-LINK TL-SG108PE

TP-LINK Switches
TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
#TL-SG108PE
Our Price: $85.00

More pricing below, click here!

Overview:

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

  • 8 10/100/1000Mbps RJ45 ports
  • With 4 PoE ports, data and power can be transferred on one single cable
  • Provides network monitoring, traffic prioritization and VLAN features
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration

Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

  • Overload Arrangement
    TL-SG108PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 55W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
  • Port Priority Function
    Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED will be red if all PoE PDs power consumption is >= 46W). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 30w, and Port 3 will use 10w, and no power will be supplied to Port 4.

Effective Management

TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Easy to Use

The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.

Features:

  • 8 10/100/1000Mbps ports provide instant large file transfers
  • Equipped with 4 802.3af PoE ports with up to 15.4W for each port
  • Supports PoE power up to 55W for all PoE ports
  • IEEE 802.3x flow control provides reliable data transfers
  • 15KB Jumbo frame improves performance of large data transfers
  • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
  • Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Abundant VLAN features improve network security via traffic segmentation
  • IGMP Snooping optimizes multicast applications
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration

Specifications:


TL-SG108PE Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Power Supply External Power Adapter (Output: 48VDC / 1.25A)
Power Consumption
  • Maximum (PoE on): 65.2W (220V/50Hz)
  • Maximum (PoE off): 5.2W (220V/50Hz)
PoE Ports (RJ45)
  • Standard: 802.3 af compliant
  • PoE Ports: Port 1- Port 4
  • PoE Power Budget: 55W
Performance
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5 MB
Jumbo Frame 15KB
Software Features
Quality of Service
  • Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
VLAN
  • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Management
  • Web-based GUI
  • Easy Smart Configuration Utility
Transmission Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • TL-SG108PE
  • Power Adapter
  • Installation Guide
  • Resource CD
  • Rubber Feet
System Requirements Microsoft Windows for running Utility
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Views:

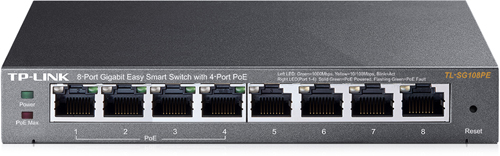

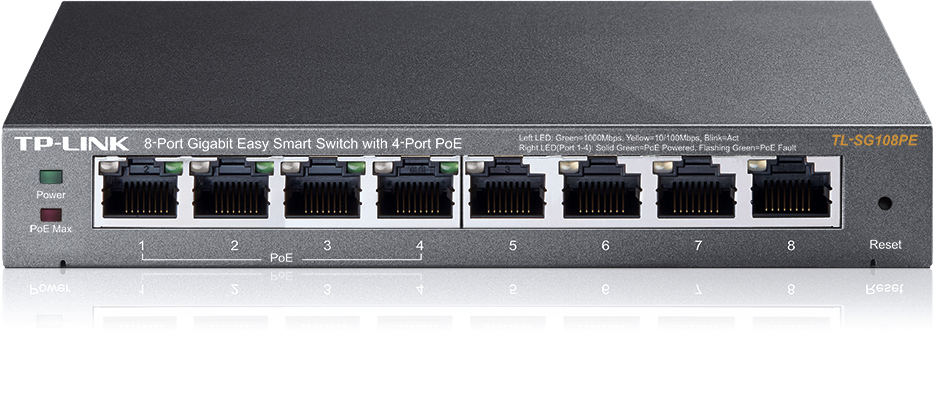

Front View
Front View

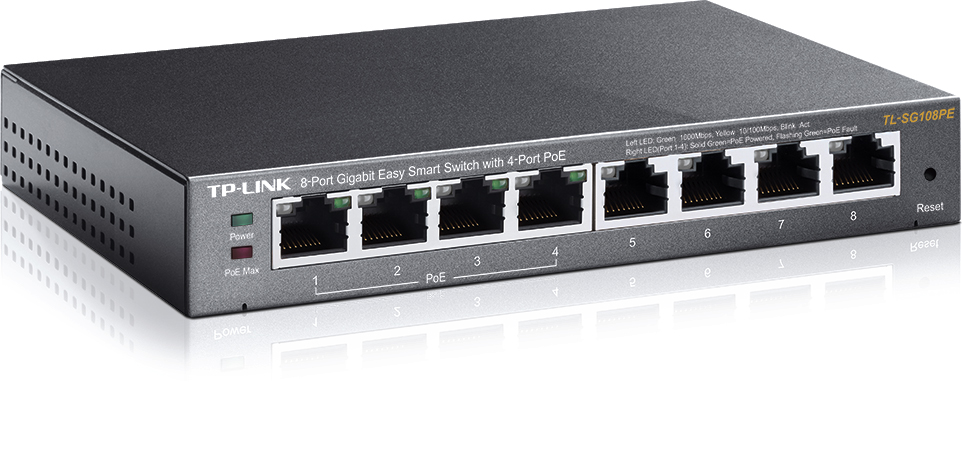

Right Angle View
Right Angle View

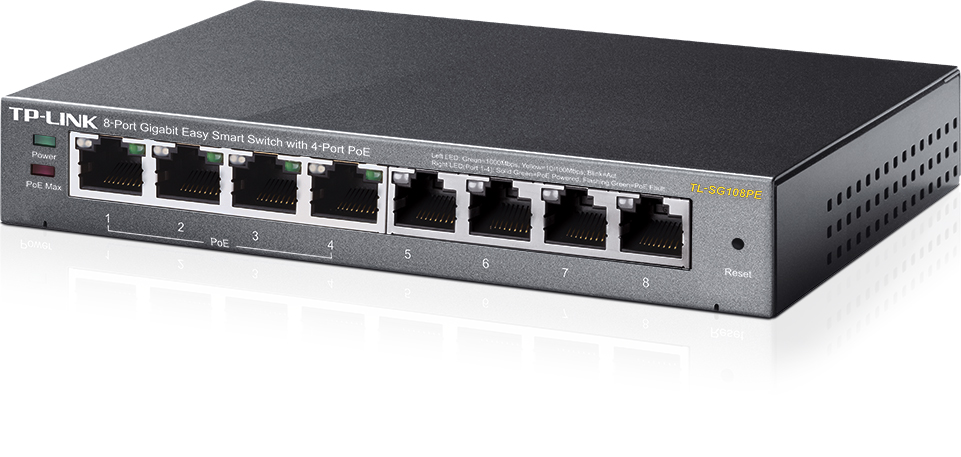

Top Left Angle View
Top Left Angle View
Package View
Package View


Documentation:

Download the TP-LINK TL-SG108PE Switch Datasheet (PDF).
