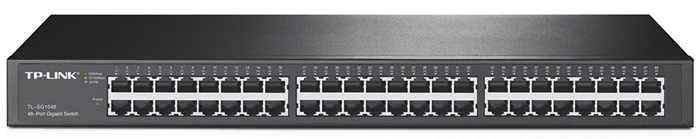

TP-LINK TL-SG1048
48-Port Gigabit Rackmount Switch


TP-LINK TL-SG1048

TP-LINK Switches
TP-LINK 48-Port Gigabit Rackmount Switch
#TL-SG1048
Our Price: $411.00

More pricing below, click here!

Overview:

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

  • 48 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 18%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Features:

  • Innovative energy-efficient technology saves power up to 18%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 96Gbps Switching Capacity
  • Auto MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward.
  • Compact size design for desktops, Rackmountable
  • Plug and Play design simplifies installation

Specifications:


TL-SG1048 Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity 2
Dimensions ( W x D x H ) 17.32 x 8.7 x 1.73 in.(440 x 220 x 44 mm)
19-inch Rack mount Steel Case, 1U Height
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 29.8W (220V/50Hz)
Performance
Bandwidth/Backplane 96 Gbps
Packet Forwarding Rate 71.4 Mpps
MAC Address Table 8K
Buffer Memory 16 MB
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 18%
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK TL-SG1048 Switch Datasheet (PDF).
