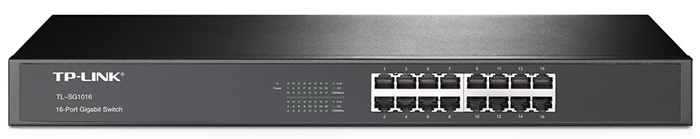

TP-LINK TL-SG1016
16-Port Gigabit Rackmount Switch


TP-LINK TL-SG1016

TP-LINK Switches
TP-LINK 16-Port Gigabit Rackmount Switch
#TL-SG1016
Our Price: $92.00

More pricing below, click here!

Overview:

The TL-SG1016 16-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save up to 15% of the power consumption, making it an eco-friendly solution for your business network.

  • 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 15%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-ecient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new product TL-SG1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
  • Power Budget According to Cable Length
    Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet) in length.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring nonblocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10K/10K Jumbo, the performance of large files transfer is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SG1016 work reliably. It's perfect choice to update your network to Gigabit while protecting your previous investment properly.

Superior Performance

The TL-SG1016 features non-blocking wire-speed architecture with a 32Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG1016 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Features:

  • Innovative energy-efficient technology saves power up to 15%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 32Gbps Switching Capacity
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward.
  • Compact size design for desktops, Rackmountable
  • Plug and Play design simplifies installation

Specifications:


TL-SG1016 Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
19-inch Rack mount Steel Case, 1U Height
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 13.3W (220V/50Hz)
Performance
Bandwidth/Backplane 32 Gbps
Packet Forwarding Rate 23.8 Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 15%
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK TL-SG1016 / TL-SG1024 Switch Datasheet (PDF).
