TP-LINK TL-SG1008P
8-Port Gigabit Desktop Switch with 4-Port PoE


TP-LINK TL-SG1008P

TP-LINK Switches
TP-LINK 8-Port Gigabit Desktop Switch with 4-Port PoE
#TL-SG1008P
Our Price: $104.00

More pricing below, click here!

Overview:

TL-SG1008P is an 8 10/100/1000Mbps ports unmanaged switch that requires no conguration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to x devices such as APs, IP Cameras or IP Phones, etc.

  • 8 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation

Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

  • Overload Arrangement
    TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
  • Port Priority Function
    Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy to use

TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

How This Product Works

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Features:

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply

Specifications:


TL-SG1008P Specifications
Hardware Features
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af
Interface 8 10/100/1000Mbps RJ45 ports with 4 PoE ports (port 1 to port 4)
Auto Negotiation/Auto MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
External Power Supply External Power Adapter (Output: 48VDC / 1.25A)
Power Consumption
  • Maximum (PoE on): 63.0W (220V/50Hz)
  • Maximum (PoE off): 3.3W (220V/50Hz)
PoE Ports (RJ45)
  • Standard: 802.3 af compliant
  • PoE Ports: Port1- Port4
  • Power Supply: 53W
LED Indicator Power, 1000Mbps, Link/Act, PoE Status, PoE MAX
Performance
Switching Capacity 16 Gbps
MAC Address Table 8K, Auto-learning, Auto-aging
Buffer Size 2 Mbits
Software Features
Advanced Features
  • Compatible With IEEE 802.3af Compliant PDs
  • Priority Function
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Desktop Switch
  • Power Adapter
  • User Guide
System Requirements Microsoft Windows 8/7/Vista/XP, Mac OS or Linux-based operating system
Consumption
  • 5.8 watts (max. no PD connected)
  • 58.8 watts (max. with 53w PD connected)
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Views:

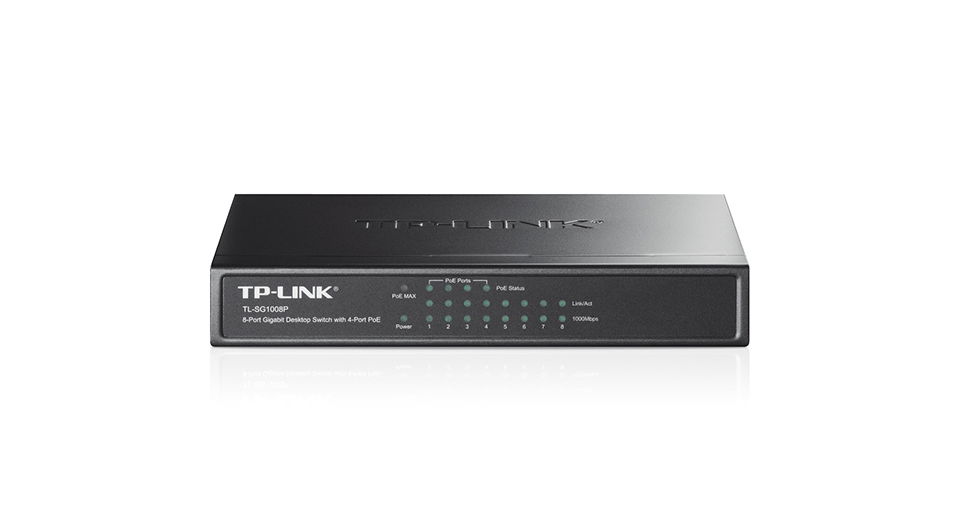

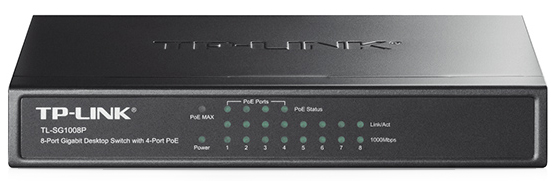

Front View
Front View

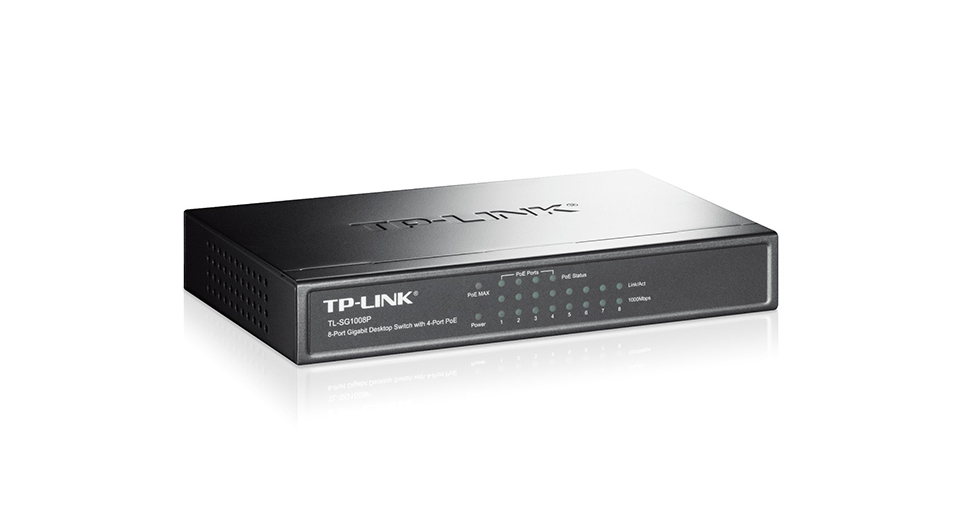

Right Angle View
Right Angle View

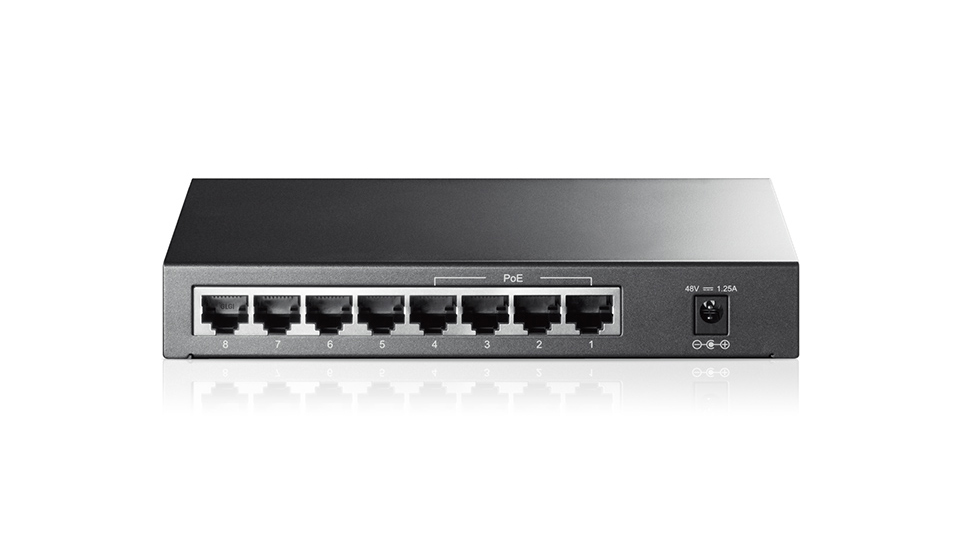

Rear View
Rear View

Documentation:

Download the TP-LINK TL-SG1008P Switch Datasheet (PDF).
