TP-LINK TL-SF1024D
24-Port 10/100Mbps Desktop/Rackmount Switch


TP-LINK TL-SF1024D

TP-LINK Switches
TP-LINK 24-Port 10/100Mbps Desktop/Rackmount Switch
#TL-SF1024D
Our Price: $63.00

More pricing below, click here!

Overview:

The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

  • 24 10/100M RJ45 ports.
  • Innovative energy-efficient technology saves power up to 75%
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Standard 13-inch steel case

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Ease of Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

  • Innovative energy-efficient technology saves power up to 75%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 4.8 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly

Specifications:


TL-SF1024D Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 3.53W (220V/50Hz)
Performance
Switching Capacity 4.8 Gbps
Packet Forwarding Rate 3.57 Mpps
MAC Address Table 8K
Packet Buffer Memory 2 MB
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Rackmount kit
  • Rubber Feet
System Requirements Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Views:

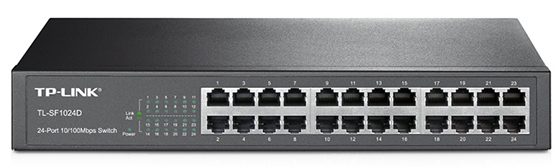

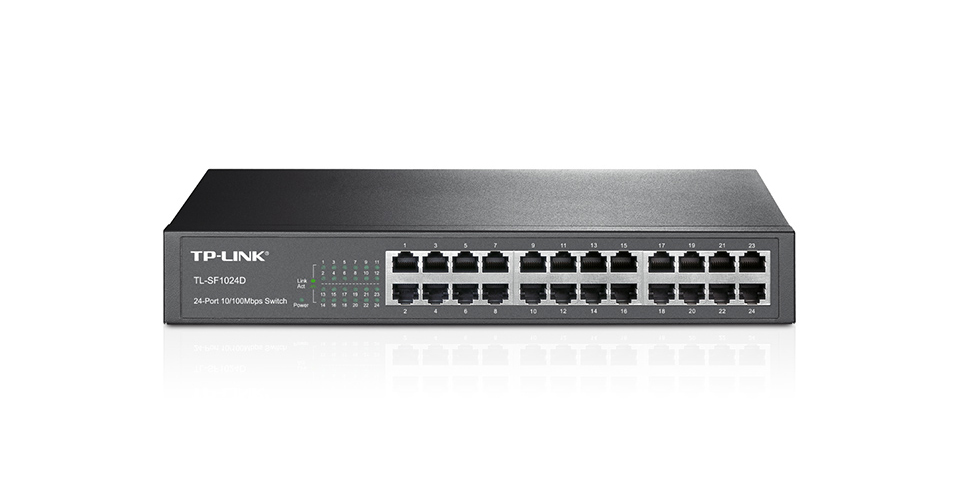

Front View
Front View

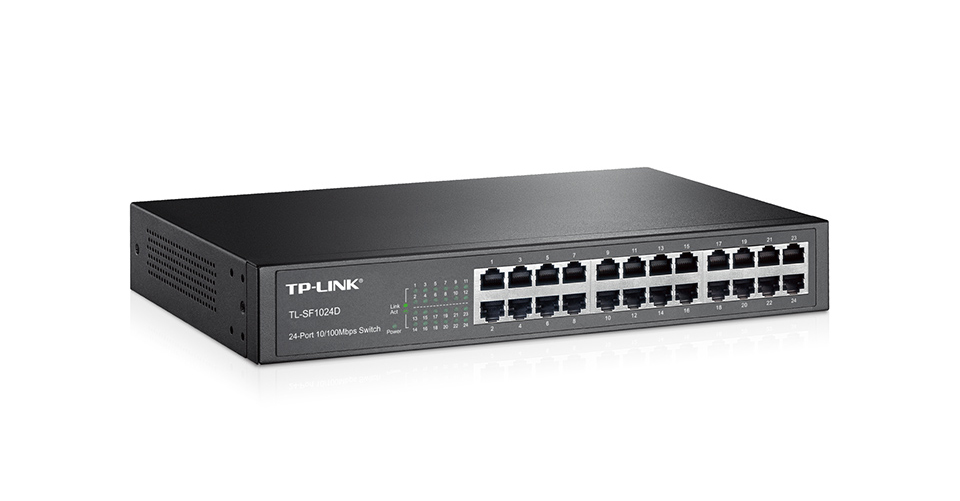

Right Angle View
Right Angle View

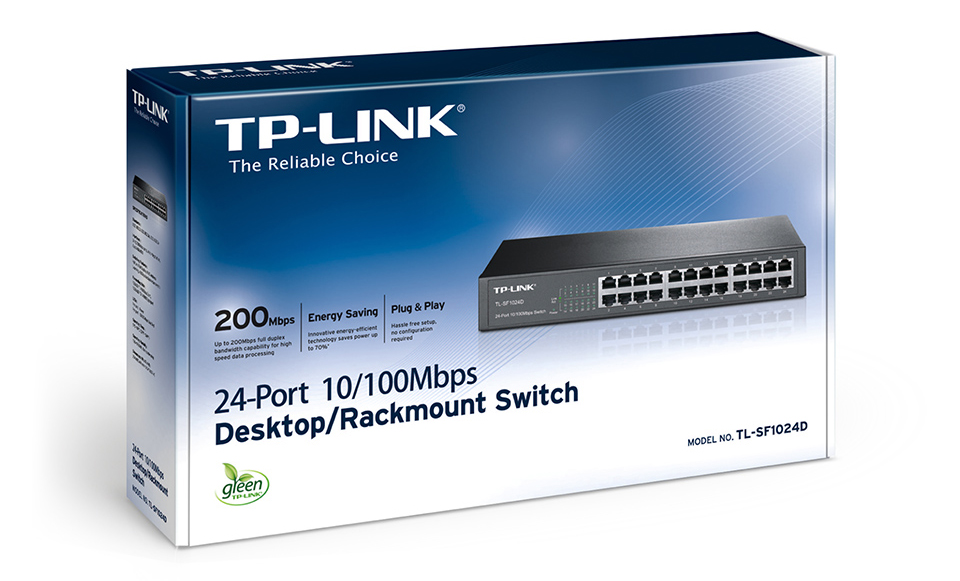

Package View
Package View

Documentation:

Download the TP-LINK TL-SF1016DS / TL-SF1024D Switch Datasheet (PDF).
