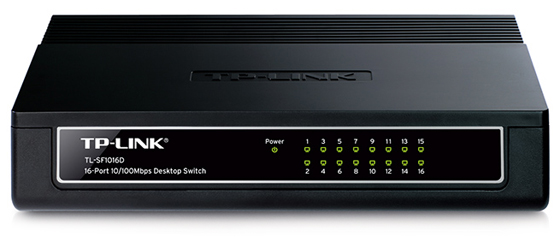

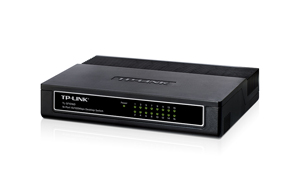

TP-LINK TL-SF1016D
16-Port 10/100Mbps Desktop Switch


TP-LINK TL-SF1016D

TP-LINK Switches
TP-LINK 16-Port 10/100Mbps Desktop Switch
#TL-SF1016D
Our Price: $31.00

More pricing below, click here!

Overview:

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 80% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

  • 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves the power up to 80%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

High Performance

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

  • Up to 200Mbps full duplex bandwidth capability for high speed data processing
  • 16 10/100Mbps Ethernet ports
  • Innovative energy-efficient technology saves power up to 80%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2Gbps Switching Capacity
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
  • Fanless design ensures quiet operation
  • Desktop or wall-mounting design
  • Plug and Play design simplifies installation

Specifications:


TL-SF1016D Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • CSMA/CD
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Forwarding Rates
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Fan Quantity Fanless
Dimensions ( W x D x H ) 7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm)
External Power Supply External Power Adapter (Output: 5.0VDC / 0.6A)
Power Consumption Maximum: 3.1W (220V/50Hz)
LED Indicator Power, Ethernet Ports
Switching Features
  • Half and Full Duplex
  • MAC Address Learning
  • 1.0 Gbps Backplane Bandwidth
Data Rates
  • 10/100Mbps at Half Duplex
  • 20/200Mbps at Full Duplex
Performance
Backplane Bandwidth 1.0 Gbps
Mac Address Table 1K
Software Features
Advanced Features
  • Green Technology, saving power up to 80%
  • 802.3X Flow Control, Back Pressure
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Desktop Switch
  • Power Adapter
  • User Guide
System Requirements Microsoft Windows XP, Vista or Windows 7/8, Mac OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

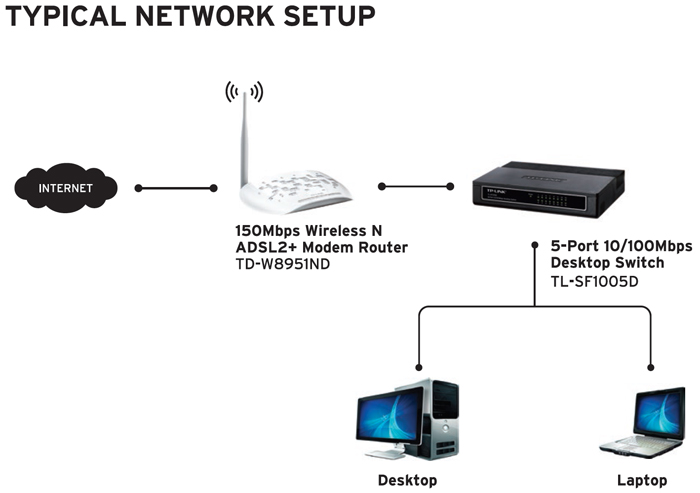

Diagram:

TL-SF1016D Diagram

Views:

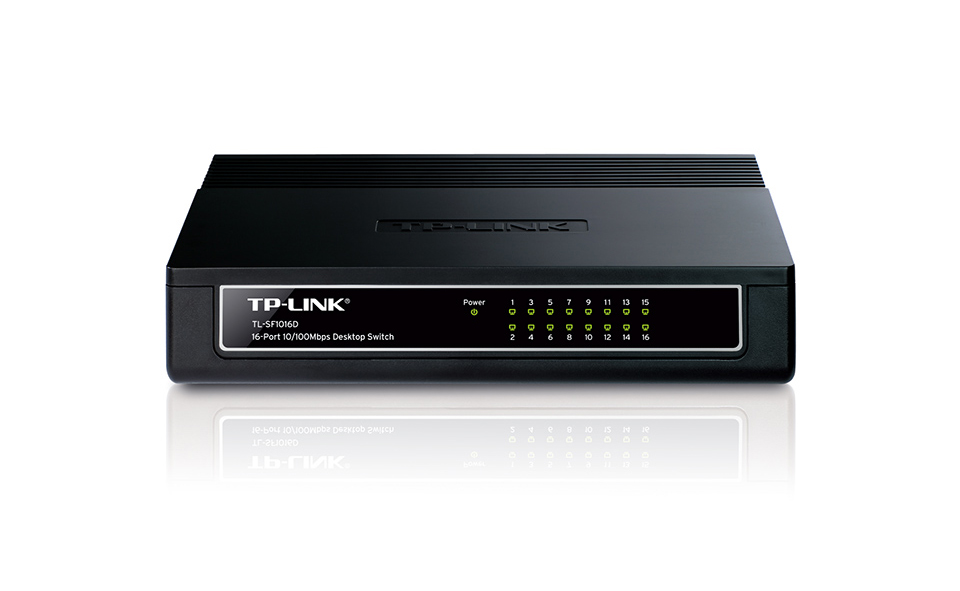

Front View
Front View

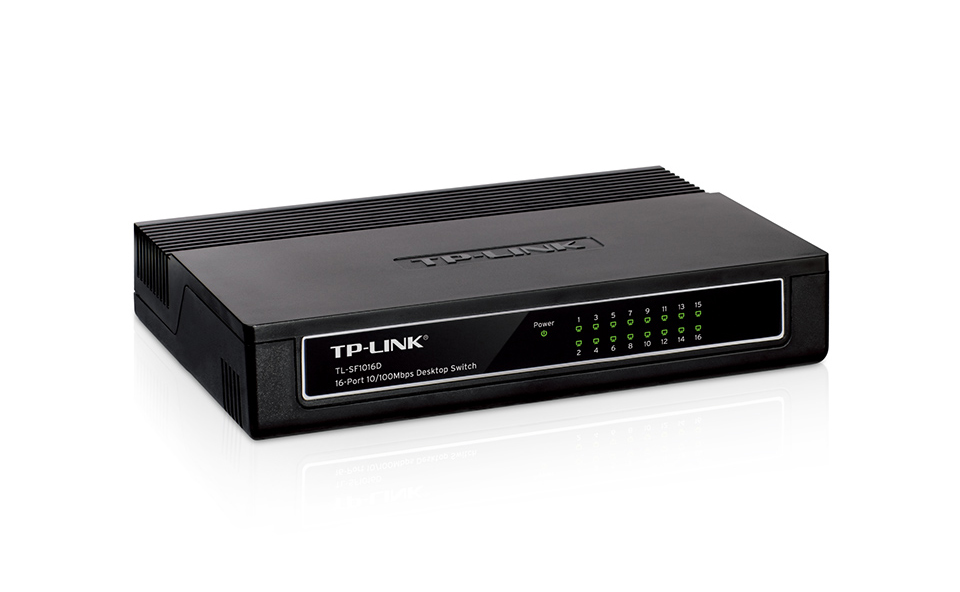

Right Angle View
Right Angle View

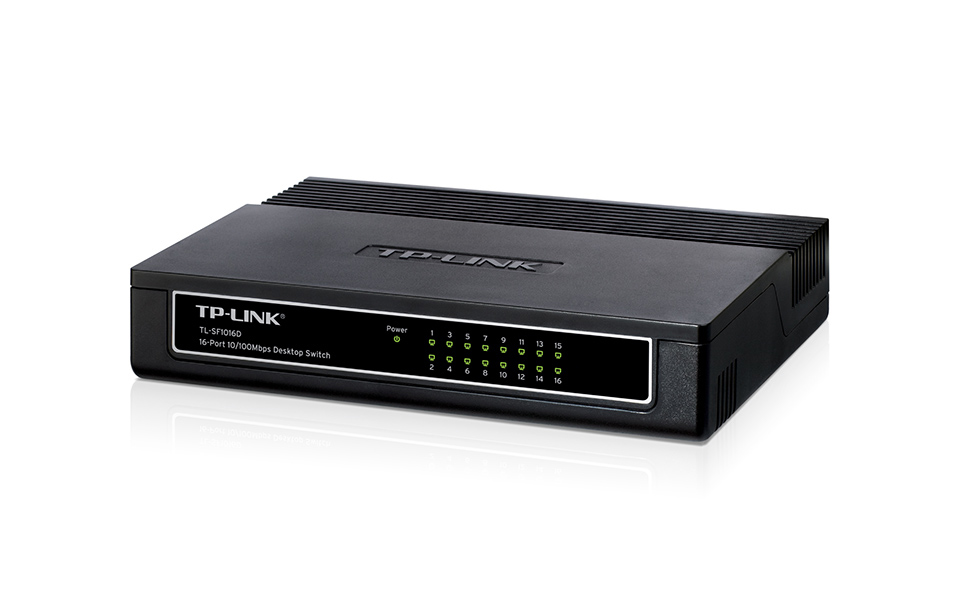

Left Angle View
Left Angle View

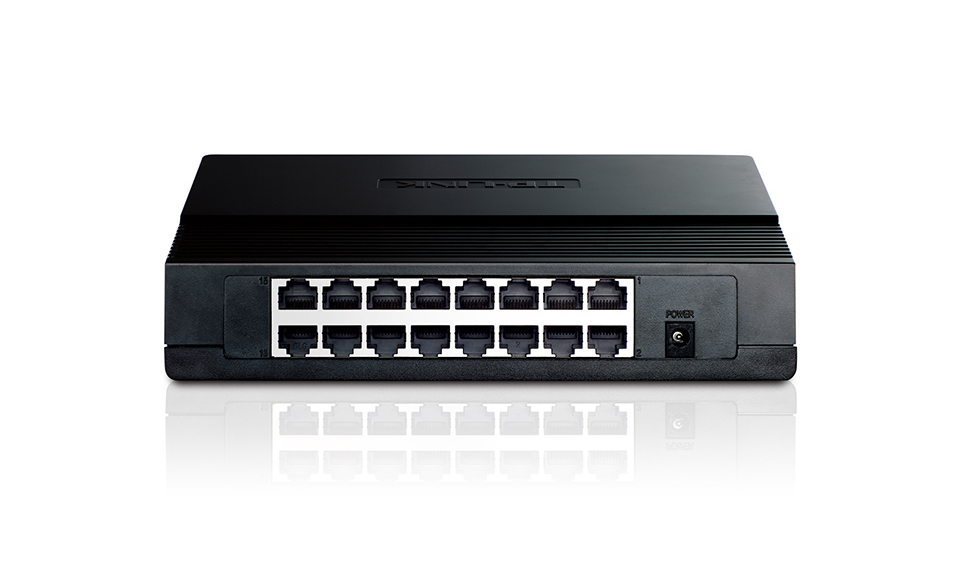

Rear View
Rear View


Documentation:

Download the TP-LINK TL-SF1016D Switch Datasheet (PDF).
