TP-LINK TL-SF1008D
8-Port 10/100Mbps Desktop Switch


TP-LINK TL-SF1008D

TP-LINK Switches
TP-LINK 8-Port 10/100Mbps Desktop Switch
#TL-SF1008D
Our Price: $15.00

More pricing below, click here!

Overview:

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves the power up to 60%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

  • Up to 200Mbps full duplex bandwidth capability for high speed data processing
  • 8 10/100Mbps Ethernet ports
  • Innovative energy-efficient technology saves power up to 60%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop design
  • Plug and Play design simplifies installation

Specifications:


TL-SF1008D Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • CSMA/CD
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Forwarding Rates
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Fan Quantity Fanless
Dimensions ( W x D x H ) 5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)
External Power Supply External Power Adapter (Output: 5.0VDC / 0.6A)
Power Consumption Maximum: 2.2W (220V/50Hz)
LED Indicator Power, Ethernet Ports (1, 2, 3, 4, 5, 6, 7, 8)
Switching Features
  • Half and Full Duplex
  • MAC Address Learning
  • 1.6 Gbps Backplane Bandwidth
Data Rates
  • 10/100Mbps at Half Duplex
  • 20/200Mbps at Full Duplex
Performance
Backplane Bandwidth 1.6 Gbps
Buffer Size 2 MB
Software Features
Advanced Features
  • Green Technology, saving power up to 60%
  • 802.3X Flow Control, Back Pressure
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Desktop Switch
  • Power Adapter
  • User Guide
System Requirements Microsoft Windows XP, Vista or Windows 7/8, Mac OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

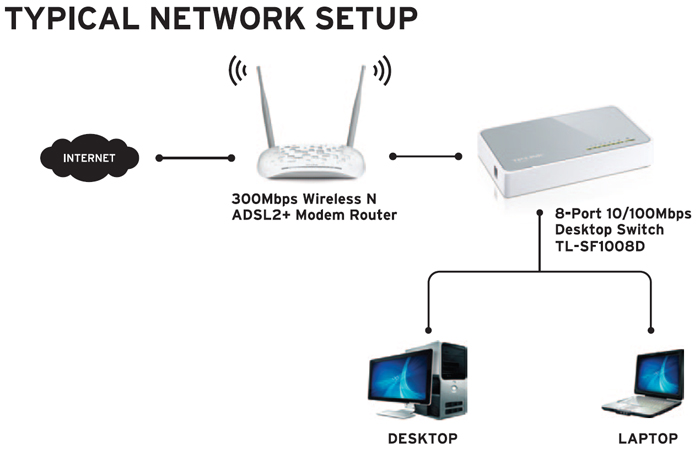

Diagram:

TL-SF1008D Diagram

Views:

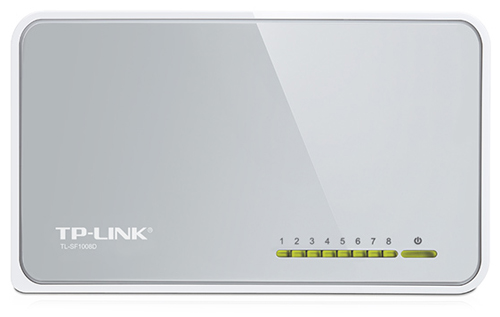

Top View
Top View

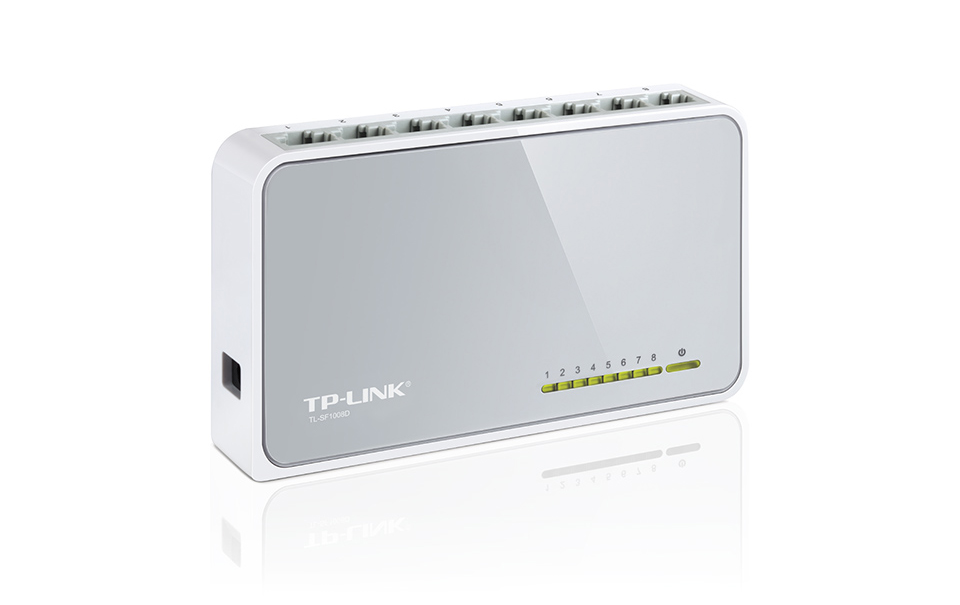

Top Right Angle View
Top Right Angle View

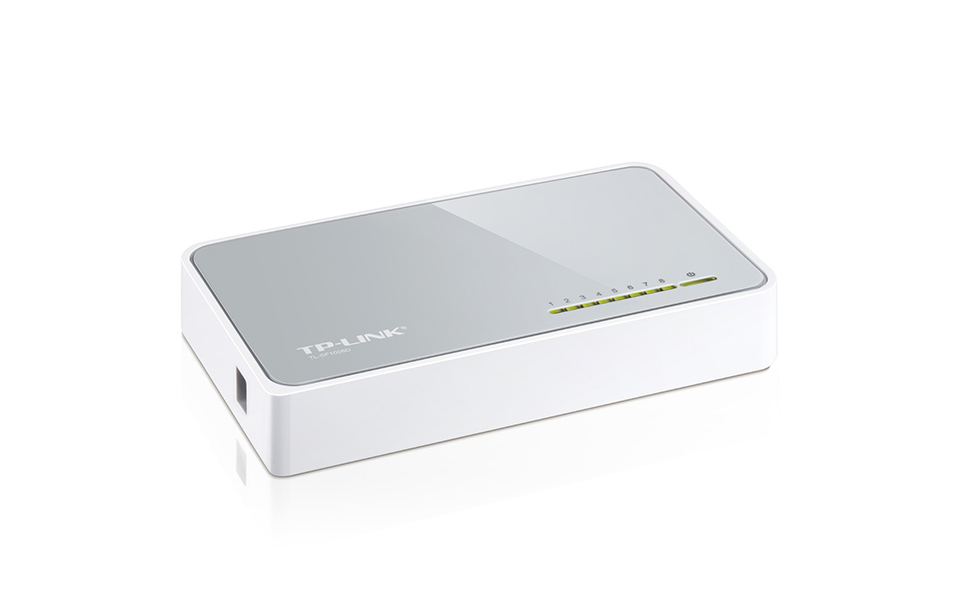

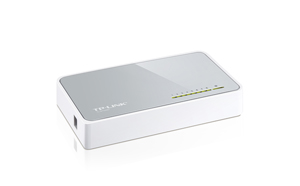

Right Angle View
Right Angle View

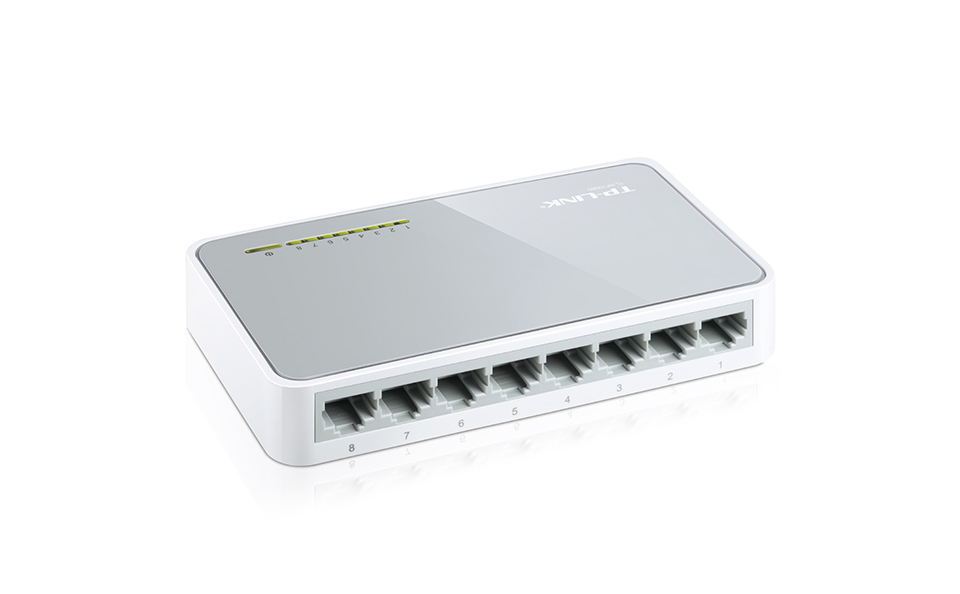

Rear Angle View
Rear Angle View

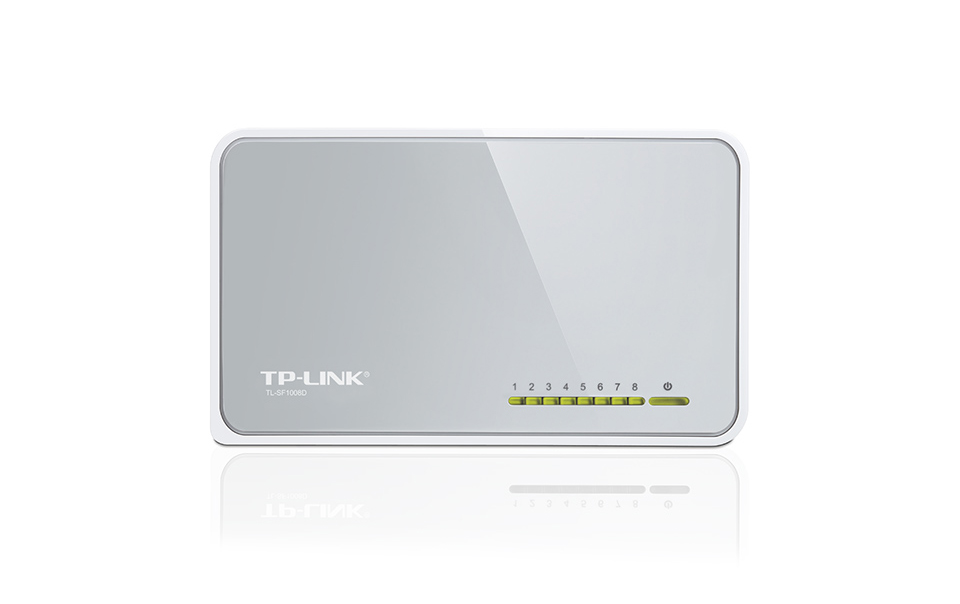

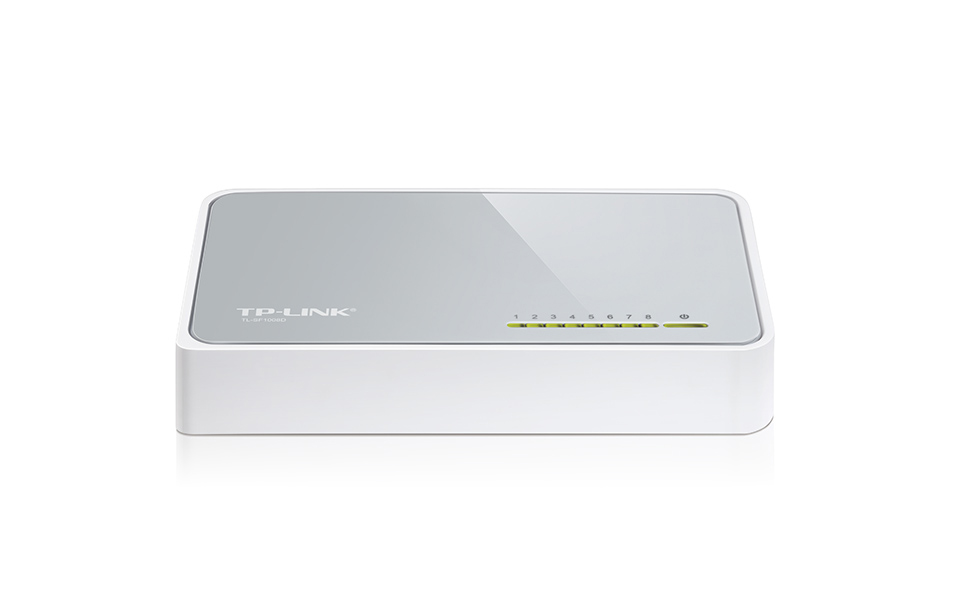

Front View
Front View

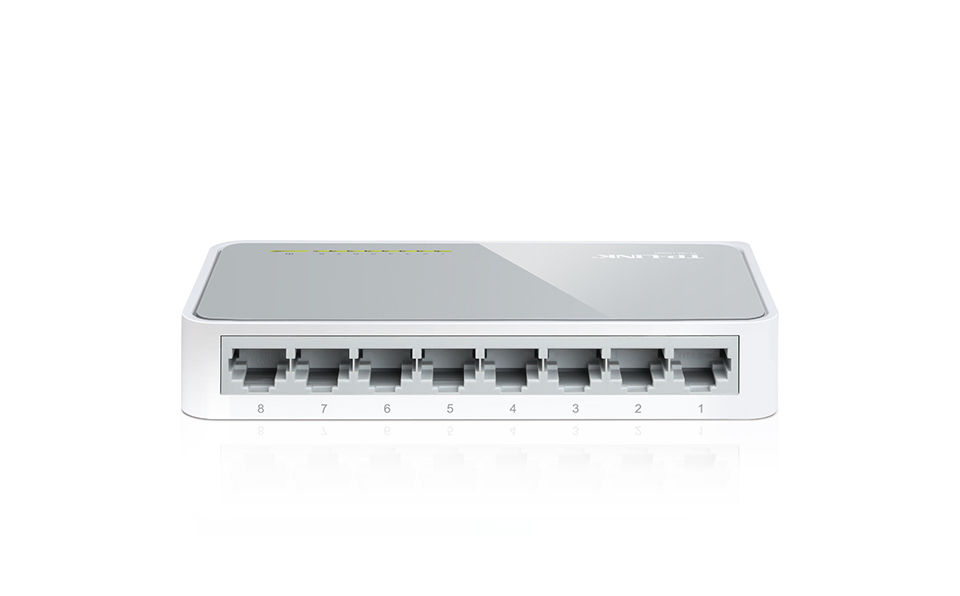

Rear View
Rear View

Documentation:

Download the TP-LINK TL-SF1008D Switch Datasheet (PDF).
