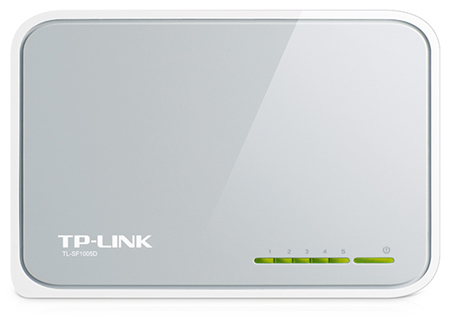

TP-LINK TL-SF1005D
5-Port 10/100Mbps Desktop Switch


TP-LINK TL-SF1005D

TP-LINK Switches
TP-LINK 5-Port 10/100Mbps Desktop Switch
#TL-SF1005D
Our Price: $10.00

More pricing below, click here!

Overview:

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

  • 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves the power up to 60%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

High Performance

TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Easy to use

The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

  • 5 10/100Mbps Ethernet ports
  • Up to 200Mbps full duplex bandwidth for high-speed data processing
  • Innovative energy-efficient technology saves power up to 60%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop design
  • Plug and Play design simplifies installation

Specifications:


TL-SF1005D Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • CSMA/CD
Interface 5 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Forwarding Rates
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Fan Quantity Fanless
Dimensions ( W x D x H ) 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
External Power Supply External Power Adapter (Output: 5.0VDC / 0.6A)
Power Consumption Maximum: 2.2W (220V/50Hz)
LED Indicator Power, Ethernet Ports (1, 2, 3, 4, 5)
Switching Features
  • Half and Full Duplex
  • MAC Address Learning
  • 1.0 Gbps Backplane Bandwidth
Data Rates
  • 10/100Mbps at Half Duplex
  • 20/200Mbps at Full Duplex
Software Features
Advanced Features
  • Green Technology, saving power up to 60%
  • 802.3X Flow Control, Back Pressure
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Desktop Switch
  • Power Adapter
  • User Guide
System Requirements Microsoft Windows XP, Vista or Windows 7/8, Mac OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

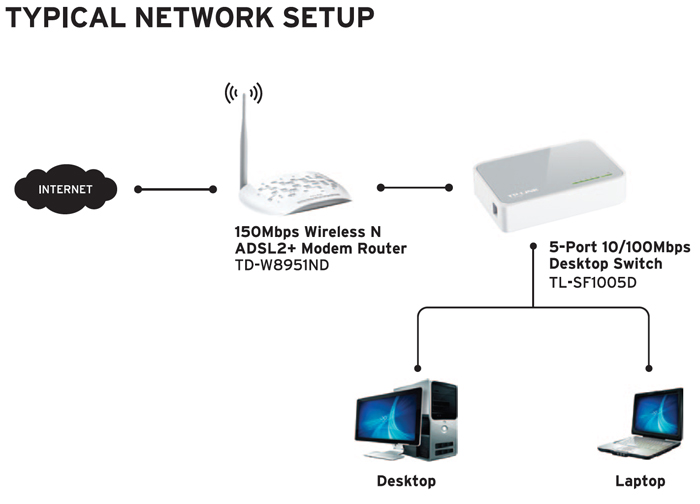

Diagram:

TL-SF1005D Diagram

Views:

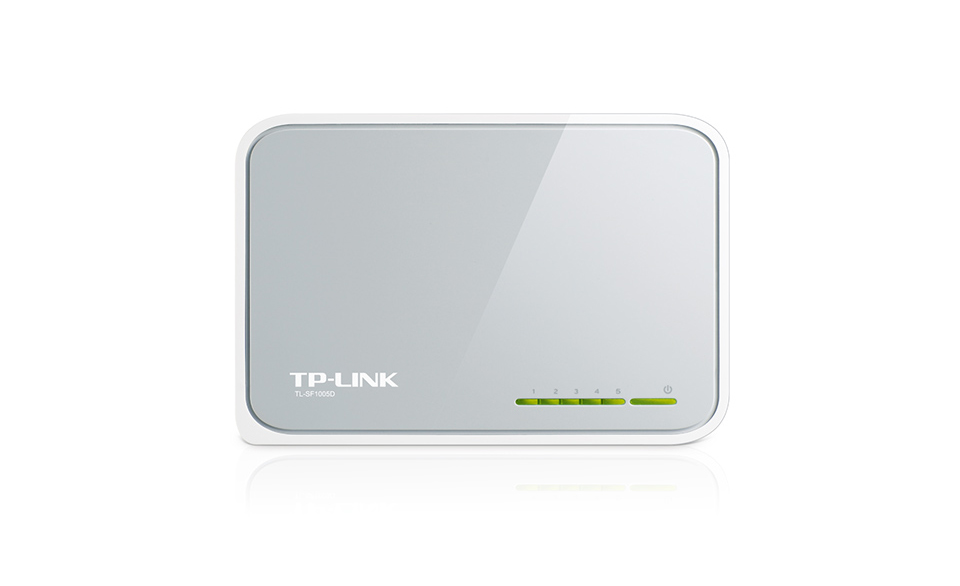

Top View
Top View

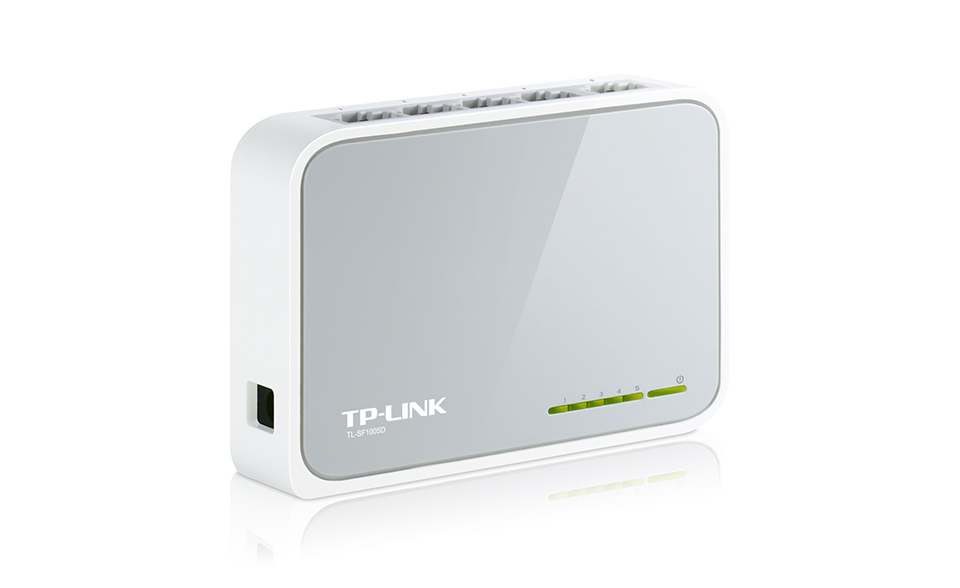

Top Right Angle View
Top Right Angle View

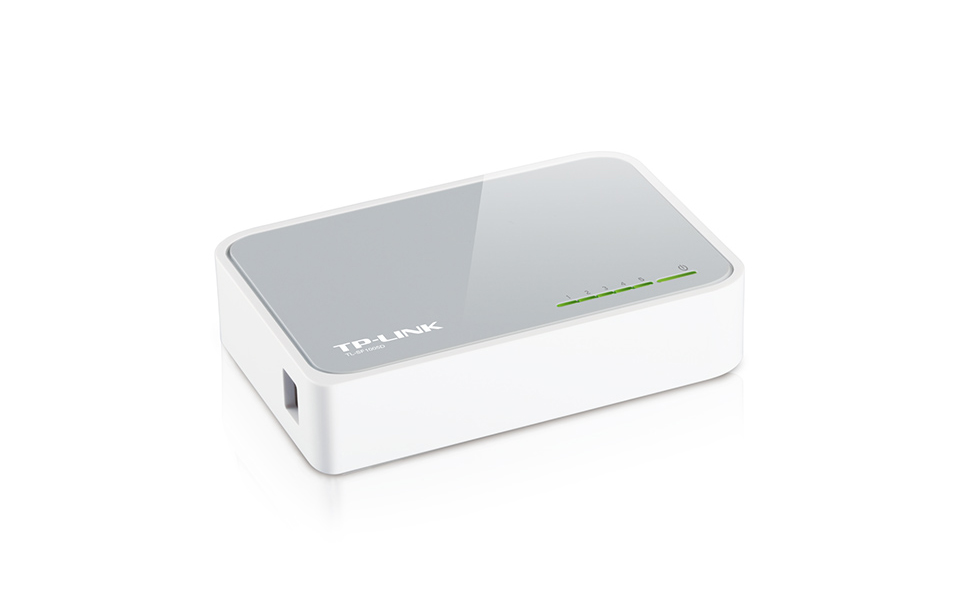

Right Angle View
Right Angle View

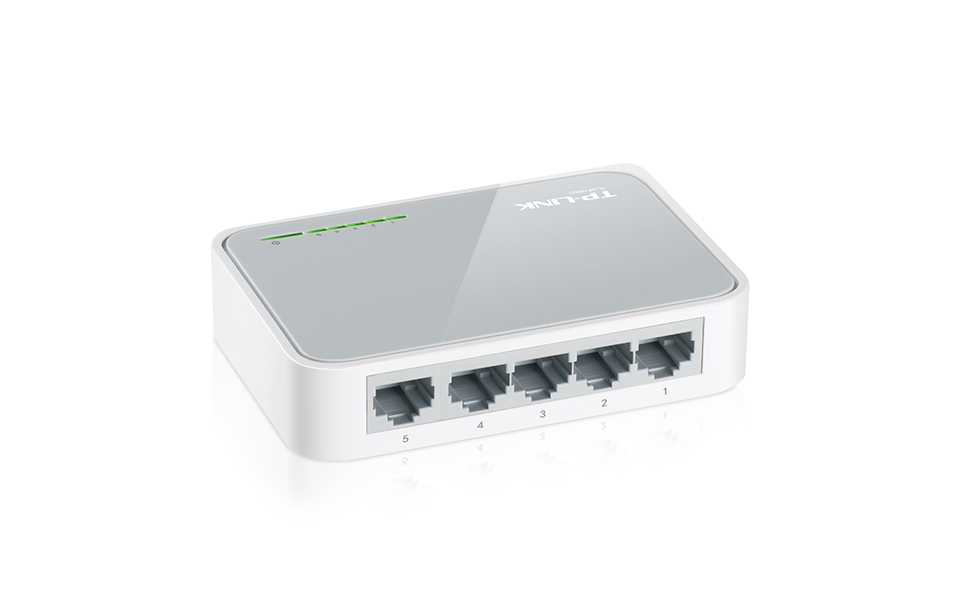

Rear Angle View
Rear Angle View

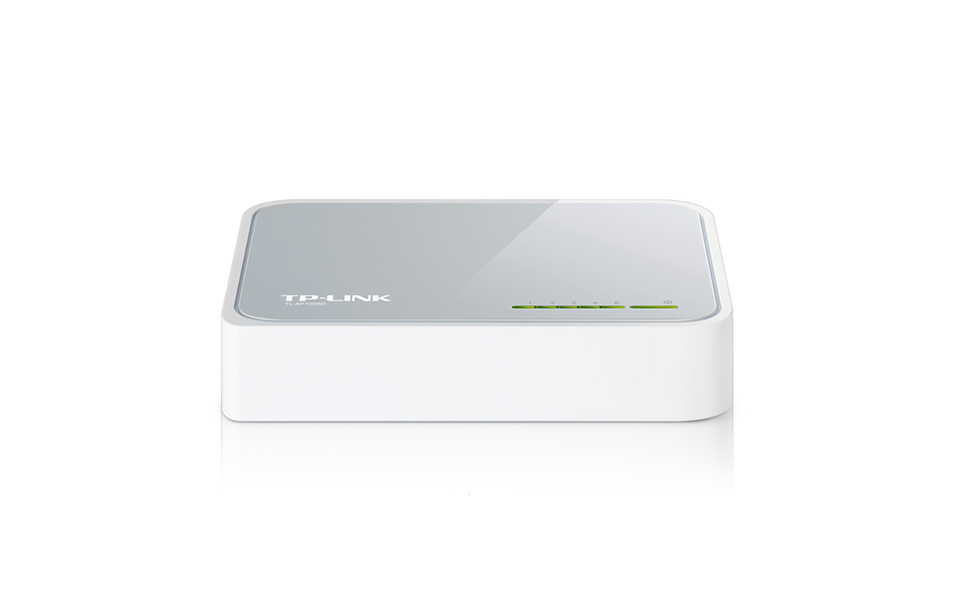

Front View
Front View

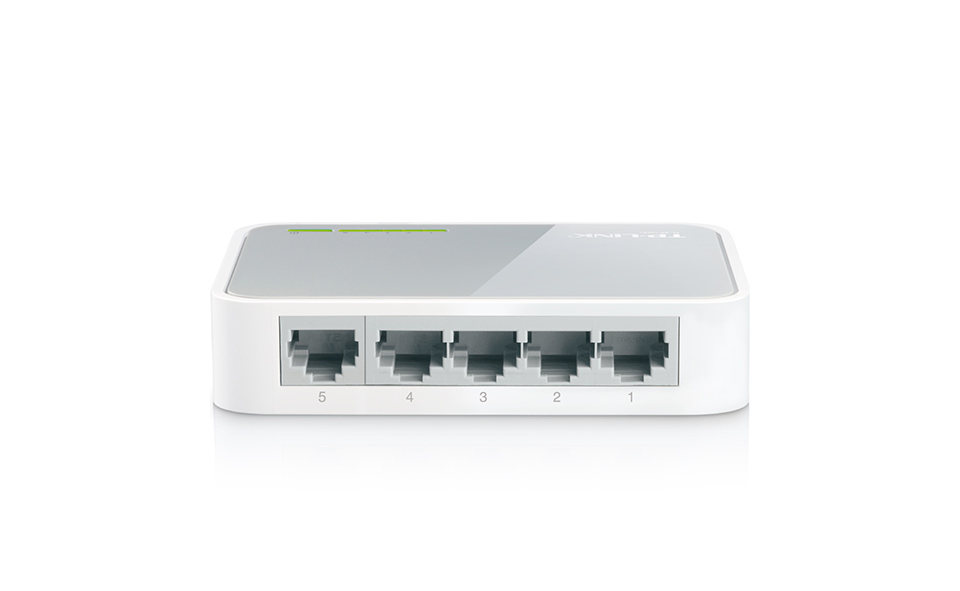

Rear View
Rear View

Documentation:

Download the TP-LINK TL-SF1005D Switch Datasheet (PDF).
