TP-LINK TL-POE150S
Power over Ethernet Injector


TP-LINK TL-POE150S

TP-LINK Power over Ethernet
TP-LINK PoE Injector
#TL-POE150S
Our Price: $20.00

More pricing below, click here!

Overview:

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

Features:

  • Complies with IEEE802.3af standard
  • Cost Saving, no power cabling for Ethernet network device
  • Delivers power and data over the single cable up to 100 meters
  • Advanced Auto-Sensing Algorithm enables providing power with 802.3af PD
  • Supports power classication, Auto-determine the necessary power requirements
  • High Safety with Short Circuit Protection
  • Plug & Play installation, requires no conguration
  • External 48VDC power supply

Specifications:


TL-POE150S Specifications
Hardware Features
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
Interface
  • 2 10/100/1000Mbps RJ45 Port
  • AUTO Negotiation/AUTO MDI/MDIX
  • 1 48VDC Power Input Port
Forwarding Rates
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 15.4W (Max. 48VDC)
Basic Function
  • Compatible With IEEE 802.3af Compliant PSEs
  • Delivers Power Up To 100 Meters
  • Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 x 2.1 x 0.9 in. (80.8 x 54 x 24 mm)
Software Features
Advanced Features
  • Compatible With IEEE 802.3af Compliant PDs
  • Delivers Power Up To 100 Meters
  • Auto-Determine The Necessary Power Requirements
Others
Certification CE, FCC, RoHS
Package Contents
  • TL-POE150S PoE Injector
  • One Ethernet (CAT.5 UTP) Cable
  • One Power Adapter
  • User Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

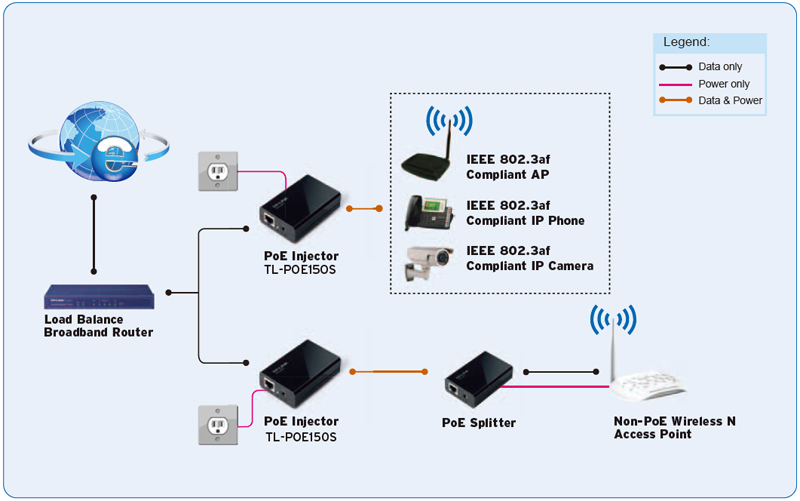

Diagram:

TL-POE150S Diagram

Views:

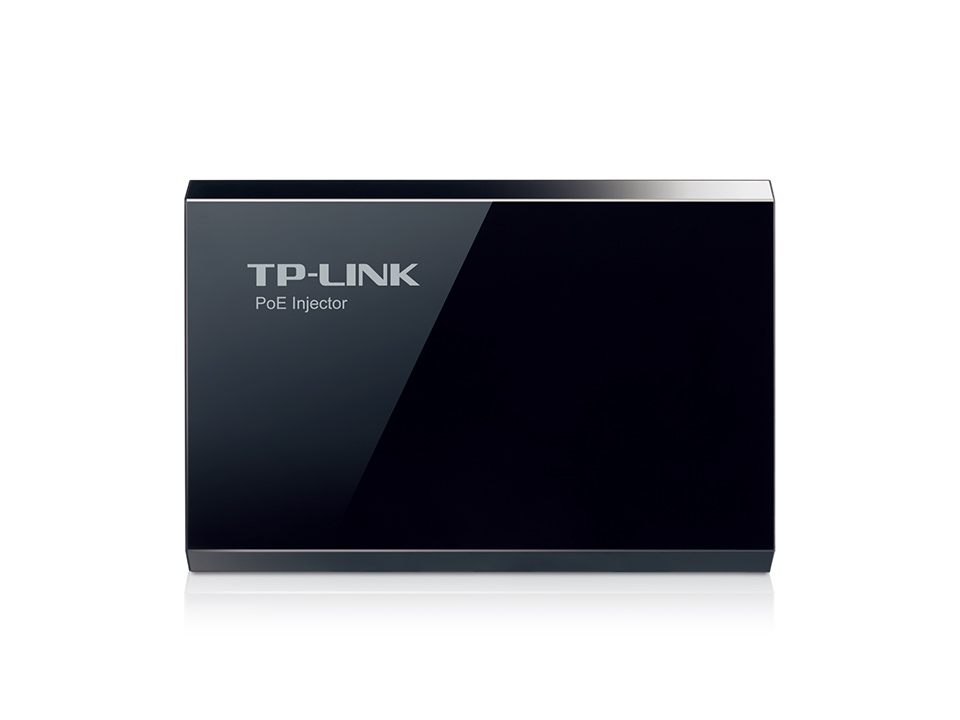

Top View
Top View

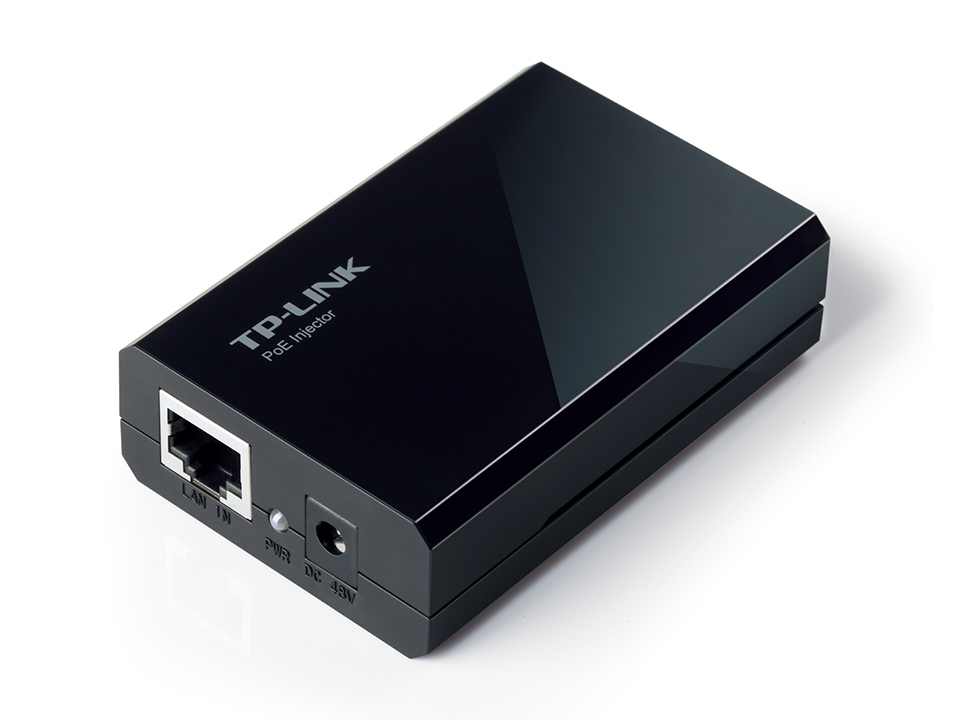

Left Angle View
Left Angle View

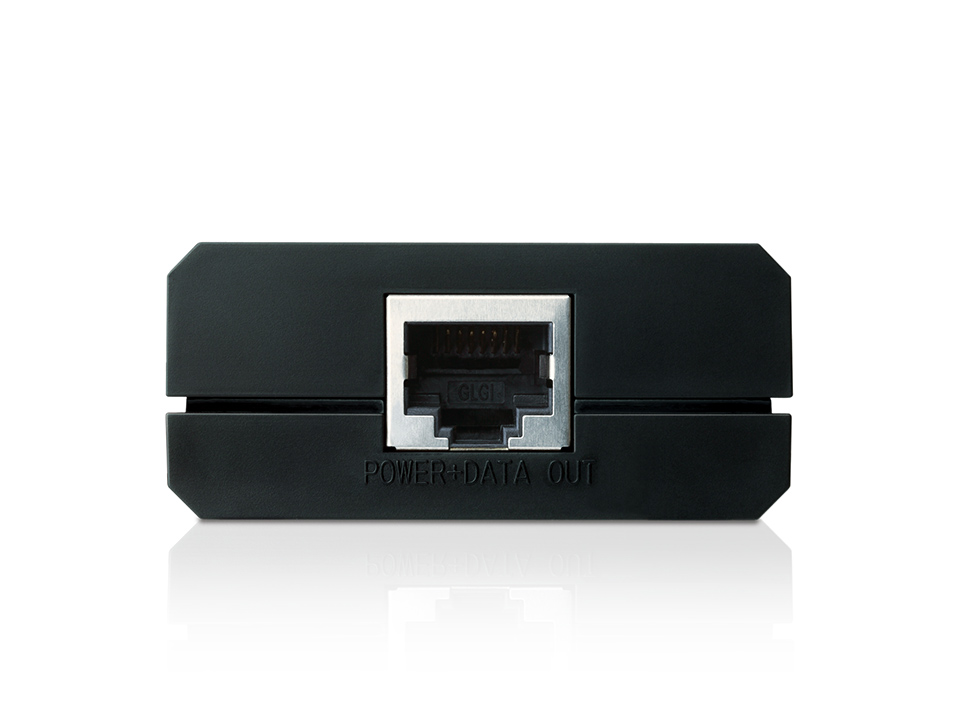

Right Side View
Right Side View

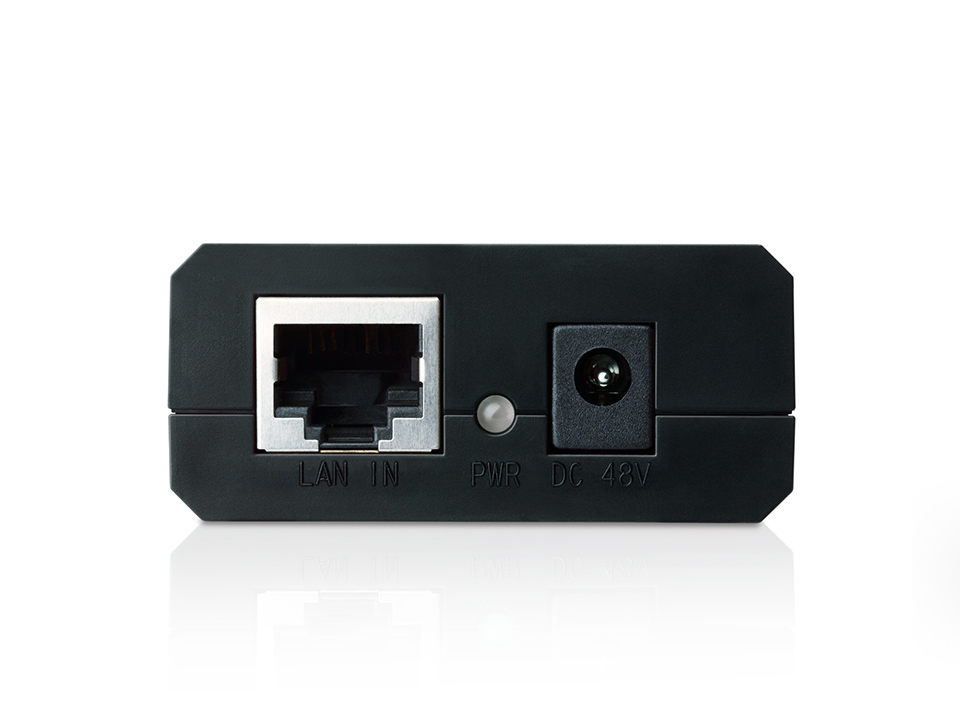

Left Side View
Left Side View
Package View
Package View


Documentation:

Download the TP-LINK TL-POE150S PoE Injector Datasheet (PDF).
