TP-LINK TL-POE10R
Power over Ethernet Splitter


TP-LINK TL-POE10R

TP-LINK Power over Ethernet
TP-LINK PoE Splitter
#TL-POE10R
Our Price: $15.00

More pricing below, click here!

Overview:

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SG3424P, TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Selectable power output
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

Features:

  • Complies with IEEE802.3af standard
  • Cost Saving, no power cabling for Ethernet network device
  • Advanced Auto-Sensing Algorithm enables taking power from 802.3af PSE
  • Adjustable 5VDC, 9VDC or 12VDC output with slide switch
  • Supplies up to10W at 5VDC,9W at 9VDC or 12W at 12VDC
  • High Safety with Short Circuit Protection
  • Supports power detection and classication
  • Auto disconnection for over voltage, under voltage or over current
  • Plug & Play installation, requires no conguration

Specifications:


TL-POE10R Specifications
Hardware Features
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
Interface
  • 2 10/100/1000Mbps RJ45 Port
  • AUTO Negotiation/AUTO MDI/MDIX
  • 1 Power Output Port
Forwarding Rates
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function
  • Compatible With IEEE 802.3af Compliant PSEs
  • Delivers Power Up To 100 Meters
  • Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 x 2.1 x 0.9 in. (80.8 x 54 x 24 mm)
Software Features
Advanced Features
  • Compatible With IEEE 802.3af Compliant PSEs
  • Delivers Power Up To 100 Meters
  • Optional 12VDC, 9VDC or 5VDC Power Supply
Others
Certification CE, FCC, RoHS
Package Contents
  • TL-POE10R PoE Splitter
  • One Ethernet (CAT.5 UTP) Cable
  • One Power Cable
  • User Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

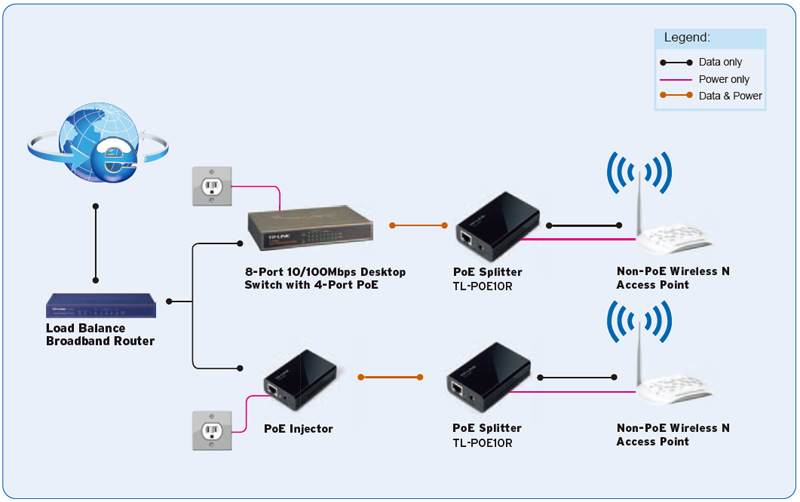

Diagram:

TL-POE10R Diagram

Views:

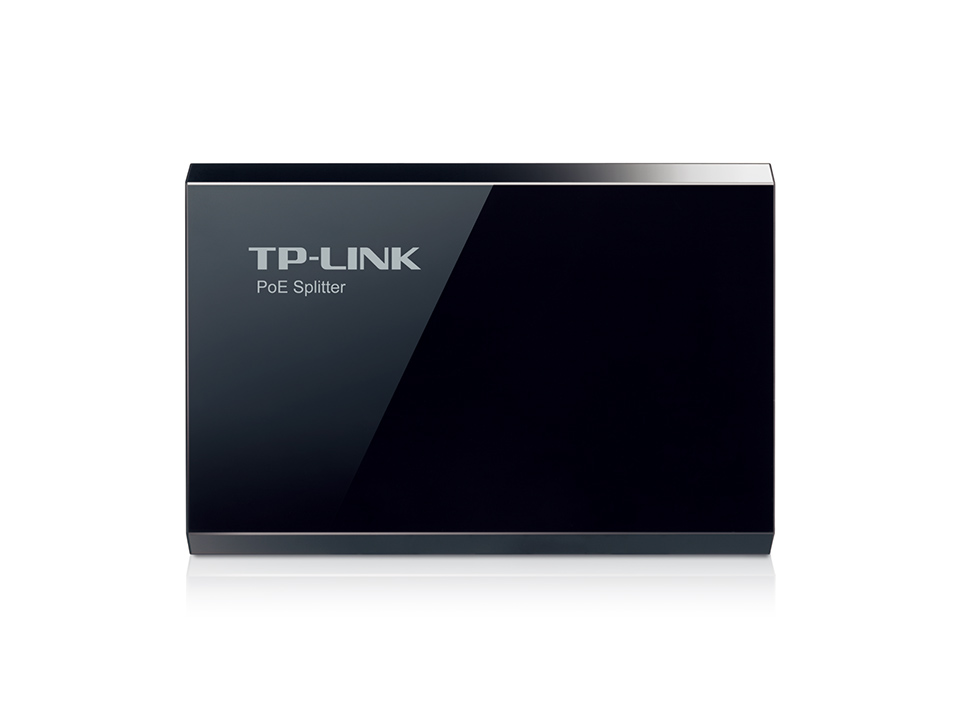

Top View
Top View

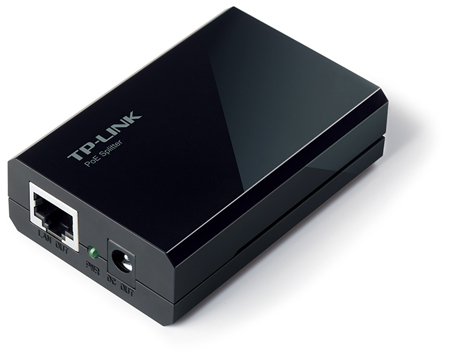

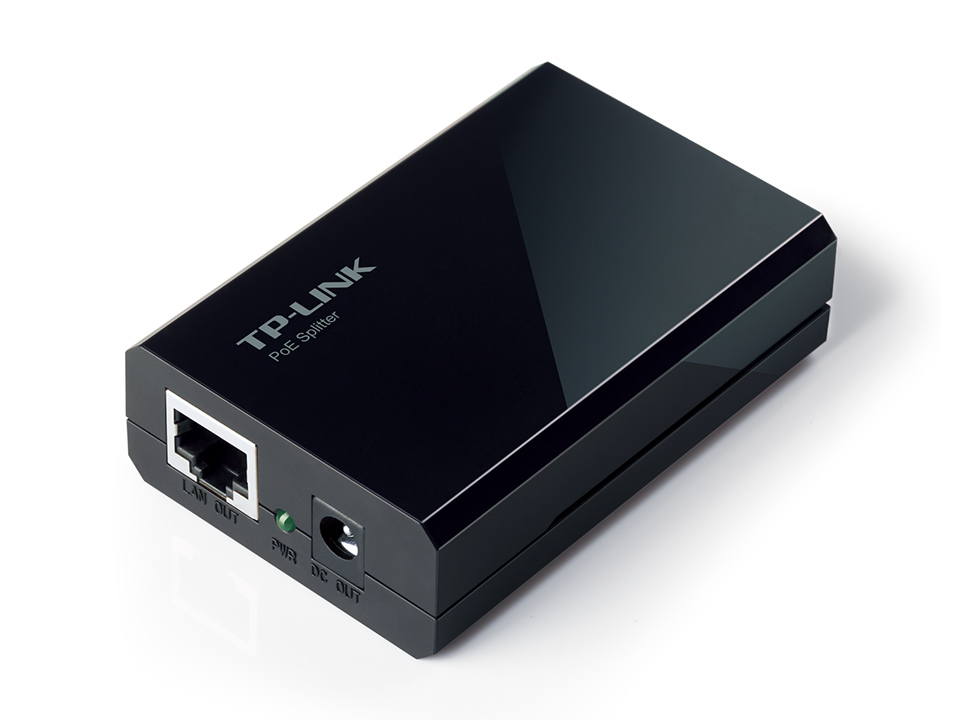

Left Angle View
Left Angle View

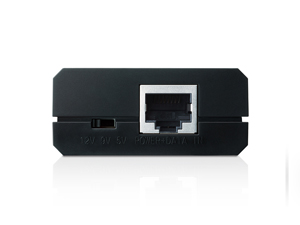

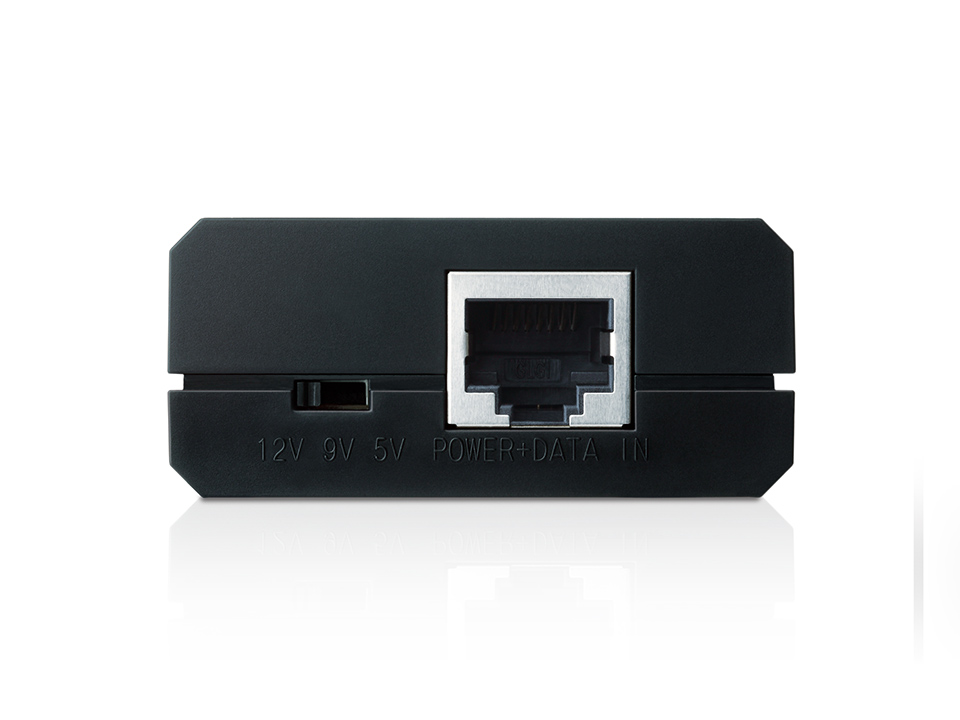

Left Side View
Left Side View

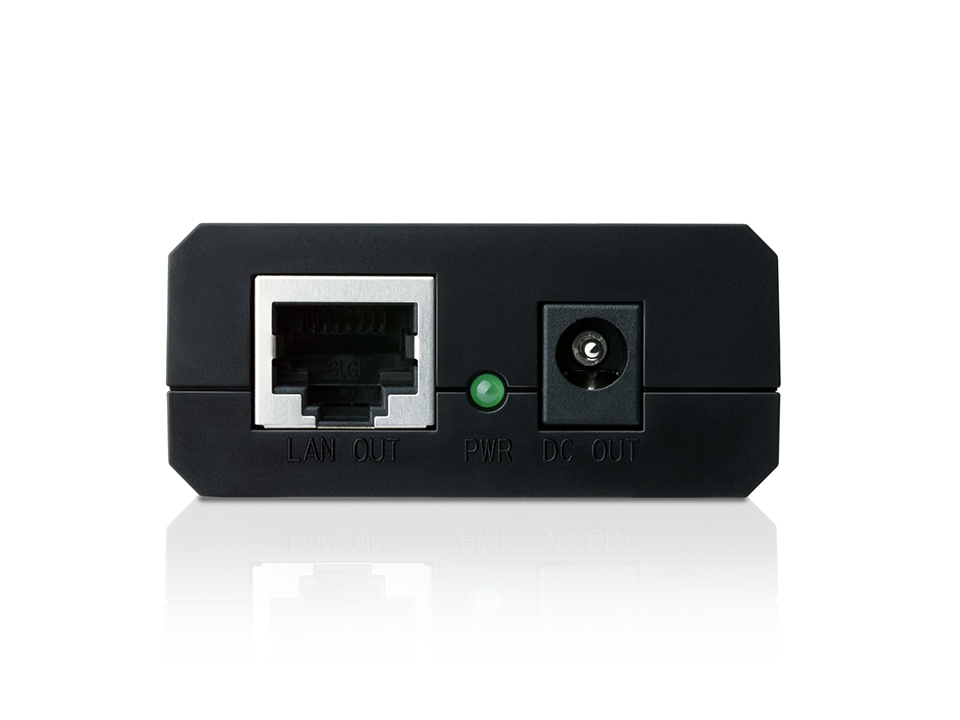

Right Side View
Right Side View
Package View
Package View


Documentation:

Download the TP-LINK TL-POE10R PoE Splitter Datasheet (PDF).
