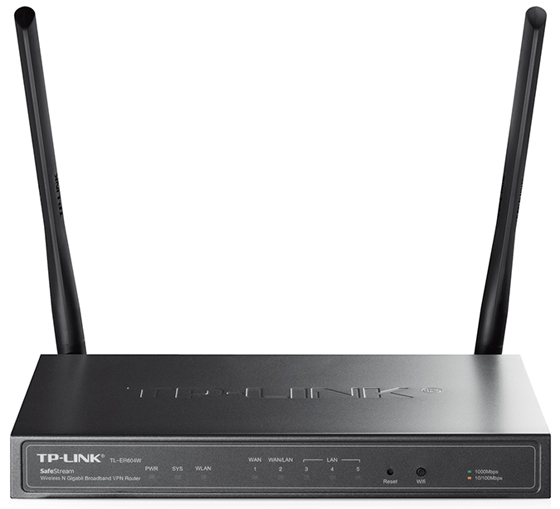

TP-LINK TL-ER604W
SafeStream Wireless N Gigabit Broadband VPN Router


TP-LINK TL-ER604W

TP-LINK Routers
TP-LINK SafeStream Wireless N Gigabit Broadband VPN Router
#TL-ER604W
Our Price: $115.00

More pricing below, click here!

Overview:

The TL-ER604W SafeStream Wireless N Gigabit Broadband VPN Router supports wireless N speed and gigabit wired speeds on all ports. It integrates multiple VPN protocols, high-security and high-performance VPN capabilities, making it an ideal choice for branch offices in need of cost-effective secure remote connections to headquarters or remote offices. Furthermore, together with its various useful features including hardware-based Wi-Fi On/Off button, Guest Networking, App Control, and PPPoE Server functions, TL-ER604W is an ideal network solution for home or small office consumers.

  • 1 Gigabit WAN port, 3 Gigabit LAN ports and 1 Gigabit WAN/LAN port
  • Supports IPsec/PPTP/L2TP VPN protocols with up to 30 IPsec, 8 PPTP and 8 L2TP VPN tunnels simultaneously
  • Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
  • 300Mbps wireless N speed provides an incredible high speed networking experience
  • Multi-SSID and guest network ensure easy and safe wireless sharing
  • Professional 4KV lightning protection keeps your investments as safe as possible

Intelligent High-speed Connectivity

With 300Mbps 802.11n wireless and 5 Gigabit ports, the TL-ER604W is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.

Safety Minded Enterprise Investments

Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning damage up to 4KV in well-grounded connection conditions.This feature ensures that networking infrastructure investments remain as safe as possible from Mother Nature’s wrath.

Abundant Security Features

For defense against external threats, TL-ER604W features automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, TCP Scanning, Ping of Death and other related threats. For better management of the internal network, TL-ER604W allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to using specific services such as FTP, HTTP and SMTP.

Segmented Wireless Networking for Convenience and Security

TL-ER604W supports multi-SSID and guest network features.With up to 8 SSIDs, TL-ER604W can provide several distinct wireless networks for different department or user groups.Guest Network offers secure separate wireless networks for your customers and business partners for Internet access, without providing access to the internal network and potentially sensitive company information.

High VPN Performance

The TL-ER604W supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode while also being able to handle pass-through traffic. It features a built-in hardware-based VPN engine allowing the router to support and manage up to 30 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.

Features:

VPN

  • Up to 30 IPsec VPN Tunnels
  • IPsec, PPTP, L2TP, L2TP ove IPsec
  • IPsec NAT Traversal (NAT-T)
  • DES, 3DES, AES128, AES192, AES256 Encryption
  • MD5, SHA1 Authentication
  • Manual, IKE Key Management Mode
  • LAN-to-LAN, Client-to-LAN IPsec VPN
  • PPTP/L2TP VPN Server/Client
  • NetBIOS passthrough for L2TP/PPTP

Security

  • One-to-One NAT
  • FTP/H.323/SIP/IPsec/PPTP ALG
  • IM/P2P Application Blocking
  • URL/Keywords Filtering
  • Web Content Filtering (Java, ActiveX, Cookies)
  • ARP Inspection
  • DoS/DDoS Defense
  • CSRF Defense

Wireless

  • IEEE 802.11b/g/n
  • Wireless Security
  • Multi-SSID
  • Guest Network

Load Balance

  • Intelligent Load Balance
  • Policy Routing
  • Link Backup (Timing, Failover)

Traffic Control

  • IP-based Bandwidth Control
  • Guarantee & Limited Bandwidth
  • IP-based Session Limit

Others

  • Port VLAN, Port Mirror
  • Static Routing, RIP v1/v2
  • PPPoE Server
  • E-Bulletin
  • IPTV

Specifications:

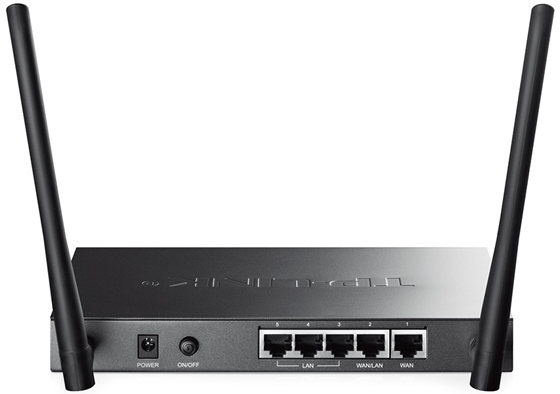

Rear View

TL-ER604W Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.11b/g/n, 802.3, 802.3u, 802.3ab
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP, SSL, HTTPS
Interface
  • 1 Gigabit WAN port
  • 3 Gigabit LAN ports
  • 1 Gigabit WAN/LAN port
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • 1000BASE-T: UTP category 5, 5e cable (Max 100m)
Fan Quantity Fanless
Button Power On/Off, Wi-Fi On/Off, Reset
Power Supply External Power Adapter (output: 12VDC/1.0A)
Dimensions ( W x D x H ) 8.2 x 5.0 x 1.0 in.(209 x 126 x 26 mm)
Antenna 2 detachable 5dBi antennas
Flash 8MB
DRAM 64MB (DDRII)
LED PWR, SYS, WLAN, WAN, WAN/LAN, LAN
Performance
Concurrent Session 10000
NAT Throughput 160Mbps
IPsec VPN Throughput (3DES) 38Mbps
Wireless Features
Frequency 2.4-2.4835 GHz
Transmit Power <20dBm (EIRP)
Wireless Functions Enable/Disable wireless radio, WDS bridge, WMM, Wireless statistics
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Guest Network Yes
Multi-SSID Up to 8 SSIDs
Basic Functions
DHCP
  • DHCP Server/Client
  • DHCP Reservation
Switch Setting
  • Port Mirror
  • Rate Control
  • Port Config
  • Port VLAN
WAN Connection Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
MAC Clone Modify WAN/LAN/DMZ MAC Address
IPTV
  • IGMP Proxy
  • IGMP Snooping
Advanced Functions
Load Balance
  • Intelligent Load Balance
  • Policy Routing
  • Protocol Binding
  • Link Backup (Timing, Failover)
  • Online Detection
NAT
  • One-to-One NAT
  • Multi-nets NAT
  • Virtual Server
  • Port Triggering
  • UPnP
  • FTP/H.323/SIP/IPsec/PPTP ALG
Routing
  • Static Routing
  • Dynamic Routing (RIP v1/v2)
System Mode NAT, Non-NAT, Classical Routing
Traffic Control
  • IP-based Bandwidth Control
  • Guarantee & Limited Bandwidth
  • Time-scheduled Policy
  • IP-based Session Limit
VPN
L2TP VPN
  • 8 L2TP VPN Tunnels
  • L2TP VPN Server/Client
  • L2TP over IPsec
  • NetBIOS passthrough
VPN Pass-through IPsec (ESP), PPTP, L2TP
IPsec VPN
  • 30 IPsec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • MD5, SHA1 Authentication Algorithm
  • Manual, IKE Key Management Mode
  • IPsec NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
PPTP VPN
  • 8 PPTP VPN Tunnels
  • PPTP VPN Server/Client
  • PPTP with MPPE Encryption
  • NetBIOS passthrough
Security
ARP Inspection
  • Sending GARP Packets
  • ARP Scanning by WAN/LAN
  • IP-MAC Binding
Attack Defense
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
  • CSRF Defense
Filtering
  • MAC Filtering
  • URL/Keywords Filtering
  • Web Content Filtering (Java, ActiveX, Cookies)
  • Local Access Control
Management
Service
  • PPPoE Server
  • E-Bulletin
  • Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
  • Web/CLI/Telnet Management Interface
  • Remote Management
  • Export & Import Configuration
  • NTP Synchronize
  • Syslog Support
  • SNMP
  • IP NAT Table
Others
Certification CE, FCC, RoHS
Package Contents
  • Wireless VPN Router
  • Resource CD
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
System Requirements Microsoft Windows 8/7/Vista/XP/2000, MAC OS, Linux-based operating System
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK TL-ER604W VPN Router Datasheet (PDF).
