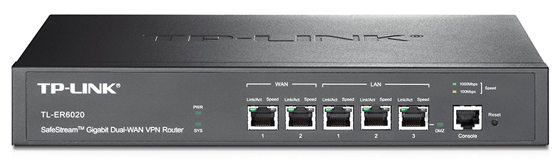

TP-LINK TL-ER6020
SafeStream Gigabit Dual-WAN VPN Router


TP-LINK TL-ER6020

TP-LINK Routers
TP-LINK SafeStream Gigabit Dual-WAN VPN Router
#TL-ER6020
Our Price: $148.00

More pricing below, click here!

Overview:

The TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router from TP-LINK possesses excellent data processing capabilities and multiple powerful functions including IPsec/PPTP/L2TP VPN, Load Balance, Access Control, IM/P2P Blocking, DoS Defense, Bandwidth Control, Session Limit, PPPoE Server and so on, which consumedly meet the needs of small and medium enterprises, hotels and communities with large volumes of users demanding an efficient and easy-to-manage network with high security.

  • 2 Gigabit WAN ports, 2 Gigabit LAN ports, 1 Gigabit LAN/DMZ port and a console port
  • Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
  • Supports up to 50 IPsec VPN tunnels with a hardware-based VPN engine
  • Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
  • Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
  • Professional 4kV lightning protection keeps your investments as safe as possible

Optimizing Bandwidth Usage

The TL-ER6020 features two WAN ports, allowing the router to satisfy various Internet access requirements through one device. The Intelligent Load Balancing function can distribute data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. With IP-based Bandwidth Control and Session Limit functions, network administrators can flexibly manage network bandwidth to optimize bandwidth usage.

Safety Minded Enterprise Investments

Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of mother nature's more violent situations.

Abundant Security Features

For defense against external threats, TL-ER6020 features an automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, TCP Scanning, Ping of Death and other related threats. Moreover, this router offers a hardware DMZ port, which allows you to setup public servers without exposing your internal network, to avoid attacks from external threats. For better management of the internal network, TL-ER6020 allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to use specific services such as FTP, HTTP and SMTP.

High VPN Performance

The TL-ER6020 supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode and can handle pass-through traffic as well. It also features a built-in hardware-based VPN engine allowing the router to support and manage up to 50 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.

Features:

VPN

  • Up to 50 IPsec VPN Tunnels
  • IPsec, PPTP, L2TP, L2TP ove IPsec
  • IPsec NAT Traversal (NAT-T)
  • DES, 3DES, AES128, AES192, AES256 Encryption
  • MD5, SHA1 Authentication
  • Manual, IKE Key Management Mode
  • LAN-to-LAN, Client-to-LAN IPsec VPN
  • PPTP/L2TP VPN Server/Client

Security

  • Hardware DMZ port
  • One-to-One NAT
  • FTP/H.323/SIP/IPsec/PPTP ALG
  • IM/P2P Application Blocking
  • URL/Keywords Filtering
  • Web Content Filtering (Java, ActiveX, Cookies)
  • ARP Inspection
  • DoS/DDoS Defense

Load Balance

  • Intelligent Load Balance
  • Policy Routing
  • Link Backup (Timing, Failover)

Traffic Control

  • IP-based Bandwidth Control
  • Guarantee & Limited Bandwidth
  • IP-based Session Limit

Others

  • Port VLAN, Port Mirror
  • Static Routing, RIP v1/v2
  • PPPoE Server
  • E-Bulletin

Specifications:


TL-ER6020 Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.3, IEEE802.3u, IEEE802.3ab
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface
  • 2 Gigabit WAN ports
  • 2 Gigabit LAN ports
  • 1 Gigabit LAN/DMZ port
  • 1 Console Port (RJ-45 On RS232)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Fan Quantity Fanless
Button Reset Button
Power Supply
  • Internal Universal Power Supply
  • AC100-240V~ 50/60Hz Input
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7in. (294 x 180 x 44mm)
13-inch Standard Rack-Mount Width, 1U Height
Flash 16MB
DRAM DDRII 128MB
LED PWR, SYS, Link/Act, Speed, DMZ
Performance
Concurrent Session 30000
NAT Throughput 180Mbps
IPsec VPN Throughput (3DES) 80Mbps
Basic Functions
DHCP
  • DHCP Server/Client
  • DHCP Reservation
Switch Setting
  • Port Mirror
  • Rate Control
  • Port Config
  • Port VLAN
WAN Connection Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
MAC Clone Modify WAN/LAN/DMZ MAC Address
Advanced Functions
Load Balance
  • Intelligent Load Balance
  • Policy Routing
  • Protocol Binding
  • Link Backup (Timing, Failover)
  • Online Detection
NAT
  • One-to-One NAT
  • Multi-nets NAT
  • Virtual Server, DMZ Host, Port Triggering, UPnP
  • FTP/H.323/SIP/IPsec/PPTP ALG
Routing
  • Static Routing
  • Dynamic Routing (RIP v1/v2)
System Mode NAT, Non-NAT, Classical Routing
Traffic Control
  • IP-based Bandwidth Control
  • Guarantee & Limited Bandwidth
  • Time-scheduled Policy
  • IP-based Session Limit
VPN
L2TP VPN
  • 16 L2TP VPN Tunnels
  • L2TP VPN Server/Client
  • L2TP over IPsec
VPN Pass-through IPsec (ESP), PPTP, L2TP
IPsec VPN
  • 50 IPsec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • MD5, SHA1 Authentication Algorithm
  • Manual, IKE Key Management Mode
  • IPsec NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
PPTP VPN
  • 16 PPTP VPN Tunnels
  • PPTP VPN Server/Client
  • PPTP with MPPE Encryption
Security
ARP Inspection
  • Sending GARP Packets
  • ARP Scanning by WAN/LAN
  • IP-MAC Binding
Attack Defense
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
Filtering
  • MAC Filtering
  • URL/Keywords Filtering
  • Web Content Filtering (Java, ActiveX, Cookies)
DMZ Port 1 Hardware DMZ Port
Application Control IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking
Management
Service
  • PPPoE Server
  • E-Bulletin
  • Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
  • Web/CLI/Telnet Management Interface
  • Remote Management
  • Export & Import Configuration
  • NTP Synchronize
  • Syslog Support
Others
Certification CE, FCC, RoHS
Package Contents
  • VPN Router
  • Resource CD
  • Power Cord
  • Ground Cable
  • Rack-mount Kit
  • Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK TL-ER6020 VPN Router Datasheet (PDF).
