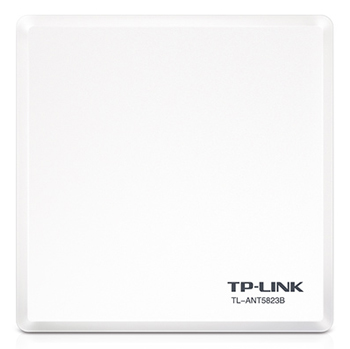

TP-LINK TL-ANT5823B
5GHz 23dBi Outdoor Panel Antenna


TP-LINK TL-ANT5823B

TP-LINK Wireless Antennas and Accessories
TP-LINK 5GHz 23dBi Outdoor Panel Antenna
#TL-ANT5823B
Our Price: $61.00

More pricing below, click here!

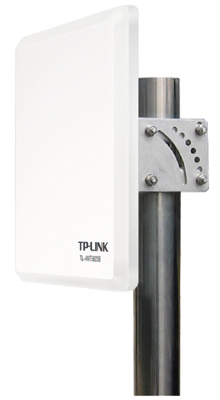

TL-ANT5823B on the poleOverview:

The TL-ANT5823B 5GHz 23dBi outdoor panel antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no con­figuration or software installation required.

  • Compliant with 802.11a/n, 5GHz wireless application
  • 23dBi signal gain
  • Direction operation
  • N Type Female connector
  • Provided mounting kits enable easy installation for various environments

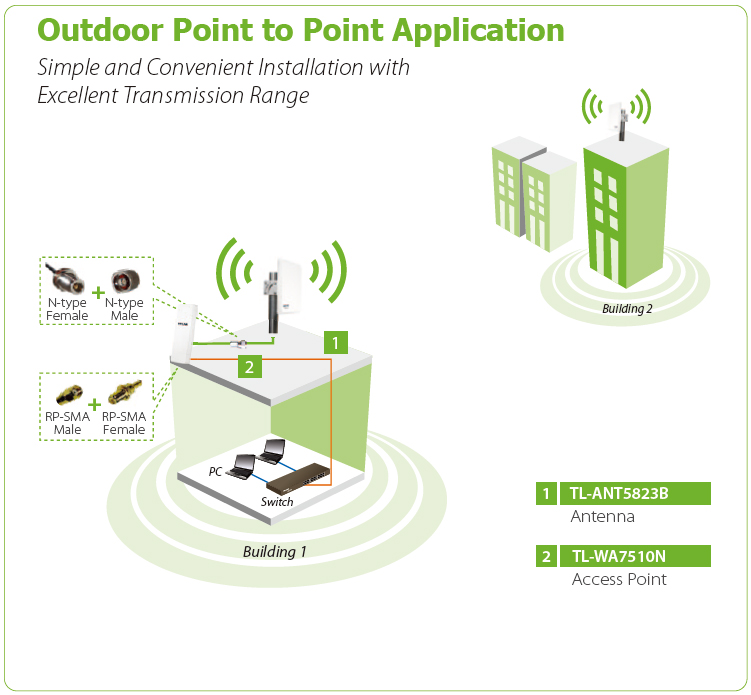

Diagram:

TL-ANT5823B Diagram

Specifications:


TL-ANT5823B Specifications
Frequency 5.15~5.85GHz
Gain (Exclude Cable Loss) 23dBi
VSWR (MAX.) 1.5
Polarization Vertical or Horizontal
Beamwidth (HPBW)
  • Horizontal: 12°
  • Vertical: 12°
F/B Ratio >28dB
Impedance 50 Ohms
Maximum Input Power 100W
Interfaces N Female
Mounting Mast Diameter Ø30~Ø50 mm
Mounting Pole Mount / Wall Mount
Survival Wind Speed 241Km/hr
Radome Material ABS
Standards RoHS, WEEE
Dimensions (L x W x H mm) 320 x 320 x 20 (mm)
Environment Operating Temperature: -10°C~60°C (14°F~140°F)
Storage Temperature: -40°C~80°C (-40°F~176°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
  • 5GHz 23dBi Outdoor Panel Antenna
  • Installation mounting kits
  • Quick Installation Guide

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT5823B Datasheet (PDF).
