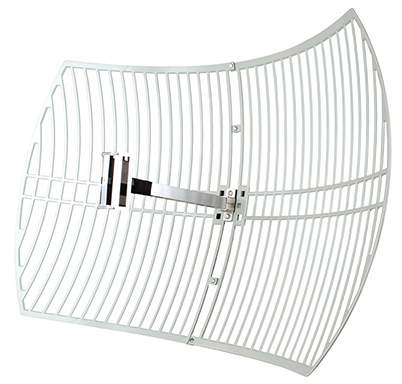

TP-LINK TL-ANT2424B
2.4GHz 24dBi Grid Parabolic Antenna


TP-LINK TL-ANT2424B

TP-LINK Wireless Antennas and Accessories
TP-LINK 2.4GHz 24dBi Grid Parabolic Antenna
#TL-ANT2424B
Our Price: $51.00

More pricing below, click here!

Overview:

The TL-ANT2424B 24dBi directional antenna is ideal for outdoor use by attaching to your wireless access points/routers. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no conguration or software installation required. Grid parabolic antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 56 km (34.8 miles).

  • 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
  • Weather proof design, suitable for all weather conditions
  • N Female connector, applicable in most outdoor solutions
  • Provides easy installation mounting kits

Easy To Use

Installation of the TL-ANT2424B is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

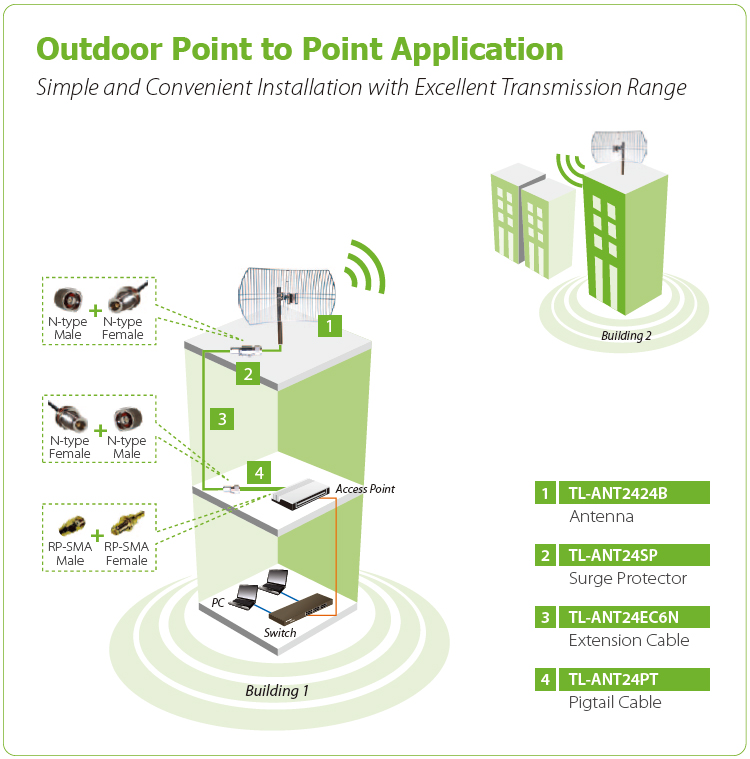

Diagram:

TL-ANT2424B Diagram

Specifications:


TL-ANT2424B Specifications
Frequency 2.4~2.4835GHz
Gain (Exclude Cable Loss) 1.92 : 1 Max
VSWR Linear, Vertical
Beamwidth (HPBW)
  • Horizontal: 10°
  • Vertical: 14°
F/B Ratio >30dB
Impedance 50 Ohms
Admitted Power 100W
Interfaces N Female (Jack)
Polarization Vertical or Horizontal
Mounting Mast Diameter Ø30~Ø50 mm
Mounting Wall Mount / Pole Mount
Survival Wind Speed 216Km/hr (134Miles/hr)
Environment Operating Temperature: -10°C~60°C (14°F~140°F)
Storage Temperature: -40°C~80°C (-40°F~176°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Standards RoHS, WEEE
Package Contents
  • 24dBi Grid Parabolic Antenna
  • Installation mounting kits
  • User Guide

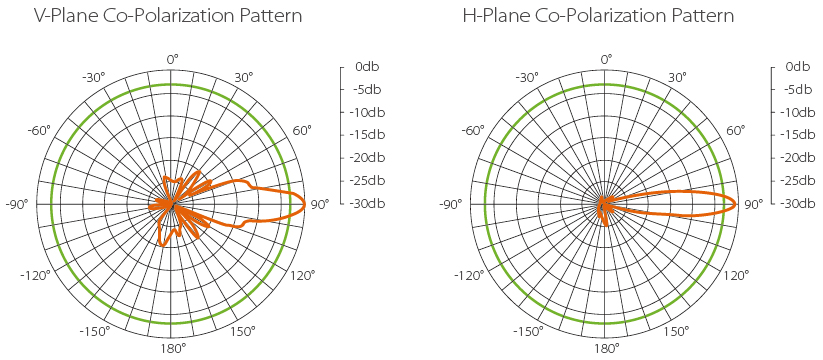

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT2424B Datasheet (PDF).
