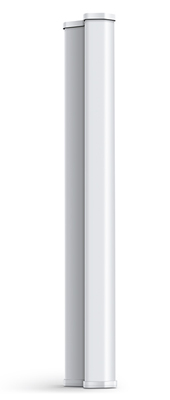

TP-LINK TL-ANT2415MS
2.4G 15dBi 2x2 MIMO Sector Antenna


TP-LINK TL-ANT2415MS

TP-LINK Wireless Antennas and Accessories
TP-LINK 2.4G 15dBi 2x2 MIMO Sector Antenna
#TL-ANT2415MS
Contact us for pricing!

More pricing below, click here!

Overview:

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

  • High gain directional operation, wide coverage, ideal for Point to Multi-Point connections.
  • Easy Installation, seamlessly integrated with the Pharos Base Station WBS210
  • MIMO technology
  • Weatherproof design offers protection in harsh environments

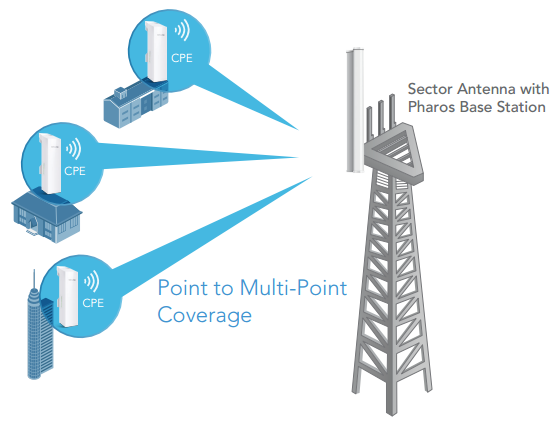

Scenarios/Topology

A TL-ANT5819MS or TL-ANT2415MS, installed with a Pharos Base Station, is ideal for supporting large area Point-to-Multipoint data transmission. When installed alongside a Pharos Base Station, the TL-ANT2415MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.

Scenarios/Topology

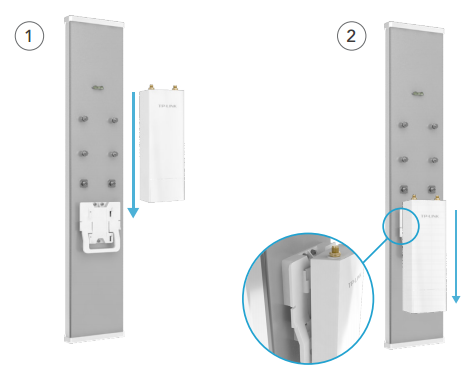

Easy Installation

TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Easy Installation

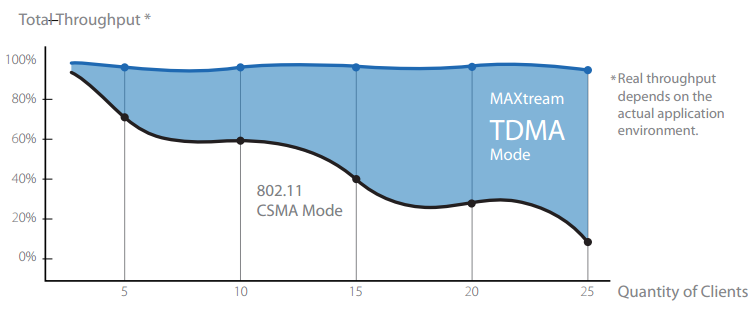

MAXtream TDMA Protocol

As networks grow in scale, wireless devices often compete for access to a single data connection, resulting in diminished throughput and an inferior experience for the end-user. Pharos Series devices utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.

MAXtream TDMA Protocol

Pharos Control

Pharos Control is a centralized management software that allows users to easily manage network devices from any PC on the network. It provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device rmware, or perform other network maintenance tasks.

Pharos Control - Centralized Management System

PharOS

PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform ne-tune calibrations and access more advanced conguration options.

PharOS

Specifications:


TL-ANT2415MS Specifications
Frequency 2.3 - 2.7GHz
Impedance 50Ω
Gain 15dBi (Exclude Cable Loss)
VSWR (MAX.) 1.8 Max
HPOL Beamwidth 120° (6dB) & 90° (3dB)
VPOL Beamwidth 120° (6dB) & 90° (3dB)
Elevation Beamwidth
Polarization Horizontal & Vertical
Mounting Pole Mount
Electrical Downtilt
F/B Ratio 25dB Min
Survival Wind Speed 241km/h
Standards RoHS, WEEE
Interfaces RP-SMA
Dimension Product Size: 700 x 133 x 57mm
Package Size: 1030 x 185 x 140mm

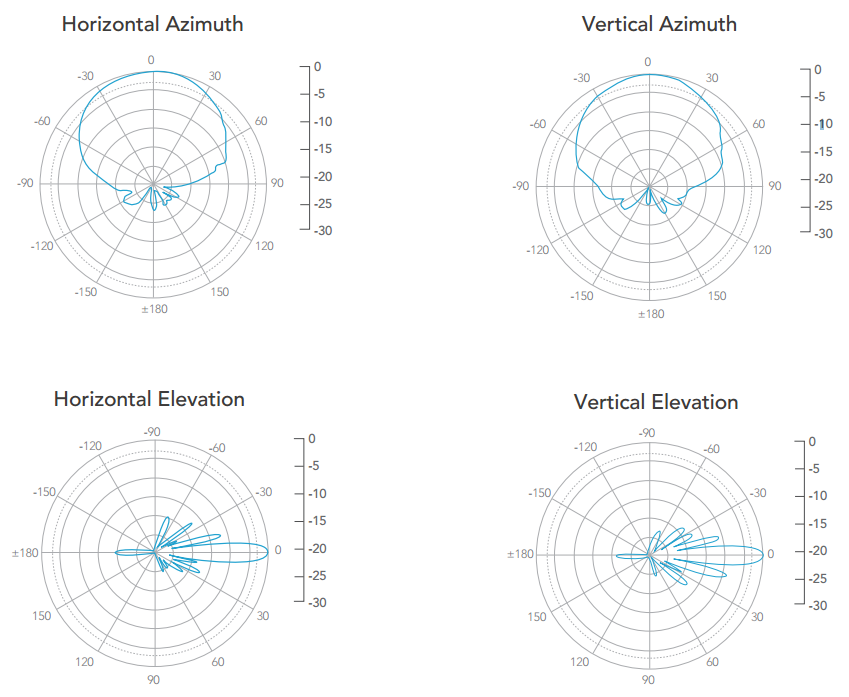

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT2415MS and TL-ANT5819MS Datasheet (PDF).
