Overview:

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30°C (-22°F) to +70°C (158°F).

Advanced Antenna System

  • Built-in High Gain Dual-Polarized Antenna
  • Dedicated metal reflector ensures higher gain and lower noise interference

20km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 20km+, tested in the field.

Advanced TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

Advanced TP-LINK MAXtream TDMA Technology

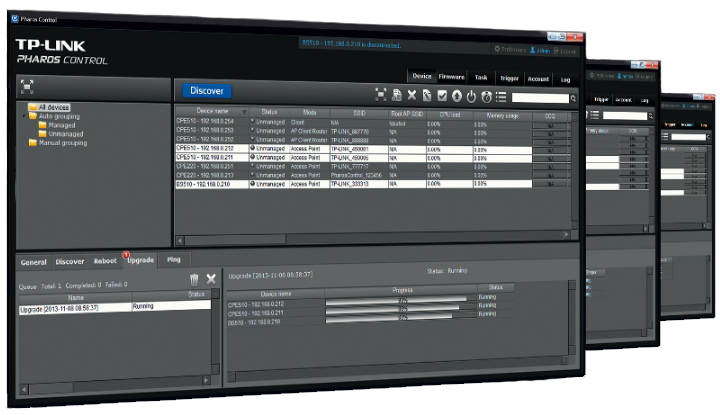

Pharos Control – Centralized Management System

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Pharos Control - Centralized Management System

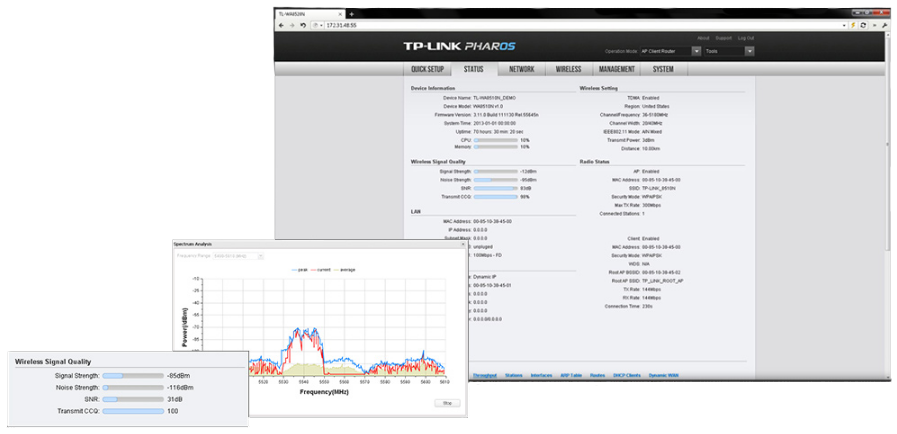

PharOS

User-friendly web-based management system allows professionals to do more specic congurations.

PharOS

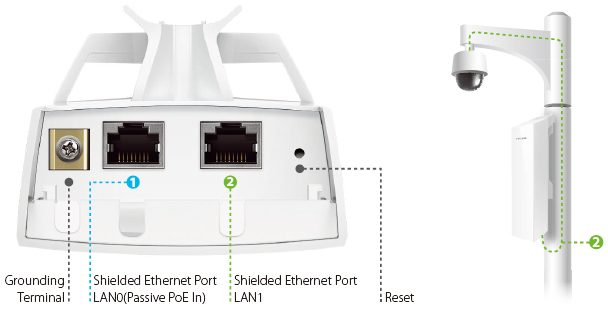

Professional Outdoor Design

  • Weatherproof enclosure with pole mounting design
  • Secondary Ethernet port with software enabled PoE output allows for seamless IP camera connectivity.
  • Shielded Ethernet ports and grounding terminal provide double protections against ESD attacks

Professional Outdoor Design

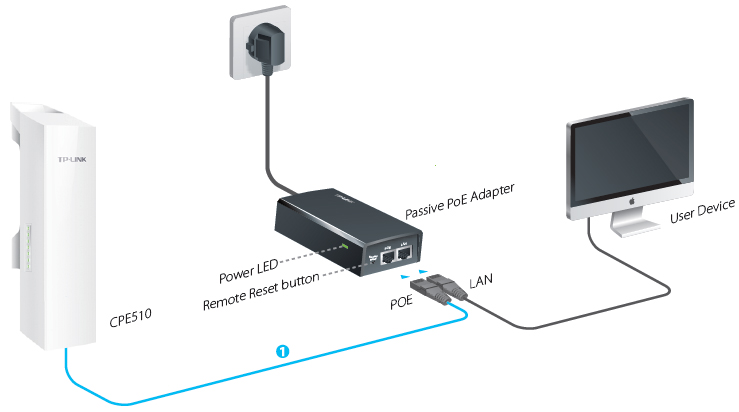

Easy Deployment and Maintenance

Passive PoE adapter makes installation easier, and its Remote Reset button allows for device to be reset remotely from power supply location.

Easy Deployment and Maintenance

Features:

CPE510 Features

  • Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for more than 13km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
  • Outdoor stabilized enclosure with IPX5 waterproof certification
  • Dual Ethernet ports and grounding terminal integrated
  • 6000V Lightning Protection, 15KV ESD Protection
  • Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
  • Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
  • Selectable bandwidth of 5/10/20/40MHz
  • Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
  • Easy antenna alignment with wireless signal quality indicators via Web interface

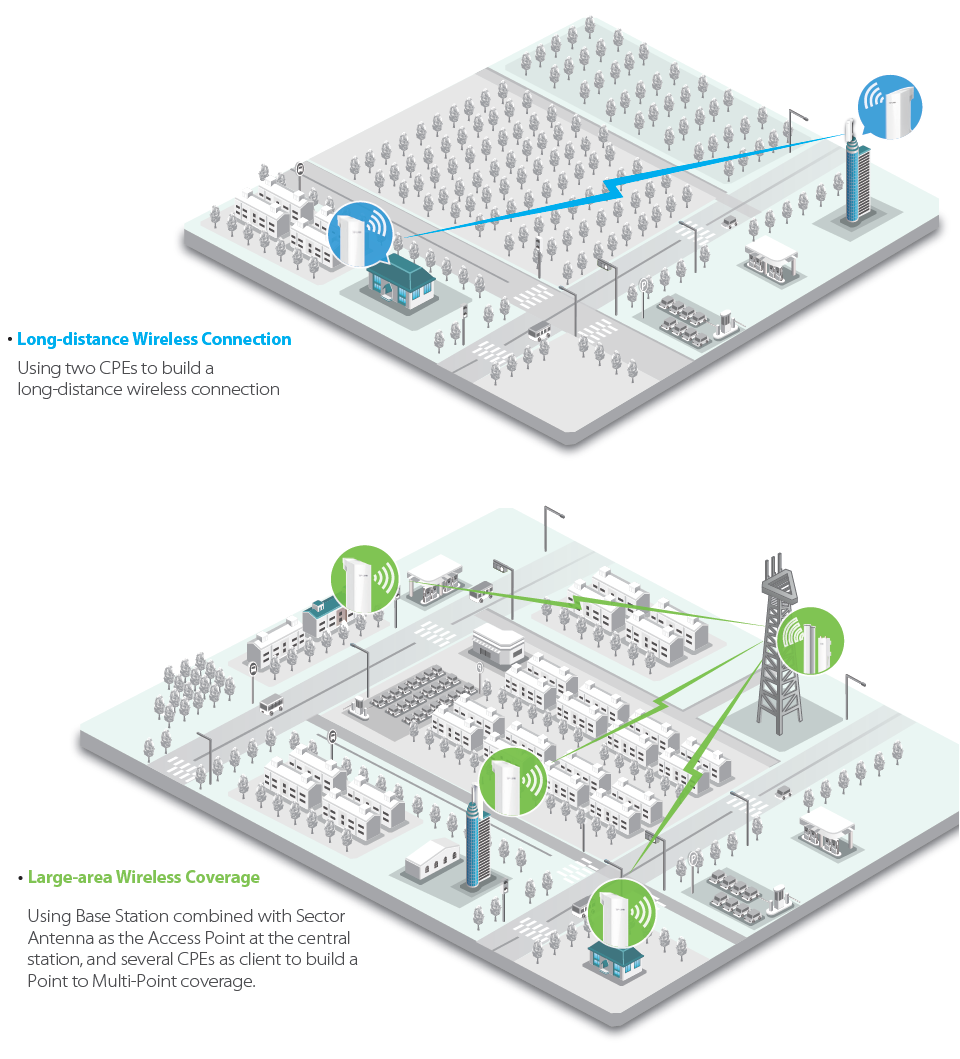

Typical Applications:

TP-LINK’s Outdoor CPE is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is exible and ideal for point-to-point and point-to-multipoint applications.

Typical Applications

Specifications:


CPE220 Specifications
Hardware Features
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface
  • 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
  • 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
  • 1 Grounding Terminal
  • 1 Reset Button
Power Supply
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
Dimensions (W x D x H) 11 x 3.1 x 2.1 inch (276 x 79 x 60mm)
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna Type
  • Built-in 12dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 60° (H-Plane) / 30° (E-Plane)
Protection
  • 15KV ESD Protection
  • 6000V Lightning Protection
Enclosure
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification
Wireless Features
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Software Features
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • 802.11b/g/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • > Beacon Interval/RTS Threshold/Fragmentation
  • >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
System-level Optimizations
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog
PoE Adapter Features
Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
Efficiency >80%
Button Remote Reset Button
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Power Status LEDs
  • 0~0.8A: Green
  • 0.8A~1.0A: Red
Output
  • 24VDC, 1.0A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Dimensions (W x D x H) 110 x 57 x 33.5mm
Input Current 0.8A Max @ 100VAC
Input 100-240VAC, 50/60Hz
Output Voltage 24VDC (+4,5pins; -7,8pins)
Others
Certification CE, FCC, RoHS, IPX5
Package Contents
  • Outdoor Wireless CPE
  • 24V 1A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -30°C~70°C (-22°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

RF Performance:


802.11b 802.11g 802.11n
Data Rates Tx Power Rx Sensitivity Data Rates Tx Power Rx Sensitivity Data Rates Tx Power Rx Sensitivity
1Mbps 27 -96 6-24Mbps 27 -88 MCS0 27 -96
2Mbps 27 -96 36Mbps 27 -84 MCS1 27 -93
5.5Mbps 27 -96 48Mbps 27 -80 MCS2 27 -91
11Mbps 27 -95 54Mbps 27 -79 MCS3 27 -87
            MCS4 27 -84
            MCS5 27 -80
            MCS6 27 -78
            MCS7 26 -76
            MCS8 27 -96
            MCS9 27 -93
            MCS10 27 -91
            MCS11 27 -87
            MCS12 27 -84
            MCS13 27 -80
            MCS14 27 -78
            MCS15 27 -76

Views:

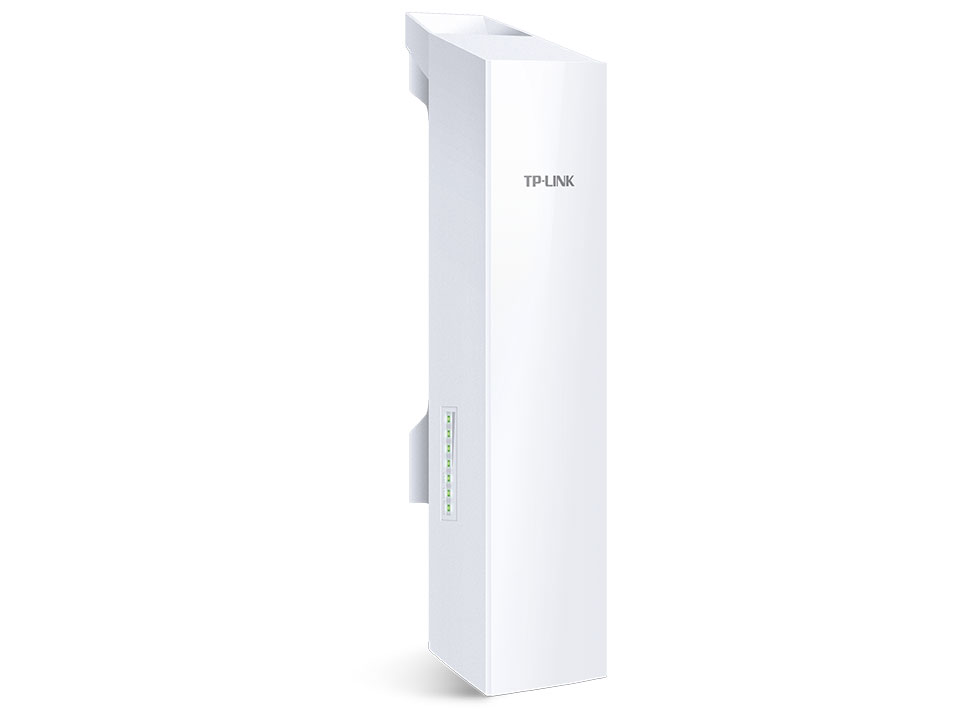

Left Angle View
Left Angle View

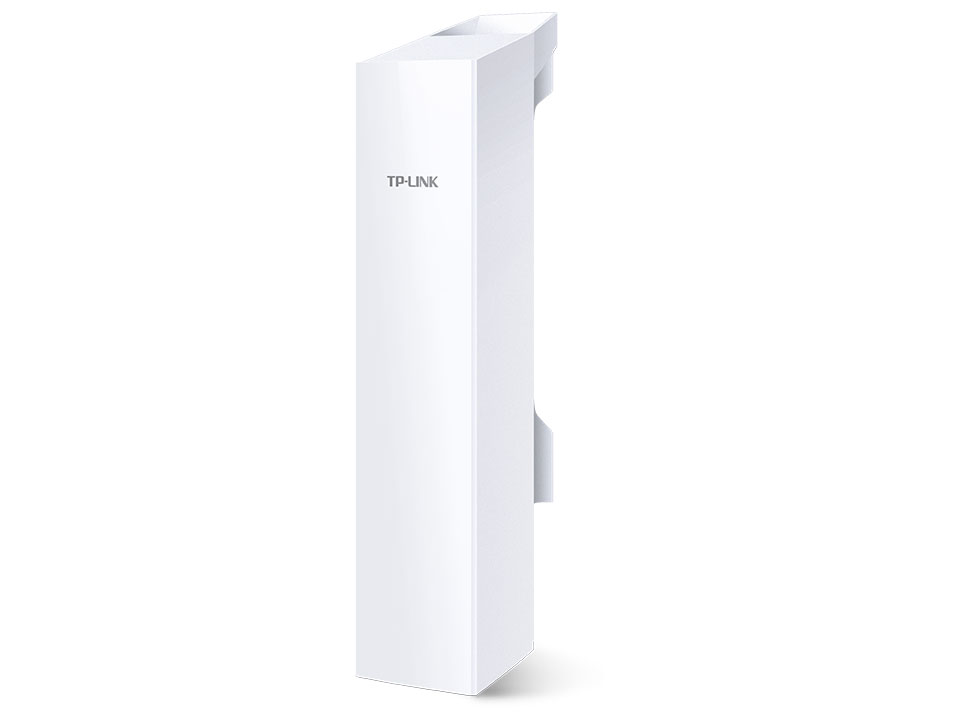

Right Angle View
Right Angle View

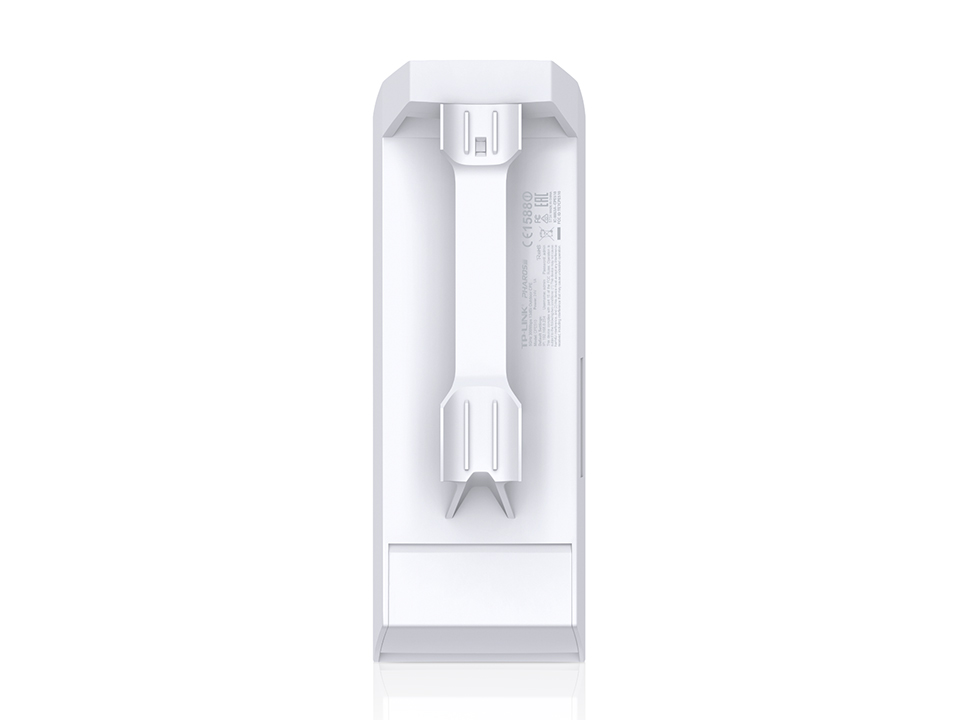

Rear View
Rear View

Compare:


  CPE520 CPE510 CPE220 CPE210 TL-WA7510N TL-WA7210N
Wireless Performance
Wireless Speed 5GHz 300Mbps 5GHz 300Mbps 2.4GHz 300Mbps 2.4GHz 300Mbps 5GHz 150Mbps 2.4GHz 150Mbps
Transmit Power 27dBm 23dBm 30dBm 27dBm 27dBm 27dBm
Antenna 16dBi 13dBi 12dBi 9dBi 15dBi 12dBi
MIMO - -
Coverage Range 20km+ 15km+ 13km+ 5km+ 5km+ 5km+
Hardware
Compatibility 802.11a/n 802.11a/n 802.11b/g/n 802.11b/g/n 802.11a/n 802.11b/g/n
External Antenna Interface - - - - 1 x RP-SMA 1 x RP-SMA
Weatherproof Enclosure  (IPX5)  (IPX5)  (IPX5)  (IPX5)
Dual Ethernet Ports - -
PoE Passthrough - -
Grounding Terminal
Lightning Protection over Ethernet Cable - -
ESD Protection 15kV 15kV 15kV 15kV 15kV 15kV
Lightning Protection 6kV 6kV 6kV 6kV 4kV 4kV
Power Supply 24V Passive PoE Adapter 24V Passive PoE Adapter 24V Passive PoE Adapter 24V Passive PoE Adapter 12V Power Adapter + Passive PoE Injector 12V Power Adapter + Passive PoE Injector
Software
Operation Modes AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode
Channel Bandwidth 5/10/20/40MHz 5/10/20/40MHz 5/10/20/40MHz 5/10/20/40MHz 20/40MHz 20/40MHz
Transmit Power Control Stepping 1dBm Stepping 1dBm Stepping 1dBm Stepping 1dBm Stepping 3dBm Stepping 3dBm
Antenna Alignment - -
Throughtput Monitors - -
Spectrum Analyzer - -
Iperf Speed Test Tool - -
Pharos Control Supported
(Central Network Management Application)
- -

Documentation:

Download the TP-LINK Outdoor CPE Series Datasheet (PDF).
